Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

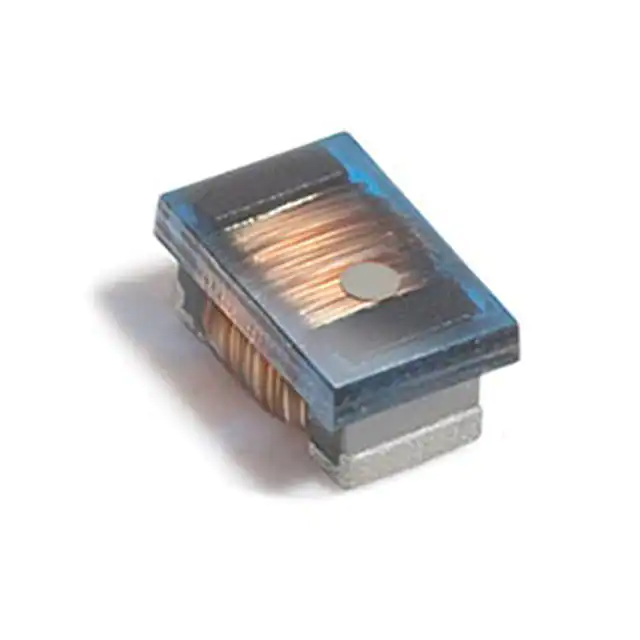

0603AF-72NXJRWFIXED IND 72NH 1.5A 65 MOHM SMD Coilcraft |
196,982 |
|
Datasheet |
 |
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 72 nH | ±5% | 1.5 A | - | Unshielded | 65mOhm Max | 15 @ 7.9MHz | 1.8GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
0805LS-111XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
196,196 |
|
Datasheet |
|
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 110 nH | ±5% | 2 A | - | Unshielded | 50mOhm Max | 19 @ 7.9MHz | 1.2GHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
|
0805LS-272XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
190,032 |
|
Datasheet |
|
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 2.7 µH | ±5% | 350 mA | - | Unshielded | 1.48Ohm Max | 20 @ 7.9MHz | 105MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
0603LS-471XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
161,572 |
|
Datasheet |
|
0603LS | 0603 (1608 Metric) | Strip | Active | - | Ceramic, Ferrite | 470 nH | ±5% | 420 mA | - | Unshielded | 620mOhm Max | 15 @ 7.9MHz | 540MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.044" (1.11mm) |
|
|
0603AF-472XJRWFIXED IND 4.7UH 260MA 1.5OHM SMD Coilcraft |
137,765 |
|
Datasheet |
|
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 4.7 µH | ±5% | 260 mA | - | Unshielded | 1.5Ohm Max | 16 @ 7.9MHz | 60MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-151XJRWFIXED IND 150NH 1.5A 93MOHM SMD Coilcraft |
104,110 |
|
Datasheet |
|
0603AF | Nonstandard | Strip | Active | Wirewound | Ferrite | 150 nH | ±5% | 1.5 A | - | Unshielded | 93mOhm Max | 15 @ 7.9MHz | 1.05GHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-471XJRWFIXED IND 470NH 610MA 370MOHM SM Coilcraft |
107,258 |
|
Datasheet |
|
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 470 nH | ±5% | 610 mA | - | Unshielded | 370mOhm Max | 15 @ 7.9MHz | 575MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0603AF-271XJRWFIXED IND 270NH 680MA 220MOHM SM Coilcraft |
123,958 |
|
Datasheet |
|
0603AF | 0603 (1608 Metric) | Strip | Active | Wirewound | Ferrite | 270 nH | ±5% | 680 mA | - | Unshielded | 220mOhm Max | 15 @ 7.9MHz | 750MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.036" (0.91mm) |
|
|
0805LS-182XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
198,017 |
|
Datasheet |
|
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 1.8 µH | ±5% | 410 mA | - | Unshielded | 1.15Ohm Max | 20 @ 7.9MHz | 246MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
|
|
0805LS-682XJRCRF INDUCTOR, FERRITE CORE, 5% TO Coilcraft |
118,210 |
|
Datasheet |
|
0805LS | 0805 (2012 Metric) | Strip | Active | Wirewound | Ceramic, Ferrite | 6.8 µH | ±5% | 260 mA | - | Unshielded | 2.25Ohm Max | 20 @ 7.9MHz | 35MHz | AEC-Q200 | -40°C ~ 100°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.075" W (2.29mm x 1.91mm) | 0.063" (1.60mm) |
