Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4924-101KFIXED IND 100NH 3.9A 25 MOHM SMD |
156,847 |
|
Datasheet |
 |
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 3.9 A | 3.9A | Shielded | 25mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-121KFIXED IND 120NH 3.345A 34MOHM SM |
179,660 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 120 nH | ±10% | 3.345 A | 3.345A | Shielded | 34mOhm Max | 50 @ 25MHz | 425MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-151KFIXED IND 150NH 3.195A 37MOHM SM |
127,757 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 3.195 A | 3.195A | Shielded | 37mOhm Max | 50 @ 25MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-181KFIXED IND 180NH 2.835A 47MOHM SM |
199,809 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±10% | 2.835 A | 2.835A | Shielded | 47mOhm Max | 50 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
S4924-221KFIXED IND 220NH 2.385A 67MOHM SM |
115,769 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 2.385 A | 2.385A | Shielded | 67mOhm Max | 49 @ 25MHz | 325MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-271KFIXED IND 270NH 1.855A 110 MOHM |
179,420 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 1.855 A | 1.855A | Shielded | 110mOhm Max | 47 @ 25MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-331KFIXED IND 330NH 1.705A 130 MOHM |
149,793 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 1.705 A | 1.705A | Shielded | 130mOhm Max | 46 @ 25MHz | 275MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-391KFIXED IND 390NH 1.45A 180MOHM SM |
110,704 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 390 nH | ±10% | 1.45 A | 1.45A | Shielded | 180mOhm Max | 44 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-471KFIXED IND 470NH 1.235A 250 MOHM |
104,144 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 1.235 A | 1.235A | Shielded | 250mOhm Max | 44 @ 25MHz | 235MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-561KFIXED IND 560NH 1.075A 330 MOHM |
188,607 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 560 nH | ±10% | 1.075 A | 1.075A | Shielded | 330mOhm Max | 43 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

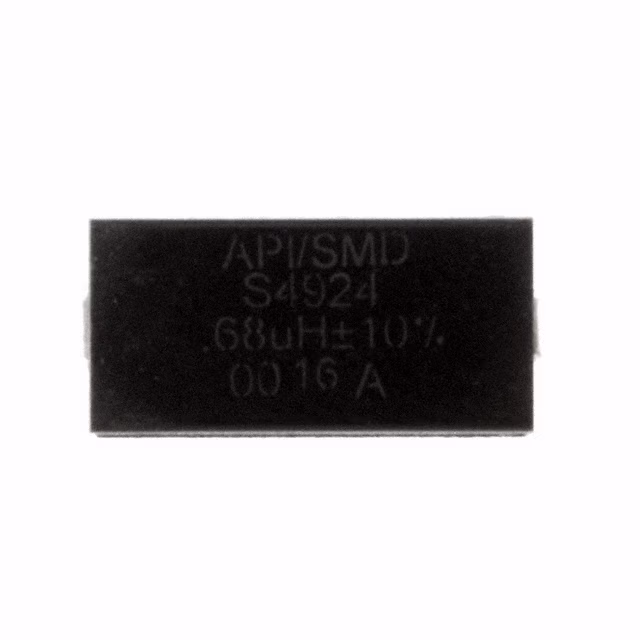

S4924-681KFIXED IND 680NH 915MA 450MOHM SM |
130,600 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 915 mA | 915mA | Shielded | 450mOhm Max | 42 @ 25MHz | 190MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-821KFIXED IND 820NH 800MA 590MOHM SM |
187,182 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 820 nH | ±10% | 800 mA | 800mA | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-102KFIXED IND 1UH 2.32A 70 MOHM SMD |
144,106 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 µH | ±10% | 2.32 A | 2.32A | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-122KFIXED IND 1.2UH 1.92A 100MOHM SM |
158,987 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.2 µH | ±10% | 1.92 A | 1.92A | Shielded | 100mOhm Max | 44 @ 7.9MHz | 130MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

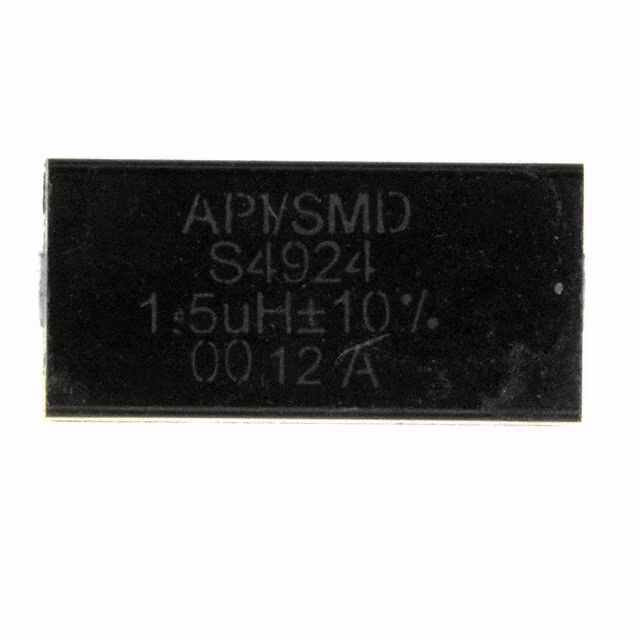

S4924-152KFIXED IND 1.5UH 1.78A 120MOHM SM |
162,617 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.5 µH | ±10% | 1.78 A | 1.78A | Shielded | 120mOhm Max | 44 @ 7.9MHz | 115MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-182KFIXED IND 1.8UH 1.65A 140MOHM SM |
136,121 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1.8 µH | ±10% | 1.65 A | 1.65A | Shielded | 140mOhm Max | 44 @ 7.9MHz | 105MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-222KFIXED IND 2.2UH 1.42A 190MOHM SM |
192,757 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 1.42 A | 1.42A | Shielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-272KFIXED IND 2.7UH 1.16A 280MOHM SM |
155,419 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 2.7 µH | ±10% | 1.16 A | 1.16A | Shielded | 280mOhm Max | 44 @ 7.9MHz | 92MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-332KFIXED IND 3.3UH 1.045A 350 MOHM |
198,825 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 3.3 µH | ±10% | 1.045 A | 1.045A | Shielded | 350mOhm Max | 44 @ 7.9MHz | 85MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-392KFIXED IND 3.9UH 970MA 400MOHM SM |
127,866 |
|
Datasheet |
|
S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 3.9 µH | ±10% | 970 mA | 970mA | Shielded | 400mOhm Max | 44 @ 7.9MHz | 75MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
