Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
10HCR-27FIXED IND 27UH 10A 18 MOHM TH |
123,572 |
|
Datasheet |
 |
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 10 A | 15A | Unshielded | 18mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.125" Dia x 0.937" L (28.58mm x 23.80mm) | - |
|
|
10HCR-5FIXED IND 5UH 10A 10 MOHM TH |
109,020 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 10 A | 19A | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.125" Dia x 0.687" L (28.58mm x 17.45mm) | - |
|
|
10HCR-50FIXED IND 50UH 10A 25 MOHM TH |
174,385 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 10 A | 9A | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.375" Dia x 0.937" L (34.93mm x 23.80mm) | - |
|
|
10HCR-68FIXED IND 68UH 10A 27 MOHM TH |
144,863 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 10 A | 9A | Unshielded | 27mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.375" Dia x 0.937" L (34.93mm x 23.80mm) | - |
|

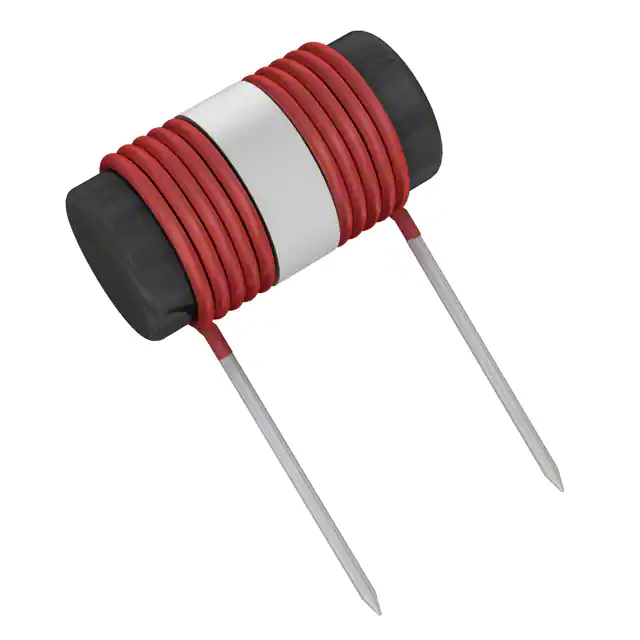

3HC-10FIXED IND 10UH 3A 18 MOHM TH |
101,161 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3 A | 17A | Unshielded | 18mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|

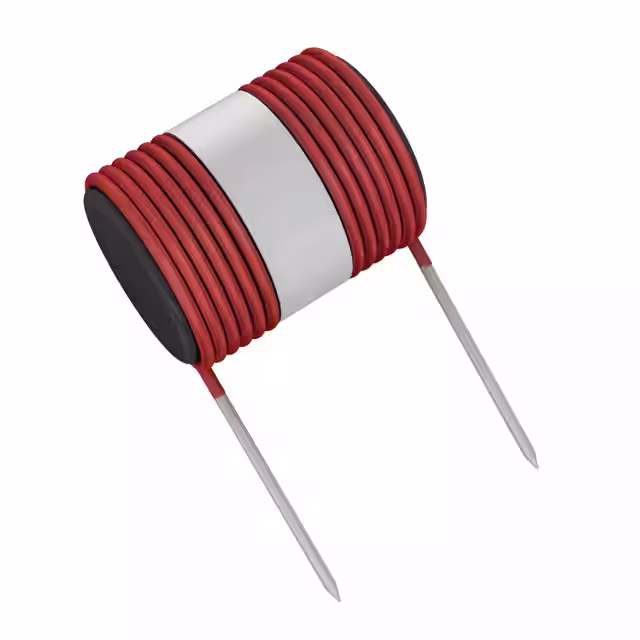

3HC-100FIXED IND 100UH 3A 65 MOHM TH |
171,216 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3 A | 8A | Unshielded | 65mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
|

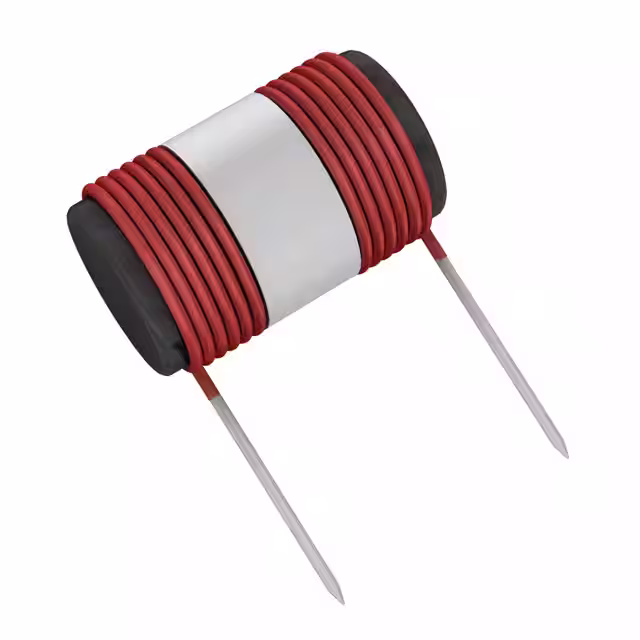

3HC-150FIXED IND 150UH 3A 75 MOHM TH |
152,596 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 3 A | 5A | Unshielded | 75mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.375" L (20.62mm x 34.93mm) | - |
|

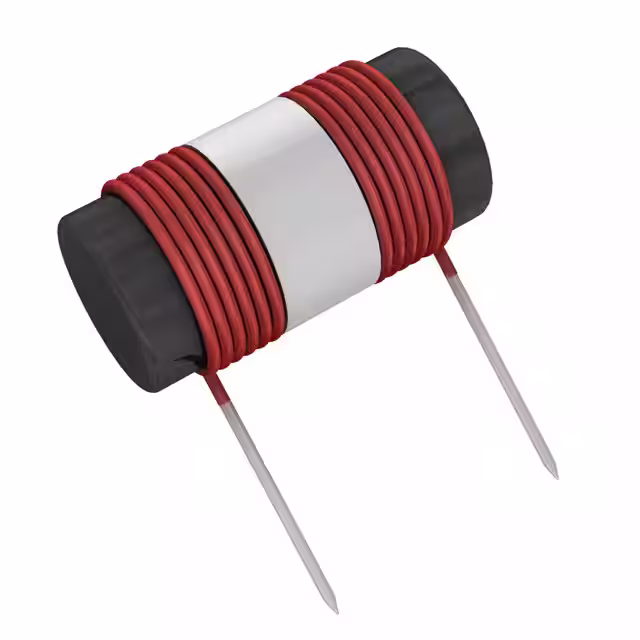

3HC-200FIXED IND 200UH 3A 80 MOHM TH |
149,333 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 3 A | 4A | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.625" L (20.62mm x 41.28mm) | - |
|
3HC-27FIXED IND 27UH 3A 35 MOHM TH |
188,875 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 0.875" L (20.62mm x 22.23mm) | - |
|
3HC-5FIXED IND 5UH 3A 15 MOHM TH |
196,377 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 3 A | 19A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
|

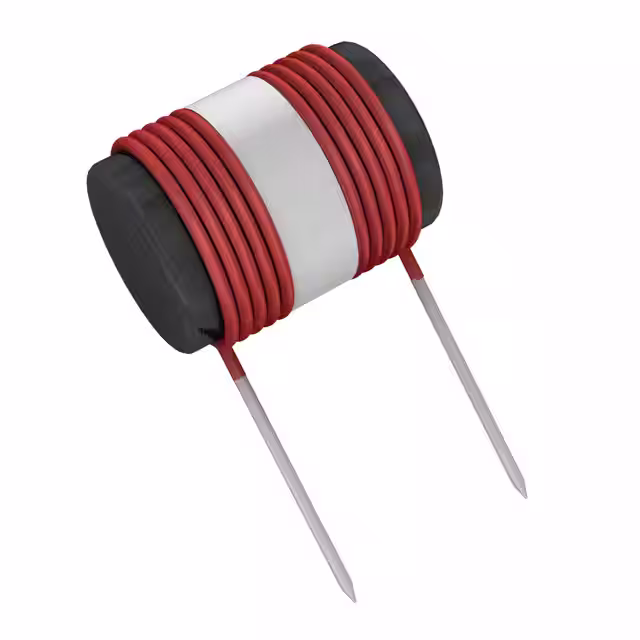

3HC-50FIXED IND 50UH 3A 50 MOHM TH |
115,258 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 3 A | 12A | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
|

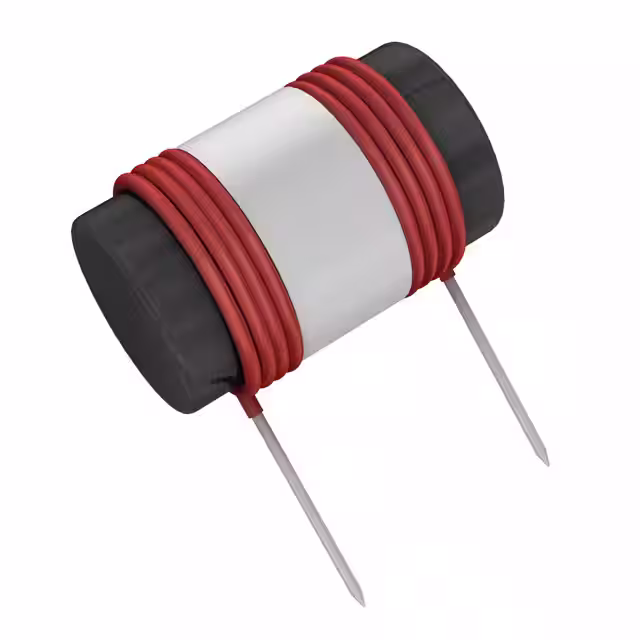

3HC-500FIXED IND 500UH 3A 130 MOHM TH |
187,161 |
|
Datasheet |
|
HC | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 3 A | 1A | Unshielded | 130mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" Dia x 1.625" L (24.13mm x 41.28mm) | - |
|
|
3HCR-10FIXED IND 10UH 3A 18 MOHM TH |
190,030 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 3 A | 17A | Unshielded | 18mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.625" Dia x 1.125" L (15.88mm x 28.58mm) | - |
|
|
3HCR-100FIXED IND 100UH 3A 65 MOHM TH |
188,667 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 3 A | 8A | Unshielded | 65mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
|
|
3HCR-150FIXED IND 150UH 3A 75 MOHM TH |
173,243 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 3 A | 5A | Unshielded | 75mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.375" L (20.62mm x 34.93mm) | - |
|
|
3HCR-200FIXED IND 200UH 3A 80 MOHM TH |
100,215 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 3 A | 4A | Unshielded | 80mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.625" L (20.62mm x 41.28mm) | - |
|
|
3HCR-250FIXED IND 250UH 3A 90 MOHM TH |
181,350 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 3 A | 3A | Unshielded | 90mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.625" L (20.62mm x 41.28mm) | - |
|
|

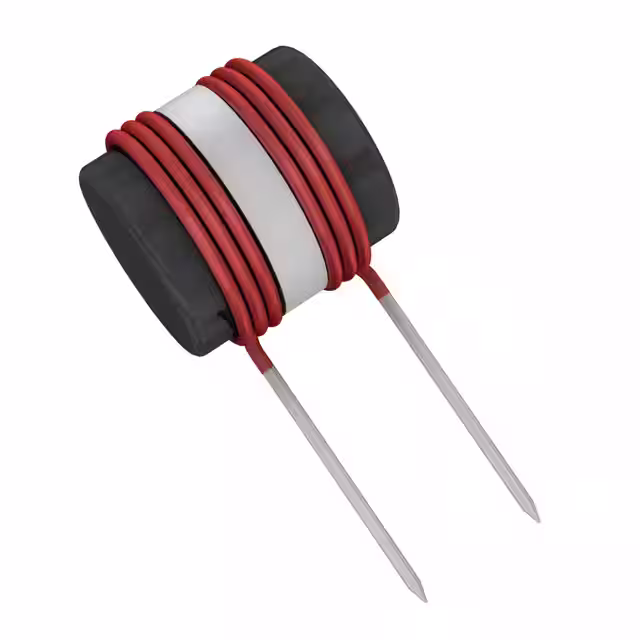

3HCR-27FIXED IND 27UH 3A 35 MOHM TH |
106,101 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 3 A | 15A | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 0.875" L (20.62mm x 22.23mm) | - |
|
|

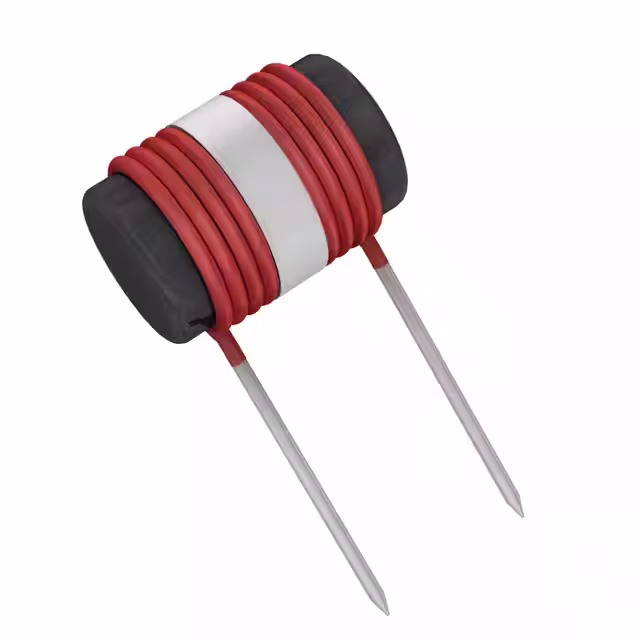

3HCR-5FIXED IND 5UH 3A 15 MOHM TH |
186,459 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 5 µH | ±10% | 3 A | 19A | Unshielded | 15mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.625" Dia x 0.875" L (15.88mm x 22.23mm) | - |
|
|
3HCR-50FIXED IND 50UH 3A 50 MOHM TH |
113,989 |
|
Datasheet |
|
HCR | Radial, Horizontal Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 3 A | 12A | Unshielded | 50mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) | - |
