Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
PG0006.102NLT FIXED IND 1UH 20A 1.75 MOHM SMD Pulse Electronics	137,046	-	RFQ	Datasheet	PG0006NL	Nonstandard	Tape & Reel (TR)	Active	-	-	1 µH	±20%	20 A	20A	Unshielded	1.75mOhm Max	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.528" L x 0.523" W (13.40mm x 13.28mm)	0.236" (6.00mm)
DLH-14-0001 FIXED IND 500UH 600MA 750MOHM TH SCHURTER Inc.	172,965	-	RFQ	Datasheet	DLH	Radial, Horizontal - Corner Terminals	Bulk	Active	-	-	500 µH	±15%	600 mA	-	Shielded	750mOhm	-	-	-	-40°C ~ 125°C	-	-	Through Hole	-	0.591" L x 0.413" W (15.00mm x 10.50mm)	-
PM2120-101K-RC FIXED IND 100UH 6.1A 35 MOHM SMD Bourns Inc.	153,688	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	100 µH	±10%	6.1 A	-	Unshielded	35mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.870" (22.10mm)
PM2120-151K-RC FIXED IND 150UH 5.5A 43 MOHM SMD Bourns Inc.	149,542	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	150 µH	±10%	5.5 A	-	Unshielded	43mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.870" (22.10mm)
PM2120-390K-RC FIXED IND 39UH 9.6A 14 MOHM SMD Bourns Inc.	186,647	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	39 µH	±10%	9.6 A	-	Unshielded	14mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.820" (20.83mm)
IHLP6767GZER470M8A FIXED IND 47UH 7.25A 56.4MOHM SM Vishay Dale	184,609	-	RFQ	Datasheet	IHLP-6767GZ-8A	Nonstandard	Tape & Reel (TR)	Active	Molded	-	47 µH	±20%	7.25 A	7A	Shielded	56.4mOhm Max	-	3.72MHz	AEC-Q200	-55°C ~ 180°C	100 kHz	-	Surface Mount	-	0.675" L x 0.675" W (17.15mm x 17.15mm)	0.276" (7.00mm)
PM2120-6R8M-RC FIXED IND 6.8UH 14.7A 6 MOHM SMD Bourns Inc.	163,101	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	6.8 µH	±20%	14.7 A	-	Unshielded	6mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.820" (20.83mm)
PM2120-102K-RC FIXED IND 1MH 2.5A 215 MOHM SMD Bourns Inc.	161,679	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	1 mH	±10%	2.5 A	-	Unshielded	215mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.820" (20.83mm)
PM2120-180K-RC FIXED IND 18UH 11.8A 9 MOHM SMD Bourns Inc.	119,093	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	18 µH	±10%	11.8 A	-	Unshielded	9mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.820" (20.83mm)
PM2120-680K-RC FIXED IND 68UH 6.7A 29 MOHM SMD Bourns Inc.	110,430	-	RFQ	Datasheet	PM2120	Nonstandard	Bulk	Active	Toroidal	Iron	68 µH	±10%	6.7 A	-	Unshielded	29mOhm Max	-	-	-	-55°C ~ 105°C	1 kHz	-	Surface Mount	-	1.201" L x 1.000" W (30.50mm x 25.40mm)	0.770" (19.56mm)
7447709820 FIXED IND 82UH 2.75A 105MOHM SMD Würth Elektronik	194,873	-	RFQ	Datasheet	WE-PD	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	82 µH	±20%	2.75 A	3.4A	Shielded	105mOhm Max	-	4.5MHz	AEC-Q200	-40°C ~ 125°C	1 kHz	-	Surface Mount	-	0.472" L x 0.472" W (12.00mm x 12.00mm)	0.394" (10.00mm)
PA5119.901NLT FIXED IND 900NH 14A 4.6 MOHM SMD Pulse Electronics	143,069	-	RFQ	Datasheet	PA5119.XXXNLT	Nonstandard	Tape & Reel (TR)	Active	-	-	900 nH	±10%	14 A	28A	Shielded	4.6mOhm	-	-	-	-40°C ~ 130°C	100 kHz	-	Surface Mount	-	0.480" L x 0.386" W (12.20mm x 9.80mm)	0.197" (5.00mm)
HC1-R22-R FIXED IND 220NH 51.42A 0.36 MOHM Eaton - Electronics Division	130,730	-	RFQ	Datasheet	HC1	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	220 nH	±15%	51.42 A	40.5A	Unshielded	0.36mOhm Max	-	-	-	-40°C ~ 125°C	300 kHz	-	Surface Mount	-	0.512" L x 0.512" W (13.00mm x 13.00mm)	0.394" (10.00mm)
1537-36K FIXED IND 10UH 335MA 900 MOHM TH Delevan	124,443	-	RFQ	Datasheet	Military, MIL-PRF-M15305, MS14046	Axial	Tape & Reel (TR)	Active	-	Iron	10 µH	±10%	335 mA	-	Unshielded	900mOhm Max	55 @ 7.9MHz	45MHz	-	-55°C ~ 105°C	7.9 MHz	-	Through Hole	-	0.156" Dia x 0.375" L (3.96mm x 9.53mm)	-
FIT50-2 FIXED IND 35.48UH 3.4A 57.8 MOHM Triad Magnetics	130,025	-	RFQ	Datasheet	FIT	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	35.48 µH	-	3.4 A	-	Unshielded	57.8mOhm Max	-	-	-	-40°C ~ 85°C	10 kHz	-	Through Hole	-	0.700" L x 0.475" W (17.78mm x 12.07mm)	0.750" (19.05mm)

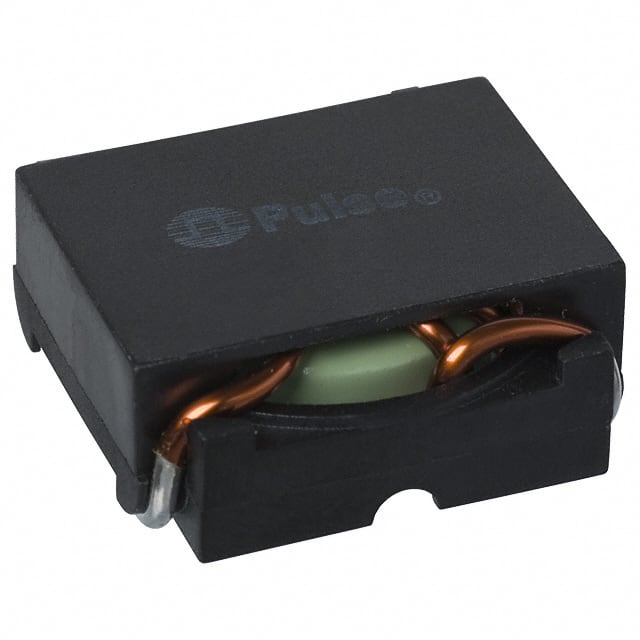

PE-53700NL FIXED IND 5.2UH 15.4A 6.2MOHM SM Pulse Electronics	176,797	-	RFQ	Datasheet	SLIC	Nonstandard	Bulk	Active	Toroidal	-	5.2 µH	-	15.4 A	-	Unshielded	6.2mOhm Max	-	-	-	-40°C ~ 130°C	-	-	Surface Mount	-	0.940" L x 0.940" W (23.88mm x 23.88mm)	0.390" (9.91mm)
7445920 FIXED IND 100UH 1.7A 0.207OHM SM Würth Elektronik	193,910	-	RFQ	Datasheet	WE-PD3	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	-	100 µH	±20%	1.7 A	2.4A	Shielded	207mOhm Max	-	5.5MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.730" L x 0.600" W (18.54mm x 15.24mm)	0.300" (7.62mm)
SD8350-220-R FIXED IND 22UH 1.8A 75 MOHM SMD Eaton - Electronics Division	139,157	-	RFQ	Datasheet	SD8350	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	22 µH	±30%	1.8 A	2.6A	Shielded	75mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.374" L x 0.327" W (9.50mm x 8.30mm)	0.177" (4.50mm)
FIRCH-1 FIXED IND 2.54UH 11.6A 5.5 MOHM Triad Magnetics	114,056	-	RFQ	Datasheet	FIRCH	Radial, Vertical Cylinder (Open)	Bulk	Active	Drum Core, Wirewound	Ferrite	2.54 µH	±15%	11.6 A	-	Unshielded	5.5mOhm Max	-	-	-	-40°C ~ 85°C	10 kHz	-	Through Hole	-	0.630" L x 0.465" W (16.00mm x 11.81mm)	1.050" (26.67mm)
744310115 FIXED IND 1.15UH 8.5A 8.6MOHM SM Würth Elektronik	152,810	-	RFQ	Datasheet	WE-HCI	Nonstandard	Tape & Reel (TR)	Active	Wirewound	-	1.15 µH	±20%	8.5 A	13A	Shielded	8.6mOhm	-	84MHz	AEC-Q200	-40°C ~ 150°C	100 kHz	-	Surface Mount	7030	0.276" L x 0.272" W (7.00mm x 6.90mm)	0.130" (3.30mm)

Total 147749 Record«Prev 1... 667 668 669 670671672 673 674...7388 Next»
