Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0402DC-20NXGRWFIXED IND 20NH 1A 162.7MOHM SMD |
167,899 |
|
Datasheet |
 |
0402DC | 0402 (1005 Metric) | Strip | Active | Wirewound | Ceramic | 20 nH | ±2% | 1 A | - | Unshielded | 162.7mOhm Max | 67 @ 900MHz | 5.11GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.65mm) |
|
XGL5030-521MECPOWER INDUCTOR, SHIELDED, COMPOS |
133,936 |
|
Datasheet |
|
XGL5030 | Nonstandard | Strip | Active | Molded | Metal Composite | 520 nH | ±20% | 25 A | 20.5A | Shielded | 3mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.216" L x 0.208" W (5.48mm x 5.28mm) | 0.126" (3.20mm) |
|
Z144FIXED IND 1.8UH 1.1A 330 MOHM TH |
165,985 |
|
Datasheet |
|
Z | Axial | Bulk | Active | - | - | 1.8 µH | - | 1.1 A | - | - | 330mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.187" Dia x 0.750" L (4.76mm x 19.05mm) | - |
|
|
Z235FIXED IND 840NH 1.7A 140 MOHM TH |
128,118 |
|
Datasheet |
|
Z | Axial | Bulk | Active | - | - | 840 nH | - | 1.7 A | - | - | 140mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.187" Dia x 0.750" L (4.76mm x 19.05mm) | - |
|
ELJ-FAR39MF2FIXED IND 390NH 305MA 390MOHM SM |
142,636 |
|
Datasheet |
|
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±20% | 305 mA | - | Unshielded | 390mOhm Max | 25 @ 25.2MHz | 175MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-NC33NKFFIXED IND 33NH 220MA 510MOHM SMD |
128,825 |
|
Datasheet |
|
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 33 nH | ±10% | 220 mA | - | Unshielded | 510mOhm Max | 15 @ 100MHz | 1GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-FC2R2KFFIXED IND 2.2UH 155MA 1.05OHM SM |
116,218 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±10% | 155 mA | - | Unshielded | 1.05Ohm Max | 25 @ 7.96MHz | 80MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC3R3KFFIXED IND 3.3UH 135MA 1.3OHM SMD |
194,618 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±10% | 135 mA | - | Unshielded | 1.3Ohm Max | 25 @ 7.96MHz | 65MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
9230-00FIXED IND 150NH 1.1A 100 MOHM TH |
124,431 |
|
Datasheet |
|
9230 | Axial | Bulk | Obsolete | Molded | Phenolic | 150 nH | ±10% | 1.1 A | - | Unshielded | 100mOhm Max | 38 @ 25MHz | 600MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
ELJ-NCR10KFFIXED IND 100NH 175MA 800MOHM SM |
138,303 |
|
Datasheet |
|
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 100 nH | ±10% | 175 mA | - | Unshielded | 800mOhm Max | 10 @ 25.2MHz | 460MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
4629FIXED IND 55UH 500MA 1 OHM TH |
118,222 |
|
Datasheet |
|
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 55 µH | ±5% | 500 mA | - | Unshielded | 1Ohm Max | 72 @ 2.52MHz | 17MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
ELJ-FC6R8KFFIXED IND 6.8UH 115MA 1.95OHM SM |
176,201 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±10% | 115 mA | - | Unshielded | 1.95Ohm Max | 25 @ 7.96MHz | 45MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC1R0KFFIXED IND 1UH 195MA 650 MOHM SMD |
126,339 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±10% | 195 mA | - | Unshielded | 650mOhm Max | 25 @ 7.96MHz | 115MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FAR27MF2FIXED IND 270NH 345MA 320MOHM SM |
103,092 |
|
Datasheet |
|
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 270 nH | ±20% | 345 mA | - | Unshielded | 320mOhm Max | 25 @ 25.2MHz | 210MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FC4R7KFFIXED IND 4.7UH 125MA 1.55OHM SM |
136,444 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±10% | 125 mA | - | Unshielded | 1.55Ohm Max | 25 @ 7.96MHz | 55MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FAR56MF2FIXED IND 560NH 275MA 490MOHM SM |
172,944 |
|
Datasheet |
|
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 560 nH | ±20% | 275 mA | - | Unshielded | 490mOhm Max | 25 @ 25.2MHz | 150MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FC120KFFIXED IND 12UH 75MA 4.1 OHM SMD |
155,385 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 12 µH | ±10% | 75 mA | - | Unshielded | 4.1Ohm Max | 25 @ 2.52MHz | 30MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC8R2KFFIXED IND 8.2UH 105MA 2.2OHM SMD |
158,093 |
|
Datasheet |
|
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 8.2 µH | ±10% | 105 mA | - | Unshielded | 2.2Ohm Max | 25 @ 7.96MHz | 40MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

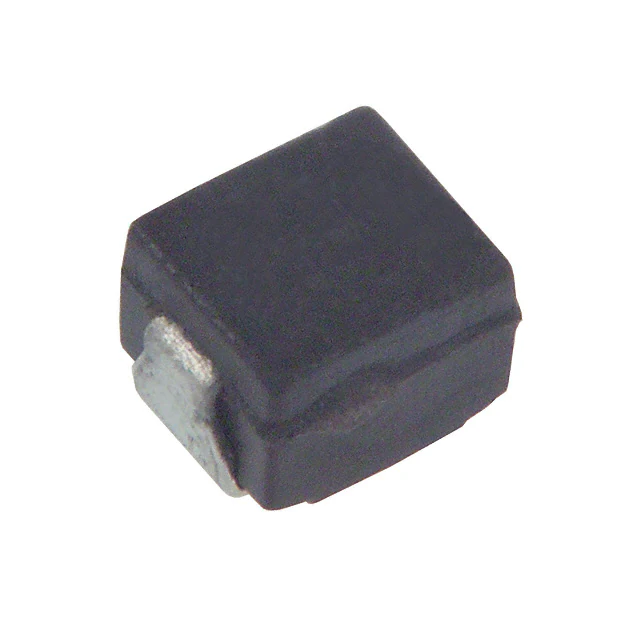

ELJ-SC101KFFIXED IND 100UH 10MA 8.4 OHM SMD |
124,312 |
|
Datasheet |
|
SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 100 µH | ±10% | 10 mA | - | Shielded | 8.4Ohm Max | 25 @ 796kHz | 12MHz | - | - | 796 kHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC820KFFIXED IND 82UH 14MA 7.4 OHM SMD |
147,280 |
|
Datasheet |
|
SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±10% | 14 mA | - | Shielded | 7.4Ohm Max | 25 @ 2.52MHz | 13MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
