Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLF7045T-331MR25FIXED IND 330UH 370MA 888MOHM SM |
113,448 |
|
Datasheet |
 |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 370 mA | 250mA | Shielded | 888mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
SLF6028T-100M1R3FIXED IND 10UH 1.8A 63.8MOHM SMD |
196,895 |
|
Datasheet |
|
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.8 A | 1.3A | Shielded | 63.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SLF6028T-220MR77FIXED IND 22UH 1.3A 124.8MOHM SM |
144,125 |
|
Datasheet |
|
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.3 A | 770mA | Shielded | 124.8mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SLF6028T-470MR59FIXED IND 47UH 920MA 252MOHM SMD |
129,943 |
|
Datasheet |
|
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 590mA | Shielded | 252mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SLF6028T-680MR50FIXED IND 68UH 780MA 348MOHM SMD |
117,341 |
|
Datasheet |
|
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 780 mA | 500mA | Shielded | 348mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
NLC322522T-151KFIXED IND 150UH 85MA 6.1 OHM SMD |
196,878 |
|
Datasheet |
|
NLC | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 150 µH | ±10% | 85 mA | - | Unshielded | 6.1Ohm | 20 @ 796kHz | 8MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NLC322522T-221KFIXED IND 220UH 70MA 8.4 OHM SMD |
132,362 |
|
Datasheet |
|
NLC | 1210 (3225 Metric) | Cut Tape (CT) | Obsolete | - | - | 220 µH | ±10% | 70 mA | - | Unshielded | 8.4Ohm | 20 @ 796kHz | 7MHz | - | -40°C ~ 85°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NL322522T-047JFIXED IND 47NH 450MA 300 MOHM |
171,178 |
|
Datasheet |
|
NL | 1210 (3225 Metric) | Cut Tape (CT) | Obsolete | - | - | 47 nH | ±5% | 450 mA | - | Shielded | 300mOhm Max | 26 @ 100MHz | 1.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NL322522T-1R0JFIXED IND 1UH 400MA 700 MOHM SMD |
158,802 |
|
Datasheet |
|
NL | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 120MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
NL322522T-220JFIXED IND 22UH 110MA 3.7 OHM SMD |
180,478 |
|
Datasheet |
|
NL | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 22 µH | ±5% | 110 mA | - | Unshielded | 3.7Ohm Max | 30 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
NLC252018T-2R2MFIXED IND 2.2UH 390MA 500MOHM SM |
125,982 |
|
Datasheet |
|
NLC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 2.2 µH | ±20% | 390 mA | - | Unshielded | 500mOhm | 20 @ 7.96MHz | 95MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
LLST-125FIXED IND 125UH 1A 250 MOHM SMD |
188,480 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 125 µH | ±15% | 1 A | 640mA | Shielded | 250mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-140FIXED IND 140UH 1A 250 MOHM SMD |
164,453 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 140 µH | ±15% | 1 A | 560mA | Shielded | 250mOhm Max | - | 5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|

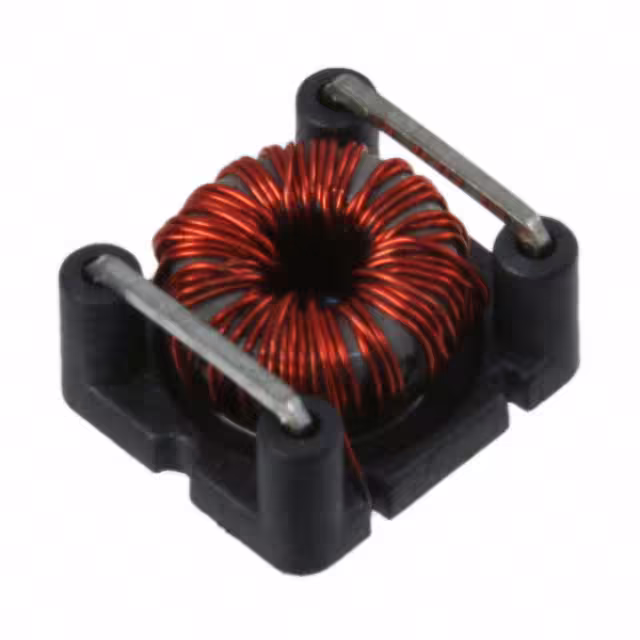

LLST-200FIXED IND 200UH 795MA 400MOHM SM |
156,822 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 200 µH | ±15% | 795 mA | 460mA | Shielded | 400mOhm Max | - | 3.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-350FIXED IND 350UH 650MA 625MOHM SM |
190,753 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 350 µH | ±15% | 650 mA | 360mA | Shielded | 625mOhm Max | - | 1.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-400FIXED IND 400UH 280MA 700MOHM SM |
183,299 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 400 µH | ±15% | 280 mA | 500mA | Shielded | 700mOhm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|

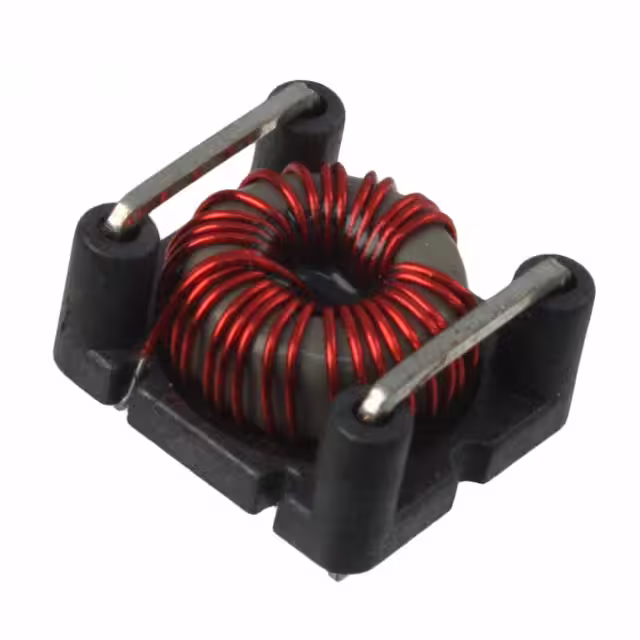

LLST-47FIXED IND 47UH 1.45A 120MOHM SMD |
144,233 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 47 µH | ±15% | 1.45 A | 1A | Shielded | 120mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
LLST-500FIXED IND 500UH 500MA 1 OHM SMD |
171,270 |
|
Datasheet |
|
LLST | Nonstandard | Bulk | Obsolete | Toroidal | Nickel Iron | 500 µH | ±15% | 500 mA | 260mA | Shielded | 1Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.475" L x 0.420" W (12.07mm x 10.67mm) | 0.290" (7.37mm) |
|
|
SPD125-103MFIXED IND 10UH 4A 55 MOHM SMD |
123,650 |
|
Datasheet |
|
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±20% | 4 A | - | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
SPD125-105MFIXED IND 1MH 400MA 2 OHM SMD |
104,442 |
|
Datasheet |
|
SPD125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 1 mH | ±20% | 400 mA | 400mA | Shielded | 2Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
