Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRU5011-6R8YFIXED IND 6.8UH 820MA 130MOHM SM |
193,164 |
|
Datasheet |
 |
SRU5011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 820 mA | 680mA | Shielded | 130mOhm | 8 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
SRU6011-100YFIXED IND 10UH 1.1A 220 MOHM SMD |
146,153 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 1.1 A | 720mA | Shielded | 220mOhm Max | 12 @ 2.52MHz | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-150YFIXED IND 15UH 950MA 320MOHM SMD |
151,272 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 950 mA | 620mA | Shielded | 320mOhm Max | 10 @ 2.52MHz | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-1R4YFIXED IND 1.4UH 2.6A 40 MOHM SMD |
117,900 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.4 µH | ±30% | 2.6 A | 1.8A | Shielded | 40mOhm Max | 8 @ 7.96MHz | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|

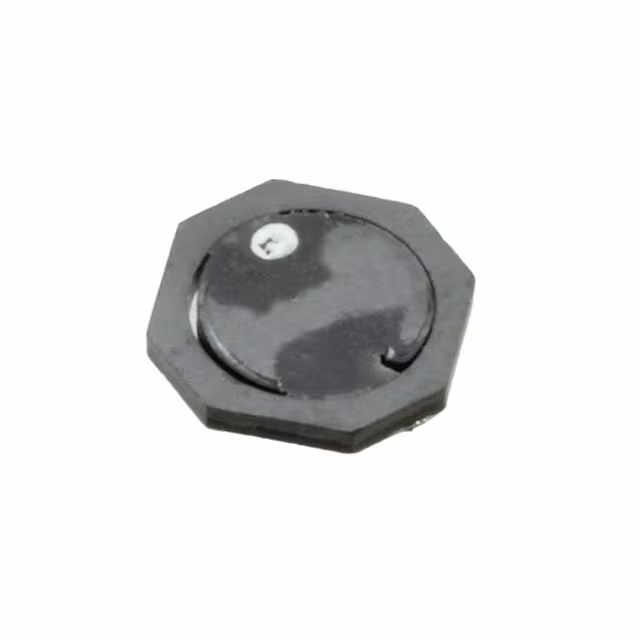

SRU6011-220YFIXED IND 22UH 800MA 390MOHM SMD |
135,687 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 800 mA | 480mA | Shielded | 390mOhm Max | 10 @ 2.52MHz | 26MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-2R7YFIXED IND 2.7UH 2.2A 62 MOHM SMD |
124,736 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 2.2 A | 1.45A | Shielded | 62mOhm Max | 8 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-330YFIXED IND 33UH 680MA 560MOHM SMD |
116,617 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 680 mA | 380mA | Shielded | 560mOhm Max | 10 @ 2.52MHz | 22MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-470YFIXED IND 47UH 550MA 850MOHM SMD |
108,876 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 550 mA | 320mA | Shielded | 850mOhm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-4R7YFIXED IND 4.7UH 1.8A 86 MOHM SMD |
194,534 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.8 A | 1.1A | Shielded | 86mOhm Max | 8 @ 7.96MHz | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-680YFIXED IND 68UH 460MA 1.2 OHM SMD |
146,038 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 460 mA | 280mA | Shielded | 1.2Ohm Max | 12 @ 2.52MHz | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
|
|
SRU6011-6R8YFIXED IND 6.8UH 1.4A 136MOHM SMD |
146,589 |
|
Datasheet |
|
SRU6011 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 1.4 A | 900mA | Shielded | 136mOhm Max | 7 @ 7.96MHz | 55MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.049" (1.25mm) |
-1,45mm.jpg)
|
CKP2012NR47M-TFIXED IND 470NH 1.2A 100MOHM SMD |
194,831 |
|
Datasheet |
|
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CKP2012N1R0M-TFIXED IND 1UH 1A 140 MOHM SMD |
134,384 |
|
Datasheet |
|
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CKP2012N1R5M-TFIXED IND 1.5UH 800MA 200MOHM SM |
187,431 |
|
Datasheet |
|
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1.5 µH | ±20% | 800 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CKP2012N2R2M-TFIXED IND 2.2UH 800MA 200MOHM SM |
133,999 |
|
Datasheet |
|
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 800 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CKP2012N3R3M-TFIXED IND 3.3UH 700MA 240MOHM SM |
107,704 |
|
Datasheet |
|
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 3.3 µH | ±20% | 700 mA | - | Unshielded | 240mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CKP2012N4R7M-TFIXED IND 4.7UH 700MA 280MOHM SM |
136,525 |
|
Datasheet |
|
CK, P Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 700 mA | - | Unshielded | 280mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
ILC0603ER10NKFIXED IND 10NH 300MA 260MOHM SMD |
159,514 |
|
Datasheet |
|
ILC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±10% | 300 mA | - | Unshielded | 260mOhm Max | 12 @ 100MHz | 2.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ILC0603ER18NKFIXED IND 18NH 300MA 350MOHM SMD |
187,993 |
|
Datasheet |
|
ILC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 18 nH | ±10% | 300 mA | - | Unshielded | 350mOhm Max | 12 @ 100MHz | 1.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
ILC0603ER6N8KFIXED IND 6.8NH 300MA 220MOHM SM |
161,420 |
|
Datasheet |
|
ILC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±10% | 300 mA | - | Unshielded | 220mOhm Max | 10 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
