Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCMA0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD Eaton - Electronics Division |
117,859 |
|
Datasheet |
 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 220 nH | ±20% | 23 A | 40A | Shielded | 2.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCMA0703-1R0-RFIXED IND 1UH 11A 10 MOHM SMD Eaton - Electronics Division |
159,355 |
|
Datasheet |
|
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCMA0703-8R2-RFIXED IND 8.2UH 4A 68 MOHM SMD Eaton - Electronics Division |
111,980 |
|
Datasheet |
|
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 4 A | 7.5A | Shielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCMA0703-R47-RFIXED IND 470NH 17.5A 4.2MOHM SM Eaton - Electronics Division |
134,657 |
|
Datasheet |
|
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 17.5 A | 26A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
DR1030-470-RFIXED IND 47UH 1.3A 200 MOHM SMD Eaton - Electronics Division |
182,751 |
|
Datasheet |
|
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1.3 A | 1.52A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
|
HCMA0703-6R8-RFIXED IND 6.8UH 4.5A 60 MOHM SMD Eaton - Electronics Division |
160,350 |
|
Datasheet |
|
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 4.5 A | 8A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCMA0703-3R3-RFIXED IND 3.3UH 6A 30 MOHM SMD Eaton - Electronics Division |
192,703 |
|
Datasheet |
|
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6 A | 13.5A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|

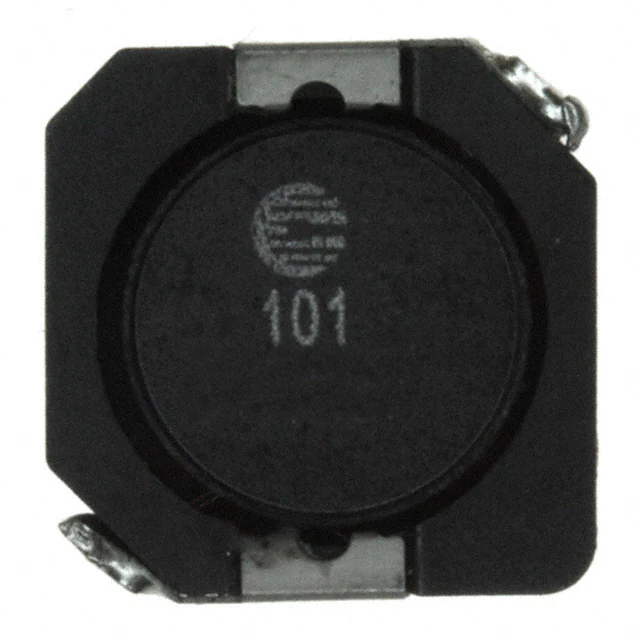

DR1030-101-RFIXED IND 100UH 860MA 450MOHM SM Eaton - Electronics Division |
144,358 |
|
Datasheet |
|
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 860 mA | 1.05A | Shielded | 450mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
|
HCMA0703-R15-RFIXED IND 150NH 26A 2.5 MOHM SMD Eaton - Electronics Division |
108,313 |
|
Datasheet |
|
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 150 nH | ±20% | 26 A | 52A | Shielded | 2.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|

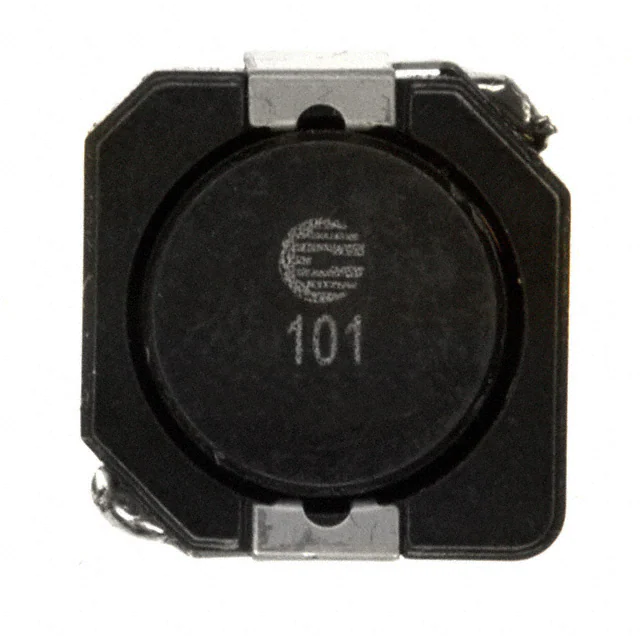

DR1050-101-RFIXED IND 100UH 1.52A 205MOHM SM Eaton - Electronics Division |
108,489 |
|
Datasheet |
|
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.52 A | 1.45A | Shielded | 205mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
