Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

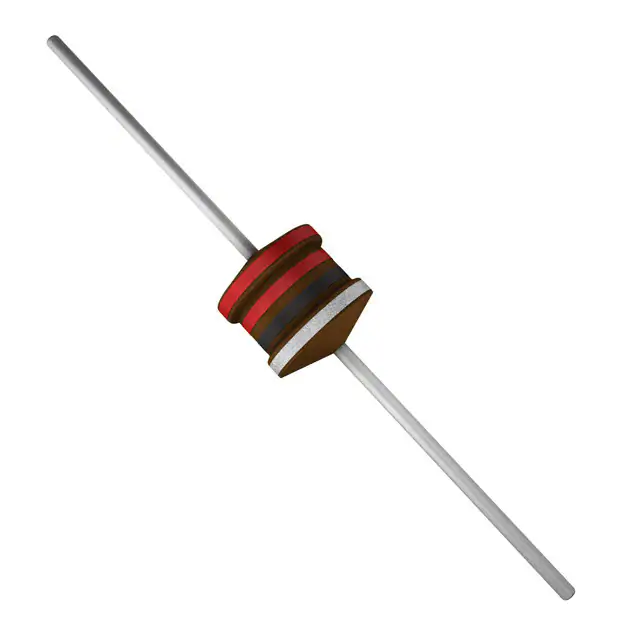

B78108E1223K000FIXED IND 22UH 1.3A 350 MOHM TH EPCOS - TDK Electronics |
138,482 |
|
Datasheet |
 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.3 A | 1.25A | Unshielded | 350mOhm Max | 40 @ 796kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

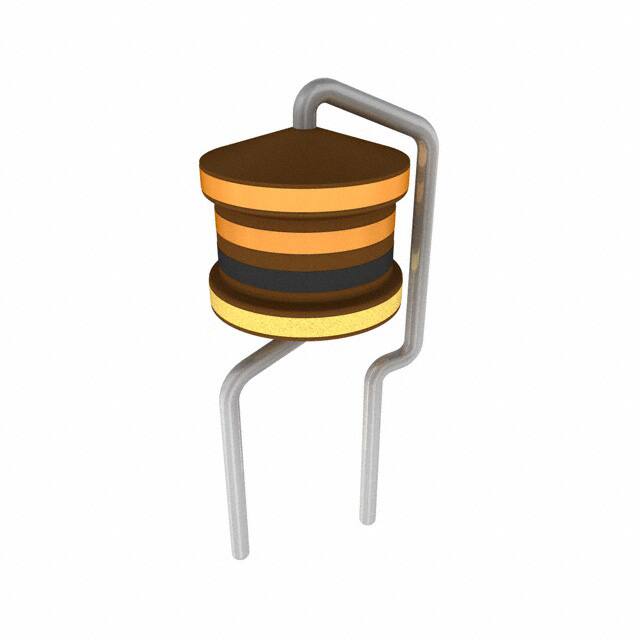

B78148E1333J000FIXED IND 33UH 1.05A 550 MOHM TH EPCOS - TDK Electronics |
173,678 |
|
Datasheet |
|
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.05 A | 1A | Unshielded | 550mOhm Max | 50 @ 796kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
.jpg)
|
B82422T1221K000FIXED IND 220NH 450MA 200MOHM SM EPCOS - TDK Electronics |
174,356 |
|
Datasheet |
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 450 mA | - | Unshielded | 200mOhm Max | 30 @ 25.2MHz | 500MHz | AEC-Q200 | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1153J100FIXED IND 15UH 165MA 1.85OHM SMD EPCOS - TDK Electronics |
119,475 |
|
Datasheet |
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 165 mA | - | Unshielded | 1.85Ohm Max | 27 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

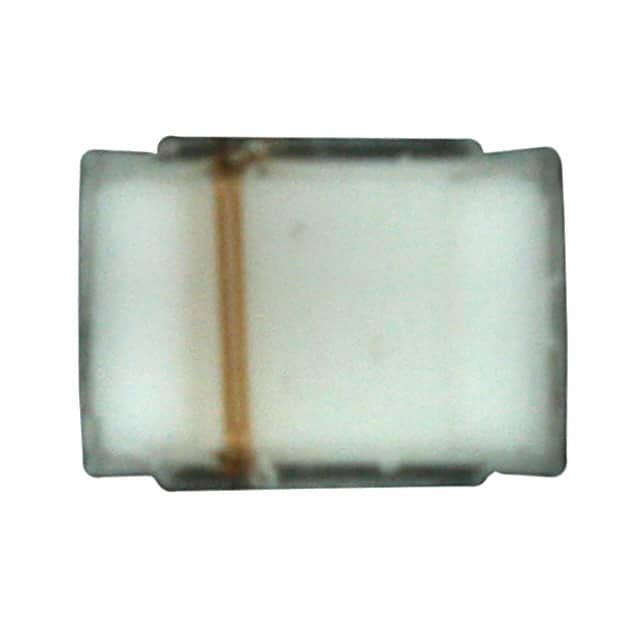

B82498F3829K000FIXED IND 8.2NH 700MA 90MOHM SMD EPCOS - TDK Electronics |
173,546 |
|
Datasheet |
|
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 8.2 nH | ±10% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 1GHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

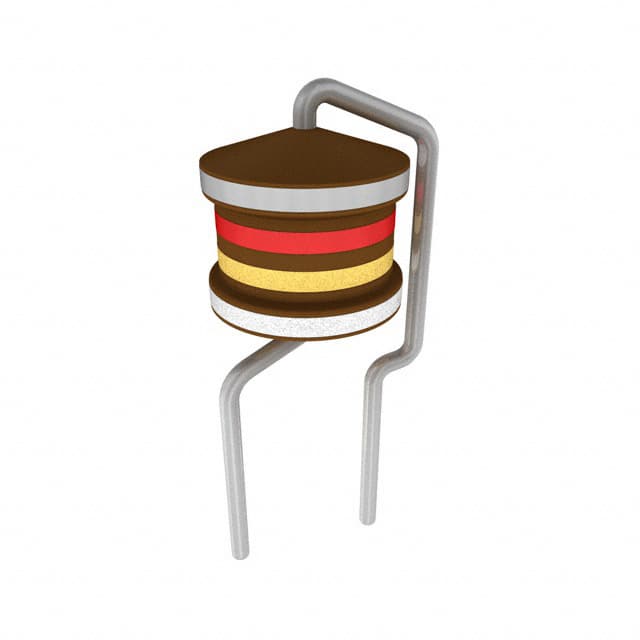

B82144B2822K000FIXED IND 8.2UH 2.65A 105MOHM TH EPCOS - TDK Electronics |
107,957 |
|
Datasheet |
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 2.65 A | 3.1A | Unshielded | 105mOhm Max | 40 @ 252kHz | 28MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

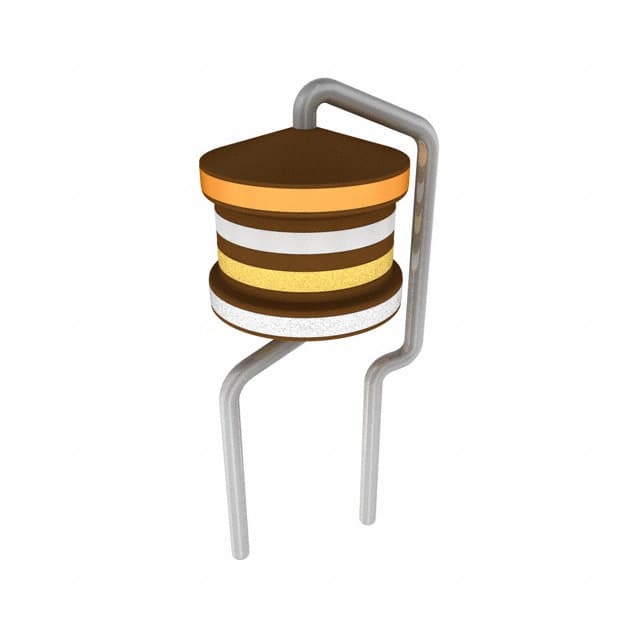

B82144B2392K000FIXED IND 3.9UH 3.35A 75 MOHM TH EPCOS - TDK Electronics |
131,309 |
|
Datasheet |
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±10% | 3.35 A | 4.4A | Unshielded | 75mOhm Max | 60 @ 2.52MHz | 90MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B1335J000FIXED IND 3.3MH 150MA 13.8OHM TH EPCOS - TDK Electronics |
118,915 |
|
Datasheet |
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±5% | 150 mA | - | Unshielded | 13.8Ohm Max | 60 @ 252kHz | 1.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.571" (14.50mm) |
|

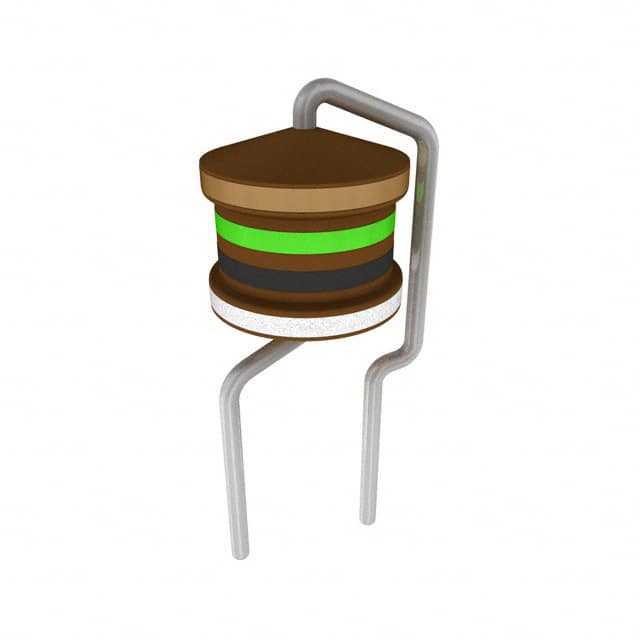

B82144B2153K000FIXED IND 15UH 2.3A 140 MOHM TH EPCOS - TDK Electronics |
174,020 |
|
Datasheet |
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.3 A | 2.4A | Unshielded | 140mOhm Max | 50 @ 252kHz | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

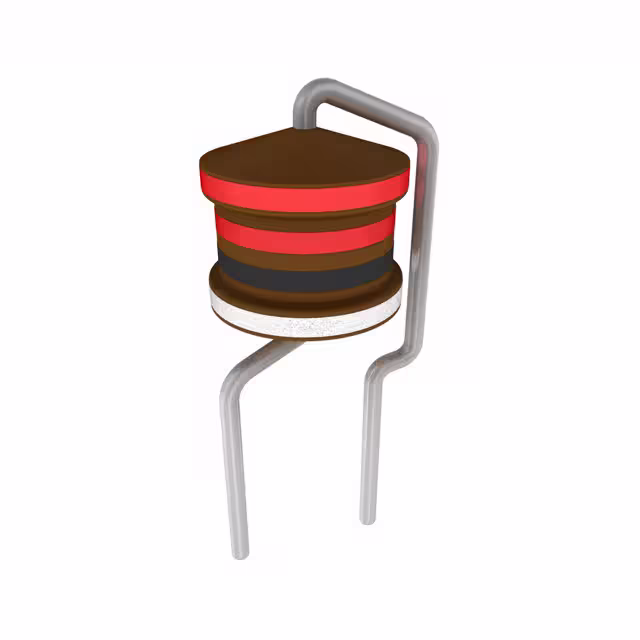

B82144B2223K000FIXED IND 22UH 2.1A 175 MOHM TH EPCOS - TDK Electronics |
105,506 |
|
Datasheet |
|
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2A | Unshielded | 175mOhm Max | 50 @ 252kHz | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
