Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

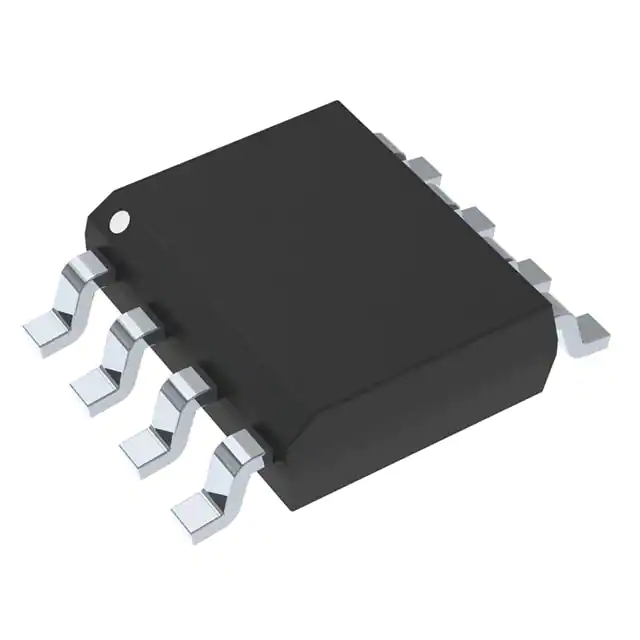

NCV57201DR2GDGTL ISO 1KV 1CH GATE DVR 8SOIC onsemi |
3,347 |
|
Datasheet |
 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 1000Vrms | 100kV/µs | 110ns, 110ns | 25ns | 13ns, 8ns | 1.9A, 2.3A | 1.9A, 2.3A | - | - | 0V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
FOD8480TOPTOISO 5KV 1CH GATE DVR 6SOIC onsemi |
4,780 |
|
Datasheet |
|
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | 2.5mA, 2.5mA | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | IEC/EN/DIN, UL |
|
NCD57085DR2GDGTL ISO 2.5KV 1CH GT DVR 8SOIC onsemi |
3,093 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 2500Vrms | 100kV/µs | 90ns, 90ns | 25ns | 10ns, 15ns | 7A, 7A | 7A | - | - | 3.3V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | VDE |
|
|
FOD8342TR2VOPTOISO 5KV 1CH GATE DVR 6SOP onsemi |
4,569 |
|
Datasheet |
|
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | IEC/EN/DIN, UR |
|
|
FOD8343TR2VOPTOISO 5KV 1CH GATE DVR 6SOP onsemi |
5,792 |
|
Datasheet |
|
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 3A, 3A | 4A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | UL |
|
|
FOD8342VOPTOISO 5KV 1CH GATE DVR 6SOP onsemi |
5,553 |
|
Datasheet |
|
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP | UL |
|
|
FOD8480R2OPTOISO 5KV 1CH GATE DVR 6SOIC onsemi |
5,875 |
|
Datasheet |
|
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 300ns, 300ns | 250ns | 15ns, 10ns | 2.5mA, 2.5mA | - | 1.4V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | IEC/EN/DIN, UL |
|
|
NCD57080BDR2GDGTL ISO 3.75KV 1CH GT DVR 8SOIC onsemi |
4,454 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 90ns, 90ns | - | 13ns, 13ns | 6.5A, 6.5A | 6.5A | - | - | 0V ~ 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | - |
|
FOD3180TSVOPTOISO 5KV 1CH GATE DVR 8SMD onsemi |
3,859 |
|
Datasheet |
|
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | cUL, UL, VDE |
|
|
FOD8343TVOPTOISO 5KV 1CH GATE DVR 6SOP onsemi |
3,239 |
|
Datasheet |
|
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 3A, 3A | 4A | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOIC | UL |
