Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

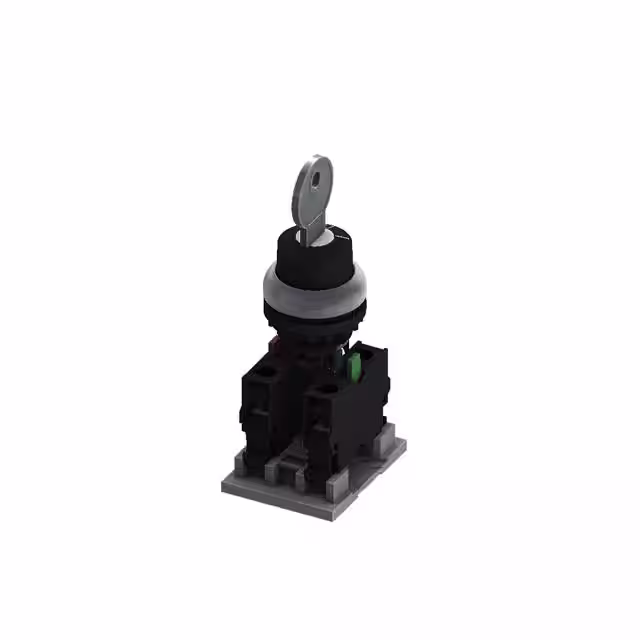

M22K-20SB20-BSWITCH KEYLOCK 2POS DPST 6A 230V Moujen |
750 |
|
Datasheet |
 |
M22 | Bulk | Active | DPST | 2 | - | - | 6A (AC), 3A (DC) | 230 V | 24 V | Flat Key | All | 45° | Silver-Nickel Alloy | Silver | - | Screw Terminal | Circular - 22.30mm Dia | - | - |
|
M22K-22SF20-ASWITCH KEYLOCK 2POS DPST 6A 230V Moujen |
750 |
|
Datasheet |
|
M22 | Bulk | Active | DPST | 2 | - | - | 6A (AC), 3A (DC) | 230 V | 24 V | Flat Key | Center | 45° | Silver-Nickel Alloy | Silver | - | Screw Terminal | Circular - 22.30mm Dia | - | - |
|
M6K-A20S1-BSWITCH KEYLOCK 2POS SPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | SPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A20S1-CSWITCH KEYLOCK 2POS SPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | SPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Right | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A20S2-CSWITCH KEYLOCK 2POS DPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Right | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A20S2-ASWITCH KEYLOCK 2POS DPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | DPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | All | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A22S1-ASWITCH KEYLOCK 2POS SPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | SPDT | 2 | On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left | 90° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A30S2-ASWITCH KEYLOCK 3POS SPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | SPDT | 3 | On-On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | All | 45° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A30S2-BSWITCH KEYLOCK 3POS SPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | SPDT | 3 | On-On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Left and Center | 45° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A30S2-CSWITCH KEYLOCK 3POS SPDT 2A 250V Moujen |
2,500 |
|
Datasheet |
|
M6 | Retail Package | Active | SPDT | 3 | On-On-On | - | 2A (AC), 400mA (DC) | 250 V | 125 V | Flat Key | Center and Right | 45° | Silver (Ag) | Palladium | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | UL94 V-0, IP65 | -25°C ~ 55°C |
