Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature

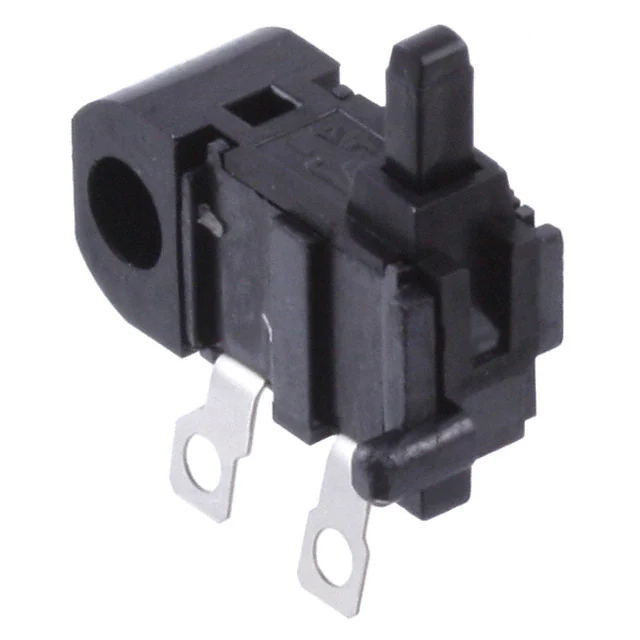

ESE-11HS1 SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	421	-	RFQ	Datasheet	ESE11	Bulk	Active	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Overtravel Plunger	Chassis Mount	Solder Lug	-	-	35gf	-	0.313" (7.95mm)	-	-	-	-10°C ~ 70°C
ESE-11HS2 SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	269	-	RFQ	Datasheet	ESE11	Bulk	Active	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Overtravel Plunger	Chassis Mount	Solder Lug	-	-	35gf	-	0.313" (7.95mm)	-	-	-	-10°C ~ 70°C
D2FC-F-7N(20M) SWITCH SNP ACT SPST-NO 0.001A 6V Omron Electronics Inc-EMC Div	579	-	RFQ	Datasheet	D2F	Bag	Active	SPST-NO	Off-Mom	1mA (DC)	-	6 V	Round (Pin Plunger)	Through Hole	PC Pin	IP40	-	60gf	24gf	0.272" (6.9mm)	-	0.005" (0.13mm)	0.008" (0.2mm)	-25°C ~ 65°C

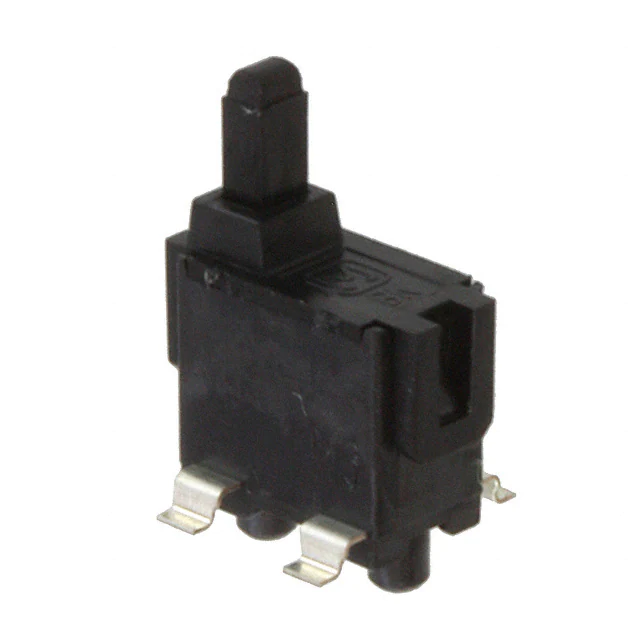

ESE-11MV9T SWITCH DETECTOR SPST-NO 0.01A 5V Panasonic Electronic Components	667	-	RFQ	Datasheet	ESE11	Tape & Reel (TR)	Active	SPST-NO	Off-Mom	10mA (DC)	-	5 V	Overtravel Plunger	Surface Mount	Gull Wing	-	-	35gf	-	0.305" (7.75mm)	-	-	-	-10°C ~ 70°C

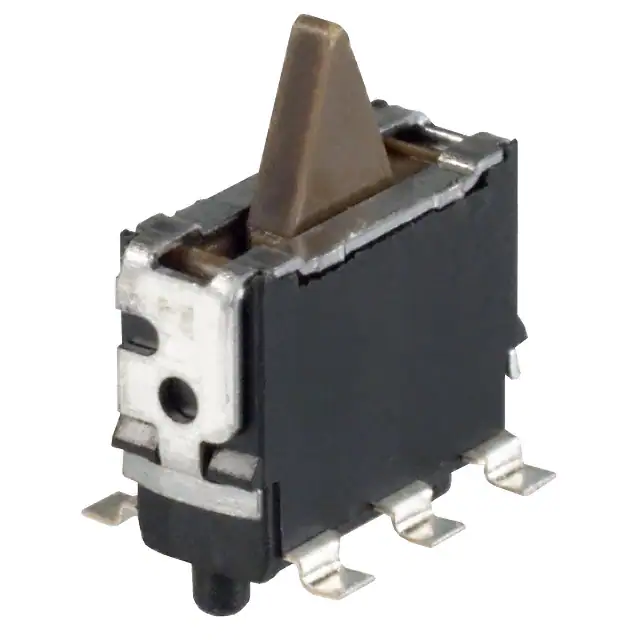

ESE-24MV1 SWITCH DETECTOR SPDT 0.01A 5V Panasonic Electronic Components	859	-	RFQ	Datasheet	ESE24	Bulk	Active	SPDT	Mom-Off-Mom	10mA (DC)	-	5 V	Angled Toggle (Detector)	Surface Mount	SMD (SMT) Tab	-	Board Guide	35gf	-	0.317" (8.05mm)	-	-	-	-10°C ~ 70°C
SAJ101XHL0N74SDTPTQ SWITCH SNAP ACTION SPDT 0.1A 30V TE Connectivity ALCOSWITCH Switches	285	-	RFQ	Datasheet	SAJ1	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Straight	Through Hole	PC Pin	-	-	26gf	2.000gf	0.335" (8.5mm)	0.120" (3.0mm)	0.020" (0.5mm)	0.022" (0.55mm)	-25°C ~ 75°C

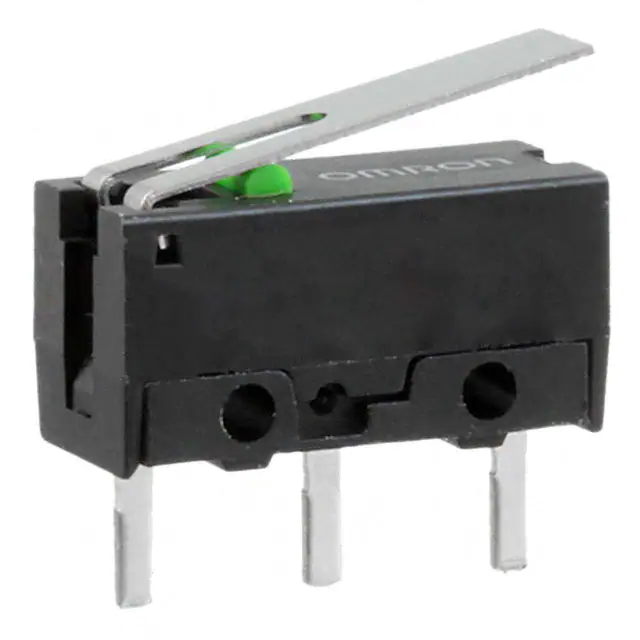

D2FS-FL-N SWITCH SNAP ACT SPST-NO 0.1A 6V Omron Electronics Inc-EMC Div	974	-	RFQ	Datasheet	D2FS	Bulk	Active	SPST-NO	Off-Mom	100mA (DC)	-	6 V	Lever, Straight	Through Hole	PC Pin	IP40	-	25gf	2.039gf	0.328" (8.3mm)	-	0.020" (0.5mm)	0.022" (0.55mm)	-20°C ~ 70°C

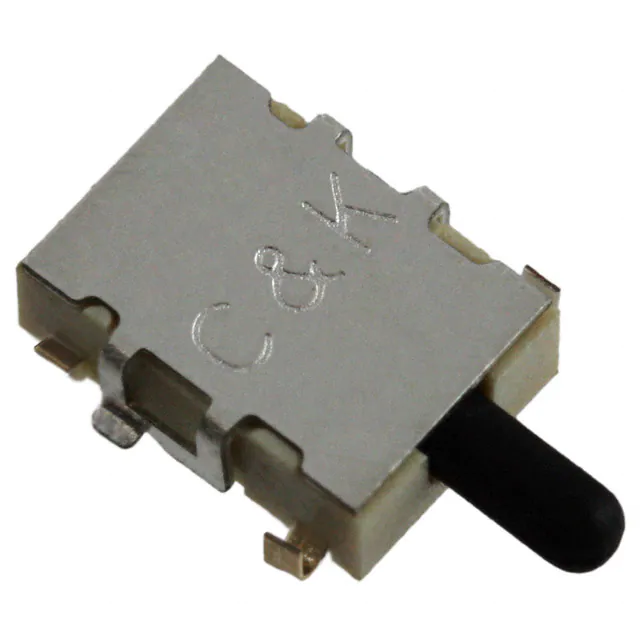

SDS005 SWITCH DETECT SPST-NC 100MA 12V C&K	572	-	RFQ	Datasheet	SDS	Tray	Active	SPST-NC	On-Mom	100mA (DC)	-	12 V	Overtravel Plunger	Surface Mount, Right Angle	SMD (SMT) Tab	-	-	75gf	-	-	-	-	0.079" (2.0mm)	-40°C ~ 85°C
SAJ13XXHL0N88SDTPTQ SWITCH SNAP ACTION SPDT 3A 125V TE Connectivity ALCOSWITCH Switches	665	-	RFQ	Datasheet	SAJ1	Bulk	Active	SPDT	On-Mom	3A (AC)	125 V	-	Lever, Straight	Through Hole	PC Pin	-	-	40gf	2.000gf	0.335" (8.5mm)	0.120" (3.0mm)	0.020" (0.5mm)	0.022" (0.55mm)	-25°C ~ 75°C

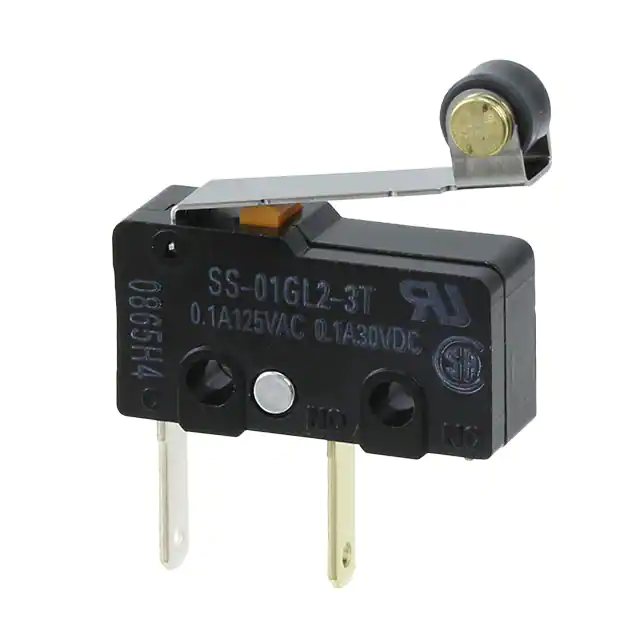

SS-01GL2-3T SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	86	-	RFQ	Datasheet	SS	Bulk	Active	SPST-NO	Off-Mom	100mA (AC/DC)	125 V	30 V	Lever, Roller	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP40	-	50gf	6.118gf	0.571" (14.5mm)	-	0.031" (0.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
D3V-16G-3C5 SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	88	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 100mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.012" (0.3mm)	0.040" (1.0mm)	-25°C ~ 105°C
VM3CQF1802L03 SWITCH LIMIT SPDT 16A 125V CIT Relay and Switch	94	-	RFQ	Datasheet	VM3	Tray	Active	SPDT	On-Mom	16A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	70gf	50gf	0.551" (14.0mm)	0.131" (3.3mm)	0.025" (0.6mm)	0.090" (2.3mm)	-40°C ~ 120°C
D2GW-A13H SEALED SWITCH PCB PIN PLUNGER Omron Electronics Inc-EMC Div	99	-	RFQ	-	D2GW	Tray	Active	SPST-NO	Off-Mom	10mA (DC)	-	13.5 V	Lever, Straight	Panel Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	87gf	2.000gf	0.356" (9.05mm)	-	0.055" (1.4mm)	0.175" (4.45mm)	-40°C ~ 85°C
ZX40E10C01 SWITCH SNAP ACTION SPDT 3A 125V Honeywell Sensing and Productivity Solutions	67	-	RFQ	Datasheet	ZX	Bulk	Active	SPDT	On-Mom	3A (AC)	125 V	-	Lever, Straight	Chassis Mount	Solder Lug	-	-	48gf	8.000gf	0.330" (8.4mm)	0.134" (3.4mm)	0.050" (1.3mm)	0.025" (0.6mm)	-40°C ~ 120°C
D3D-211 SWITCH DETECTOR SPDT 1A 125V Omron Electronics Inc-EMC Div	36	-	RFQ	Datasheet	D3D	Tray	Active	SPDT	On-Mom	1A (AC)	125 V	-	Angled Toggle (Detector)	Panel Mount, Snap-In	Connector	IP00	White Actuator	204gf	-	0.512" (13.0mm)	-	-	-	-30°C ~ 60°C

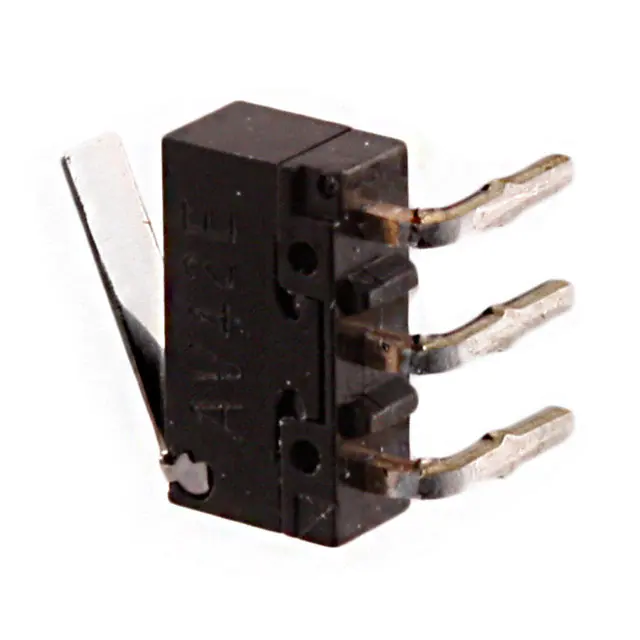

AV4524 SWITCH SNAP ACTION SPDT 0.5A 30V Panasonic Electric Works	65	-	RFQ	Datasheet	AV4	Bulk	Active	SPDT	On-Mom	500mA (DC)	-	30 V	Lever, Straight	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Right Side	25gf	-	0.228" (5.8mm)	0.094" (2.4mm)	0.027" (0.7mm)	0.015" (0.4mm)	-25°C ~ 80°C
V7-1A28D882 SWITCH SNAP ACT SPST-NO 5A 125V Honeywell Sensing and Productivity Solutions	60	-	RFQ	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	5A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	25gf	0.579" (14.7mm)	0.047" (1.2mm)	0.010" (0.25mm)	0.050" (1.27mm)	-25°C ~ 85°C
SS-10GL13T SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	27	-	RFQ	Datasheet	SS	Tray	Active	SPDT	On-Mom	10A (AC)	250 V	-	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP40	-	50gf	6.118gf	0.420" (10.7mm)	-	0.040" (1.0mm)	0.040" (1.0mm)	-25°C ~ 85°C
V-16-3C25 SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	70	-	RFQ	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	50gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 80°C
D3V-16-1C26-K SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	33	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	16A (AC), 10A (DC)	250 V	30 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	400gf	80gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C
