Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
VM3AQF0801L00 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	77	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	80gf	40gf	0.562" (14.3mm)	0.055" (1.4mm)	0.016" (0.4mm)	0.045" (1.1mm)	-40°C ~ 120°C
VM3AQF0802L00 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	50	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	80gf	40gf	0.562" (14.3mm)	0.055" (1.4mm)	0.016" (0.4mm)	0.045" (1.1mm)	-40°C ~ 120°C
VM3AQF1801L02 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	38	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	80gf	40gf	0.697" (17.7mm)	0.122" (3.1mm)	0.027" (0.7mm)	0.090" (2.3mm)	-40°C ~ 120°C
VM3AQF1802L04 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	57	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	145gf	60gf	0.560" (14.2mm)	0.087" (2.2mm)	0.020" (0.5mm)	0.047" (1.20mm)	-40°C ~ 120°C
VM3CQF1801L06 SWITCH LIMIT SPDT 16A 125V CIT Relay and Switch	75	-	RFQ	Datasheet	VM3	Tray	Active	SPDT	On-Mom	16A (AC)	125 V	-	Lever, Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	180gf	80gf	0.785" (19.9mm)	0.075" (1.9mm)	0.016" (0.4mm)	0.047" (1.20mm)	-40°C ~ 120°C
VM3AQF0801L03 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	92	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	35gf	18gf	0.551" (14.0mm)	0.131" (3.3mm)	0.025" (0.6mm)	0.090" (2.3mm)	-40°C ~ 120°C
VM3AQF0802L03 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	56	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	35gf	18gf	0.551" (14.0mm)	0.131" (3.3mm)	0.025" (0.6mm)	0.090" (2.3mm)	-40°C ~ 120°C
VM3AQF1801L01 SWITCH LIMIT SPST-NO 16A 125V CIT Relay and Switch	33	-	RFQ	Datasheet	VM3	Tray	Active	SPST-NO	Off-Mom	16A (AC)	125 V	-	Lever, Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	80gf	60gf	0.732" (18.6mm)	0.146" (3.7mm)	0.027" (0.7mm)	0.100" (2.5mm)	-40°C ~ 120°C
D3V-161-1C5 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	100	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	16A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	50gf	0.600" (15.2mm)	0.063" (1.6mm)	0.025" (0.6mm)	0.031" (0.79mm)	-25°C ~ 105°C

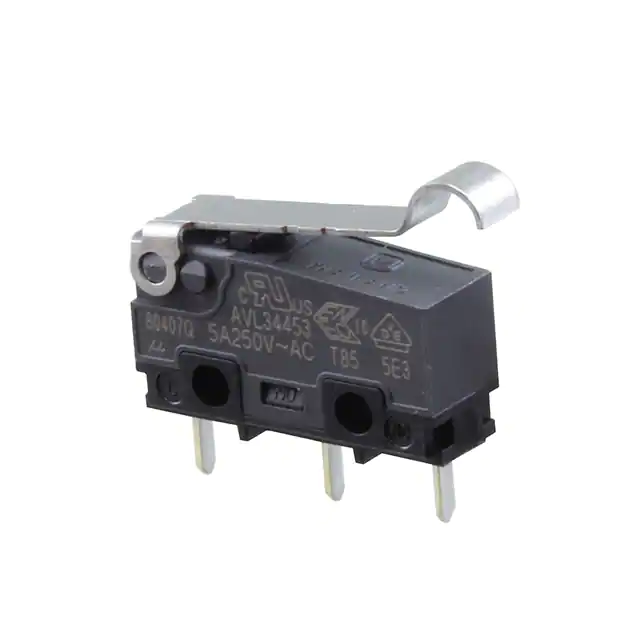

AVL34453 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	100	-	RFQ	Datasheet	AVL3	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Lever, Simulated Roller	Through Hole	PC Pin	-	-	55gf	3.500gf	0.460" (11.7mm)	0.110" (2.8mm)	0.032" (0.81mm)	0.047" (1.2mm)	-25°C ~ 85°C
VM3CQF1801L07 SWITCH LIMIT SPDT 16A 125V CIT Relay and Switch	77	-	RFQ	Datasheet	VM3	Tray	Active	SPDT	On-Mom	16A (AC)	125 V	-	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	40gf	20gf	0.445" (11.3mm)	0.303" (7.7mm)	0.075" (1.9mm)	0.278" (7.1mm)	-40°C ~ 120°C
VM3CQF1802L01 SWITCH LIMIT SPDT 16A 125V CIT Relay and Switch	61	-	RFQ	Datasheet	VM3	Tray	Active	SPDT	On-Mom	16A (AC)	125 V	-	Lever, Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	80gf	60gf	0.732" (18.6mm)	0.146" (3.7mm)	0.027" (0.7mm)	0.100" (2.5mm)	-40°C ~ 120°C
VM3CQF1801L01 SWITCH LIMIT SPDT 16A 125V CIT Relay and Switch	57	-	RFQ	Datasheet	VM3	Tray	Active	SPDT	On-Mom	16A (AC)	125 V	-	Lever, Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	80gf	60gf	0.732" (18.6mm)	0.146" (3.7mm)	0.027" (0.7mm)	0.100" (2.5mm)	-40°C ~ 120°C
ABS1412503 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	92	-	RFQ	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	2A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	55gf	3.500gf	0.345" (8.8mm)	0.110" (2.8mm)	0.031" (0.8mm)	0.047" (1.2mm)	-40°C ~ 85°C

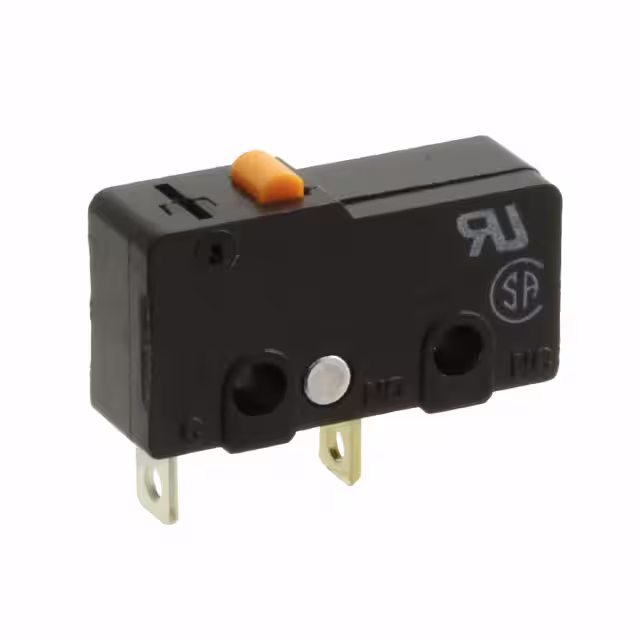

SS-5-3 SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	51	-	RFQ	Datasheet	SS	Bulk	Active	SPST-NO	Off-Mom	5A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP40	-	150gf	25gf	0.330" (8.4mm)	0.020" (0.5mm)	0.004" (0.1mm)	0.020" (0.5mm)	-25°C ~ 85°C

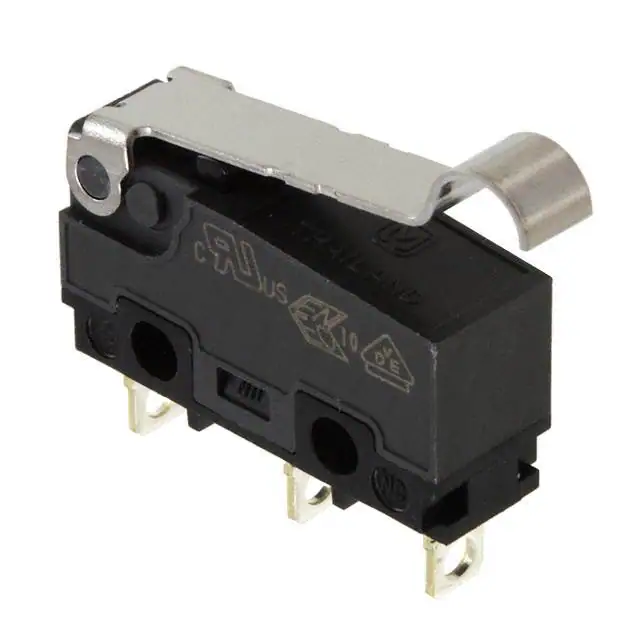

AVL32453 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	97	-	RFQ	Datasheet	AVL3	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Lever, Simulated Roller	Chassis Mount	Solder Lug	-	-	55gf	3.500gf	0.460" (11.7mm)	0.110" (2.8mm)	0.032" (0.81mm)	0.047" (1.2mm)	-25°C ~ 85°C

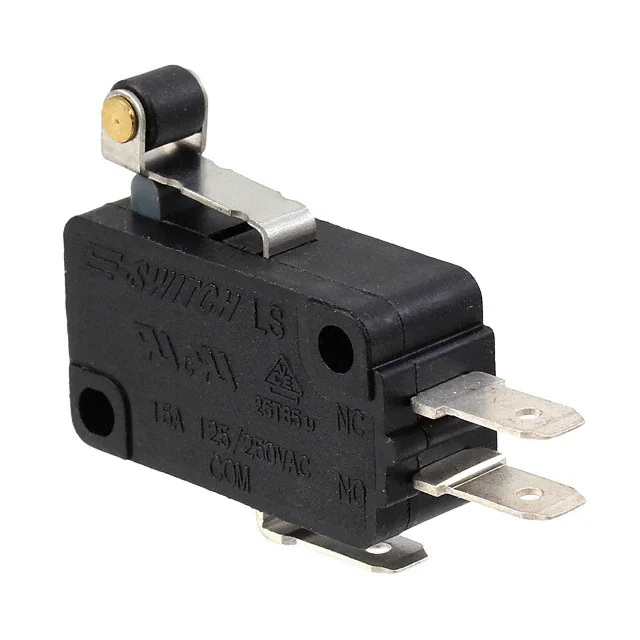

LS0851505F160C1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	90	-	RFQ	Datasheet	LS	Bulk	Active	SPDT	On-Mom	15A (AC)	125 V	-	Lever, Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	160gf	40gf	0.815" (20.7mm)	0.106" (2.7mm)	-	-	-25°C ~ 85°C

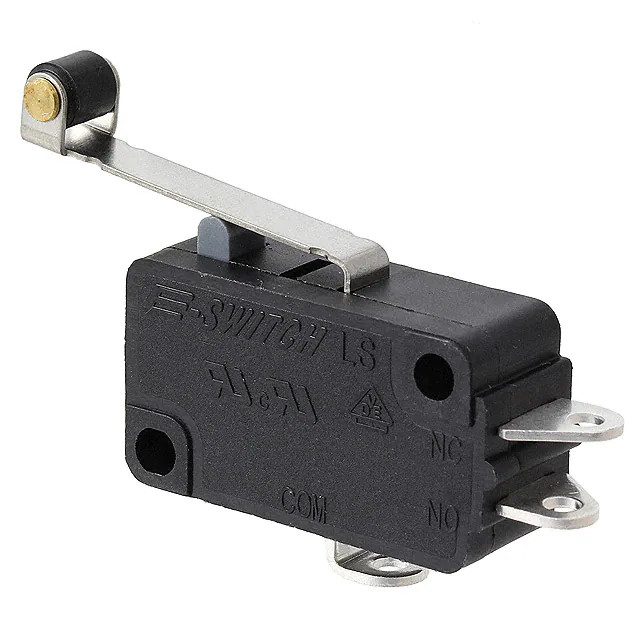

LS0851506F045S1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	56	-	RFQ	Datasheet	LS	Bulk	Active	SPDT	On-Mom	15A (AC)	125 V	-	Lever, Roller	Chassis Mount	Solder Lug	-	-	45gf	15gf	0.815" (20.7mm)	0.218" (5.5mm)	-	-	-25°C ~ 85°C
D3V-01-2C23 SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	58	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NC	On-Mom	100mA (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	5.099gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 85°C
D3V-164M-1A4 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	85	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	16A (AC), 10A (DC)	250 V	30 V	Lever, Simulated Roller	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	6.118gf	0.738" (18.7mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 105°C
