Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
D2SW3M0 SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	89	-	RFQ	Datasheet	D2SW	Bulk	Active	SPDT	On-Mom	3A (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	30gf	0.330" (8.4mm)	0.024" (0.6mm)	0.004" (0.1mm)	0.020" (0.5mm)	-40°C ~ 85°C
DS2F5AQ3 SWITCH SNAP ACT DPDT 100MA 125V C&K	99	-	RFQ	Datasheet	DS	Bulk	Active	DPDT	On-Mom	100mA (AC)	125 V	-	Round (Pin Plunger)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	-	680gf	-	0.350" (8.9mm)	-	-	0.125" (3.2mm)	-40°C ~ 85°C
D2MC-5H1 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	38	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	5A (AC)	125 V	-	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.102gfm	0.013gfm	-	21°	3°	17°	-25°C ~ 80°C
X0231341 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	44	-	RFQ	Datasheet	83132	Bulk	Active	SPDT (DB/DM)	On-Mom	5A (AC)	125 V	-	Lever, Roller	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	82gf	17gf	0.610" (15.5mm)	0.081" (2.05mm)	0.037" (0.94mm)	-	-20°C ~ 125°C
X-10GS SWITCH SNAP ACTION SPDT 10A 30V Omron Automation and Safety	10	-	RFQ	Datasheet	X	Tray	Active	SPDT	On-Mom	10A (DC)	-	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP00	-	510gf	114gf	1.110" (28.2mm)	0.035" (0.9mm)	0.007" (0.18mm)	0.062" (1.6mm)	-25°C ~ 80°C
D2RV-L11E SWITCH SNAP SPST-NO 0.25A 100V Omron Electronics Inc-EMC Div	7	-	RFQ	Datasheet	D2RV	Bulk	Active	SPST-NO	Off-Mom	250mA (DC)	-	100 V	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	25gf	-	0.591" (15.0mm)	0.071" (1.8mm)	0.040" (1.0mm)	0.015" (0.4mm)	-10°C ~ 60°C
Z-15GM2255-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	17	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Roller	Chassis Mount	Screw Terminal	IP62	-	538gf	170gf	1.156" (29.4mm)	-	0.011" (0.28mm)	0.079" (2.0mm)	-15°C ~ 80°C
Z-15HD SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	23	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 2A (DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP00	-	200 ~ 285gf	114gf	0.846" (21.5mm)	0.012" (0.3mm)	0.001" (0.025mm)	0.062" (1.6mm)	-25°C ~ 80°C

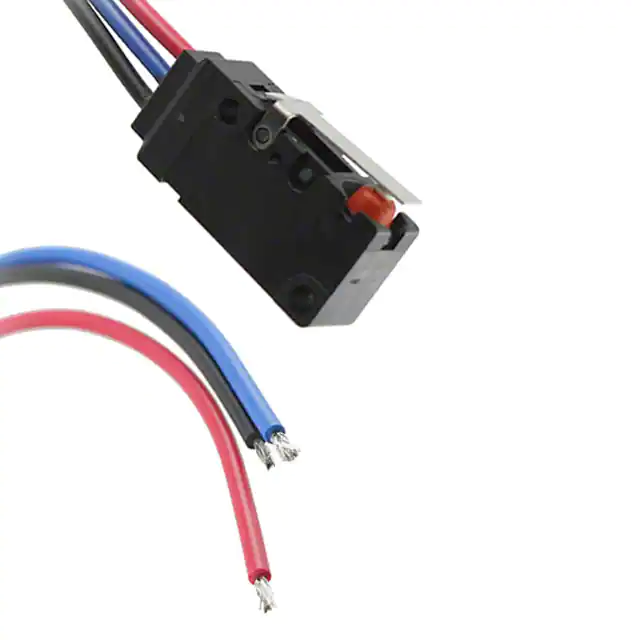

D2VW-5L1A-1MS SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	23	-	RFQ	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	20gf	0.600" (15.2mm)	0.063" (1.6mm)	0.020" (0.5mm)	0.030" (0.76mm)	-40°C ~ 85°C
Z-15E SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	23	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP00	-	625 ~ 800gf	114gf	0.625" (15.9mm)	0.030" (0.8mm)	0.005" (0.13mm)	0.005" (0.13mm)	-25°C ~ 80°C

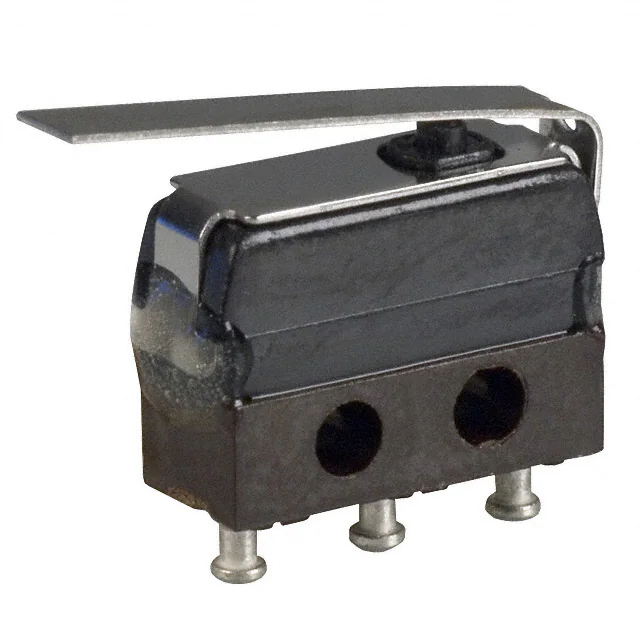

MMGGD1L0C SWITCH SNAP ACTION SPDT 7A 250V C&K	46	-	RFQ	Datasheet	MM	Bulk	Active	SPDT	On-Mom	7A (AC)	250 V	-	Lever, Straight	Chassis Mount	Solder Turret	-	-	115gf	20gf	0.330" (8.4mm)	0.090" (2.3mm)	0.026" (0.65mm)	0.045" (1.1mm)	-55°C ~ 135°C
D2VW-5-1M-0 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	16	-	RFQ	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	5A (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	30gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.039" (1.0mm)	-40°C ~ 85°C
GLLA06A2B SWITCH SNAP ACT DPST-NC 10A 300V Honeywell Sensing and Productivity Solutions	22	-	RFQ	Datasheet	GLL	Bulk	Active	DPST-NC	On-Mom	10A (AC/DC)	300 V	250 V	Side Rotary, Adjustable Roller	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	Metal Roller	8.157gfm	2.039gfm	15°	20°	-	40°	-10°C ~ 80°C
HBS2KGB4ST055C SWITCH SNAP ACTION SPDT 20A 125V C&K	39	-	RFQ	Datasheet	HB	Bulk	Active	SPDT	On-Mom	20A (AC), 500mA (DC)	125 V	125 V	Lever, Straight	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	71gf	14gf	0.720" (18.3mm)	0.380" (9.65mm)	0.080" (2.0mm)	0.190" (4.8mm)	-55°C ~ 150°C
D2VW-5L02A-2MS SWITCH SNAP ACT SPST-NC 5A 125V Omron Electronics Inc-EMC Div	30	-	RFQ	Datasheet	D2VW	Bulk	Active	SPST-NC	On-Mom	5A (AC/DC)	125 V	30 V	Lever, Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	230gf	20gf	0.815" (20.7mm)	0.063" (1.6mm)	0.020" (0.5mm)	0.030" (0.76mm)	-40°C ~ 85°C
D2MC-01FL SWITCH SNAP ACT SPDT 0.5A 125V Omron Electronics Inc-EMC Div	34	-	RFQ	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	500mA (AC/DC)	125 V	30 V	Without	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.076gfm	0.009gfm	-	21°	3°	17°	-25°C ~ 80°C
Z-15GW2255-B7-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	17	-	RFQ	Datasheet	Z	Bulk	Active	SPDT	On-Mom	15A (AC), 6A (DC)	125 V	30 V	Lever, Roller	Chassis Mount	Screw Terminal	IP62	-	200gf	42gf	1.188" (30.2mm)	-	0.031" (0.8mm)	0.094" (2.4mm)	-15°C ~ 80°C
D4N-2A31 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	6	-	RFQ	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	3A (AC), 270mA (DC)	240 V	250 V	Round (Pin Plunger)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	153gf	0.715" (18.2mm)	0.080" (2.0mm)	-	0.158" (4.0mm)	-30°C ~ 70°C
D2VW-01-3M SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	13	-	RFQ	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	100mA (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	30gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-40°C ~ 85°C
A-20GQ22-B-AS SWITCH SNAP ACTION SPDT 20A 125V Omron Automation and Safety	16	-	RFQ	Datasheet	A	Bulk	Active	SPDT	On-Mom	20A (AC), 6A (DC)	125 V	30 V	Roller Plunger	Panel Mount	Screw Terminal	IP00	-	630gf	280gf	1.313" (33.4mm)	0.051" (1.3mm)	0.014" (0.35mm)	0.141" (3.6mm)	-25°C ~ 80°C
