Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
D3V-01-1A3 SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	3,878	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	5.099gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 85°C
D2F-L30-A1 SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	2,211	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	3A (AC), 2A (DC)	125 V	30 V	Lever, Simulated Roller	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Left Side	150gf	4.079gf	0.374" (9.5mm)	-	0.020" (0.5mm)	0.020" (0.5mm)	-40°C ~ 85°C
D3V-161-3C5 SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	3,417	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	50gf	0.600" (15.2mm)	0.063" (1.6mm)	0.025" (0.6mm)	0.031" (0.79mm)	-25°C ~ 105°C
D3V-162-3C24 SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	13	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NO	Off-Mom	16A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	6.118gf	0.600" (15.2mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 105°C
ABJ141060 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	2,457	-	RFQ	Datasheet	ABJ	Bulk	Active	SPDT	On-Mom	2A (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	200gf	25gf	0.217" (5.5mm)	0.024" (0.6mm)	0.005" (0.13mm)	0.010" (0.25mm)	-40°C ~ 85°C
D3V-64-1C4 SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	20	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	6A (AC), 400mA (DC)	250 V	125 V	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	60gf	6.118gf	0.738" (18.7mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 105°C
SS-10-2 SWITCH SNAP ACT SPST-NC 10A 250V Omron Electronics Inc-EMC Div	19	-	RFQ	Datasheet	SS	Bulk	Active	SPST-NC	On-Mom	10A (AC)	250 V	-	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP40	-	150gf	25gf	0.330" (8.4mm)	0.024" (0.6mm)	0.005" (0.13mm)	0.015" (0.4mm)	-25°C ~ 85°C
D3V-11-1C24-K SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	6	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	11A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	100gf	15gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C
D3V-115M-2C5 SWITCH SNAP ACT SPST-NC 11A 250V Omron Electronics Inc-EMC Div	3	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NC	On-Mom	11A (AC), 6A (DC)	250 V	30 V	Lever, Roller	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	240gf	50gf	0.815" (20.7mm)	0.063" (1.6mm)	0.025" (0.6mm)	0.031" (0.79mm)	-25°C ~ 105°C
SS-01-F-3 SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	3,029	-	RFQ	Datasheet	SS	Bulk	Active	SPST-NO	Off-Mom	100mA (AC/DC)	125 V	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	IP40	-	50gf	4.079gf	0.330" (8.4mm)	0.020" (0.5mm)	0.004" (0.1mm)	0.020" (0.5mm)	-25°C ~ 85°C

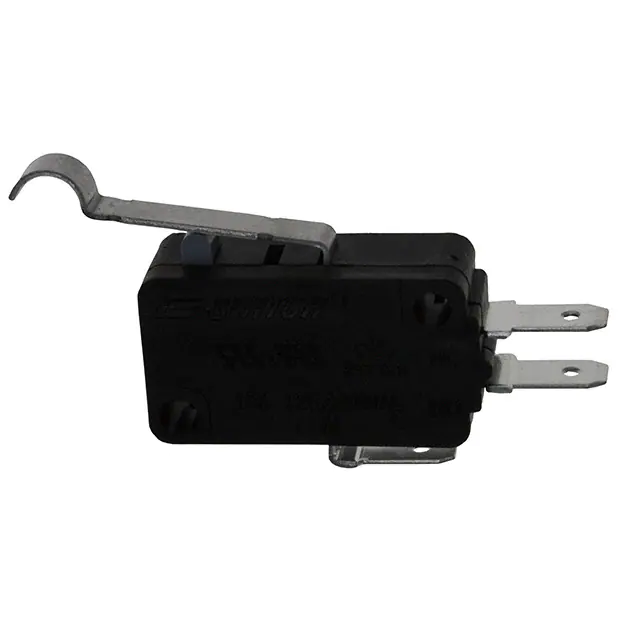

LS0851504F140C1A SWITCH SNAP ACTION SPDT 15A 125V E-Switch	2,777	-	RFQ	Datasheet	LS	Bulk	Active	SPDT	On-Mom	15A (AC)	125 V	-	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	140gf	40gf	0.748" (19.0mm)	0.205" (5.2mm)	-	-	-25°C ~ 85°C

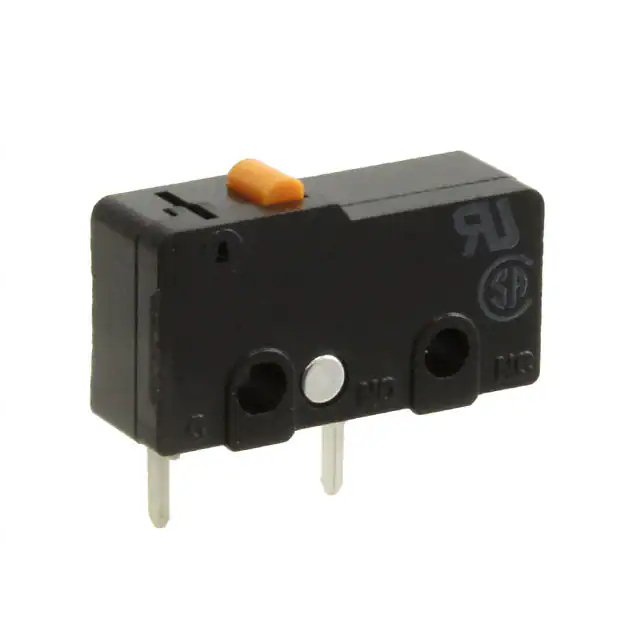

SS-10-3D SWITCH SNAP ACT SPST-NO 10A 250V Omron Electronics Inc-EMC Div	2,796	-	RFQ	Datasheet	SS	Bulk	Active	SPST-NO	Off-Mom	10A (AC)	250 V	-	Round (Pin Plunger)	Through Hole	PC Pin	IP40	-	150gf	25gf	0.330" (8.4mm)	0.024" (0.6mm)	0.005" (0.13mm)	0.015" (0.4mm)	-25°C ~ 85°C
D3V-163-2C4 SWITCH SNAP ACT SPST-NC 16A 250V Omron Electronics Inc-EMC Div	8	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NC	On-Mom	16A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	35gf	-	0.600" (15.2mm)	0.354" (9.0mm)	0.110" (2.8mm)	0.125" (3.2mm)	-25°C ~ 105°C

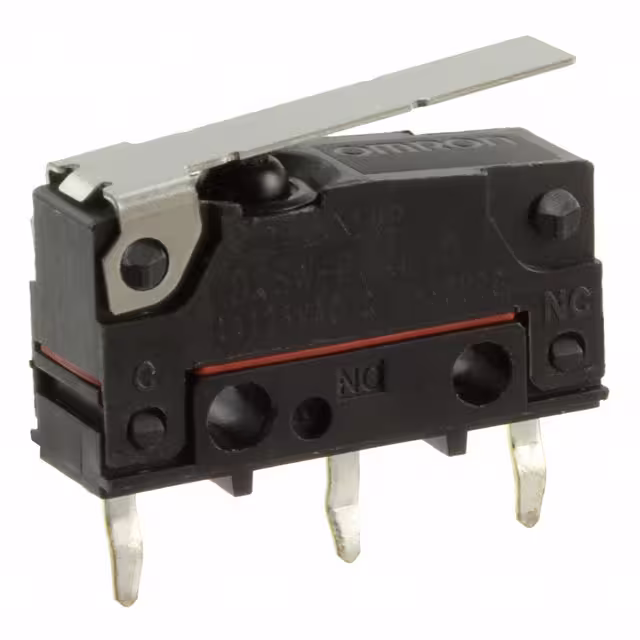

D2SW-P01L1D SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	3,649	-	RFQ	Datasheet	D2SW-P	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Lever, Straight	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	61gf	5.099gf	0.345" (8.8mm)	-	0.031" (0.8mm)	0.030" (0.76mm)	-20°C ~ 70°C
D2GW-A12H SEALED SWITCH PCB PIN PLUNGER Omron Electronics Inc-EMC Div	4,857	-	RFQ	-	D2GW	Tray	Active	SPST-NC	On-Mom	10mA (DC)	-	13.5 V	Lever, Straight	Panel Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	87gf	2.000gf	0.356" (9.05mm)	-	0.055" (1.4mm)	0.175" (4.45mm)	-40°C ~ 85°C
D3V-014M-1C23 SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	2,340	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	30gf	-	0.738" (18.7mm)	0.157" (4.0mm)	0.060" (1.5mm)	0.062" (1.6mm)	-25°C ~ 85°C
D2F-01L30-A SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	4,127	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Simulated Roller	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Right Side	55gf	4.079gf	0.374" (9.5mm)	-	0.020" (0.5mm)	0.020" (0.5mm)	-40°C ~ 85°C
D3V-16-2C4 SWITCH SNAP ACT SPST-NC 16A 250V Omron Electronics Inc-EMC Div	3	-	RFQ	Datasheet	D3V	Bulk	Active	SPST-NC	On-Mom	16A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	100gf	15gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C
D2F-01FL3-A1 SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	2,617	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Simulated Roller	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Left Side	40gf	2.039gf	0.335" (8.5mm)	-	0.018" (0.45mm)	0.020" (0.5mm)	-40°C ~ 85°C
D3V-16-1C4 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	4,703	-	RFQ	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	16A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	100gf	15gf	0.579" (14.7mm)	0.047" (1.2mm)	0.016" (0.4mm)	0.040" (1.0mm)	-25°C ~ 105°C
