Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature
AVM3405P9-A SWITCH SNAP ACTION SPDT 10A 250V Panasonic Electric Works	4,201	-	RFQ	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	10A (AC)	250 V	-	Round (Pin Plunger)	Through Hole	PC Pin	-	-	150gf	20gf	0.330" (8.4mm)	0.024" (0.6mm)	0.004" (0.1mm)	0.015" (0.4mm)	-25°C ~ 85°C
AVM3405P-A SWITCH SNAP ACTION SPDT 10A 250V Panasonic Electric Works	4,186	-	RFQ	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	10A (AC)	250 V	-	Round (Pin Plunger)	Through Hole	PC Pin	-	-	150gf	20gf	0.330" (8.4mm)	0.024" (0.6mm)	0.004" (0.1mm)	0.015" (0.4mm)	-25°C ~ 85°C

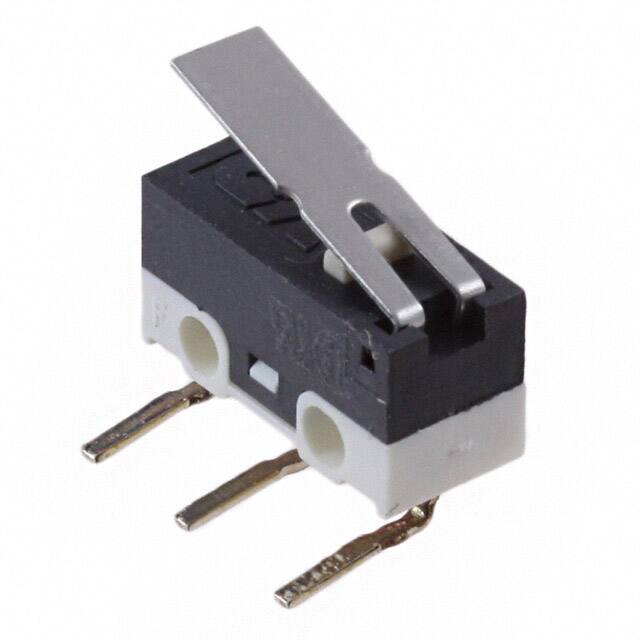

ZMCHF7L3R SWITCH SNAP ACTION SPDT 3A 125V C&K	3,330	-	RFQ	Datasheet	ZM	Tray	Active	SPDT	On-Mom	3A (AC)	125 V	-	Lever, Leaf	Through Hole, Right Angle	PC Pin	-	-	30gf	-	0.330" (8.4mm)	-	-	-	-30°C ~ 85°C
ZMCJF7T13L SWITCH SNAP ACTION SPDT 3A 125V C&K	2,091	-	RFQ	Datasheet	ZM	Tray	Active	SPDT	On-Mom	3A (AC)	125 V	-	Lever, Simulated Roller	Through Hole, Right Angle	PC Pin	-	-	40gf	-	0.413" (10.5mm)	-	-	-	-30°C ~ 85°C
MBZ101A01B03A02 SNAP ACTING SWITCH MB APEM Inc.	4,461	-	RFQ	-	MBZ	Bulk	Active	SPST-NO	Off-Mom	10A (AC)	250 V	-	Lever, Straight	Through Hole	PC Pin	-	-	285gf	-	0.472" (12.0mm)	0.354" (9.0mm)	0.060" (1.5mm)	0.100" (2.5mm)	-40°C ~ 85°C
TF2CFH8ST1440C SWITCH SNAP ACTION SPDT 6A 125V C&K	2,039	-	RFQ	Datasheet	TF2	Bulk	Active	SPDT	On-Mom	6A (AC)	125 V	-	Lever, Simulated Roller	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	28gf	3.000gf	0.736" (18.7mm)	0.218" (5.5mm)	0.045" (1.1mm)	0.055" (1.4mm)	-40°C ~ 85°C
V-153-1A5-T SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	3,805	-	RFQ	Datasheet	V	Bulk	Active	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Lever, Straight	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	70gf	6.118gf	0.579" (14.7mm)	0.354" (9.0mm)	0.110" (2.8mm)	0.079" (2.0mm)	-25°C ~ 150°C
V7-1B29P07-022 SWITCH SNAP ACT SPST-NO 11A 125V Honeywell Sensing and Productivity Solutions	4,909	-	RFQ	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	11A (AC), 500mA (DC)	125 V	125 V	Lever, Straight	Through Hole	PC Pin	-	-	82gf	8.000gf	0.602" (15.3mm)	0.120" (3.0mm)	0.028" (0.7mm)	0.070" (1.8mm)	-40°C ~ 85°C
ASQ10810 SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works	2,132	-	RFQ	Datasheet	ASQ1	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Round (Pin Plunger)	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Left Side	153gf	-	0.330" (8.4mm)	-	-	0.087" (2.2mm)	-40°C ~ 85°C
MBZ101A01A02X01 SNAP ACTING SWITCH MB APEM Inc.	2,930	-	RFQ	Datasheet	MBZ	Bulk	Active	SPST-NC	On-Mom	10A (AC)	250 V	-	Round (Pin Plunger)	Chassis Mount	Solder Lug	-	-	285gf	-	0.331" (8.40mm)	0.047" (1.2mm)	0.005" (0.13mm)	0.024" (0.6mm)	-40°C ~ 85°C
D2F-L20-D SWITCH SNAP ACTION SPDT Omron Electronics Inc-EMC Div	3,257	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	-	-	-	-	-	-	IP40	-	-	-	-	-	-	-	-40°C ~ 85°C
D2F-01L20 SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	2,494	-	RFQ	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Roller	Through Hole	PC Pin	IP40	-	80gf	5.000gf	0.512" (13.0mm)	-	0.020" (0.5mm)	0.022" (0.55mm)	-40°C ~ 85°C
V15T16-CZ100 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	3,697	-	RFQ	Datasheet	V15	Bulk	Active	SPDT	On-Mom	16A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	100gf	25gf	0.579" (14.7mm)	0.060" (1.5mm)	0.020" (0.5mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T26-C1P300 SWITCH BASIC (V15), 26A, S.P.N.O Honeywell Sensing and Productivity Solutions	3,004	-	RFQ	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZV50E10A01 SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	4,926	-	RFQ	Datasheet	ZV	Bulk	Obsolete	SPDT	On-Mom	6A (AC)	125 V	-	Round (Pin Plunger)	Chassis Mount	Solder Lug	-	-	146gf	35gf	0.449" (11.4mm)	0.043" (1.1mm)	0.008" (0.2mm)	0.015" (0.4mm)	-40°C ~ 120°C
LS085R100F100C1A SWITCH SNAP ACT SPDT 0.4VA 20V E-Switch	4,623	-	RFQ	Datasheet	LS	Bulk	Active	SPDT	On-Mom	0.4VA (AC/DC)	20 V	20 V	Round (Pin Plunger)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	100gf	30gf	0.579" (14.7mm)	0.080" (2.0mm)	-	-	-25°C ~ 85°C
ASQ15410 SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works	3,335	-	RFQ	-	ASQ1	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Round (Pin Plunger)	Chassis Mount	Solder Lug	-	-	153gf	-	0.331" (8.40mm)	-	-	0.087" (2.2mm)	-40°C ~ 85°C
SSG-01L3H SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	3,806	-	RFQ	Datasheet	SSG	Bulk	Active	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Lever, Simulated Roller	Chassis Mount	Solder Lug	IP40	-	61gf	6.118gf	0.420" (10.7mm)	-	0.031" (0.8mm)	0.040" (1.0mm)	-25°C ~ 125°C
D2SW-P2L3B SWITCH SNAP ACTION SPDT 2A 250V Omron Electronics Inc-EMC Div	4,023	-	RFQ	Datasheet	D2SW-P	Bulk	Active	SPDT	On-Mom	2A (AC/DC)	250 V	30 V	Lever, Simulated Roller	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	61gf	5.000gf	0.420" (10.7mm)	-	0.031" (0.8mm)	0.030" (0.76mm)	-20°C ~ 70°C
ABS1112449 SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works	3,701	-	RFQ	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	100mA (DC)	-	30 V	Lever, Straight	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	-	35gf	2.957gf	0.346" (8.80mm)	0.110" (2.8mm)	0.031" (0.80mm)	0.047" (1.20mm)	-40°C ~ 85°C
