Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Circuit	Switch Function	Current Rating (Amps)	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Mounting Type	Termination Style	Ingress Protection	Features	Operating Force	Release Force	Operating Position	Pretravel	Differential Travel	Overtravel	Operating Temperature

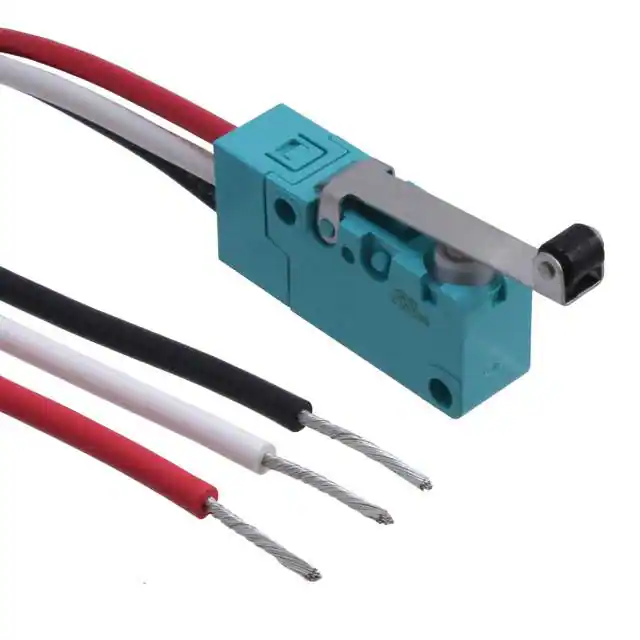

ABV1616619 SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	3,243	-	RFQ	Datasheet	ABV	Bulk	Obsolete	SPDT	On-Mom	3A (AC)	250 V	-	Lever, Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	20gf	0.815" (20.7mm)	0.125" (3.2mm)	0.047" (1.2mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABV1636619 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	4,865	-	RFQ	-	ABV	Bulk	Obsolete	SPST-NO	Off-Mom	3A (AC)	250 V	-	Lever, Roller	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	20gf	0.815" (20.7mm)	0.125" (3.2mm)	0.047" (1.2mm)	0.047" (1.2mm)	-40°C ~ 85°C
AGX206 SWITCH SNAP ACT DPST-NO 10A 125V Panasonic Electric Works	3,599	-	RFQ	Datasheet	AGX	Bulk	Obsolete	DPST-NO	Off-Mom	10A (AC), 6A (DC)	125 V	30 V	Round (Pin Plunger)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	IP40	-	400gf	-	0.276" (7.0mm)	-	-	0.158" (4.0mm)	-25°C ~ 85°C
AGX225 SWITCH SNAP ACT DPST-NO 16A 125V Panasonic Electric Works	4,398	-	RFQ	Datasheet	AGX	Bulk	Obsolete	DPST-NO	Off-Mom	16A (AC)	125 V	-	Round (Pin Plunger)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	IP40	-	600gf	-	0.189" (4.8mm)	-	-	0.079" (2.0mm)	-25°C ~ 85°C
AGX726 SWITCH SNAP ACT 3PST-NO 16A 125V Panasonic Electric Works	3,194	-	RFQ	Datasheet	AGX	Bulk	Obsolete	3PST-NO	Off-Mom	16A (AC)	125 V	-	Round (Pin Plunger)	Panel Mount, Snap-In	Quick Connect - 0.110"/0.250"	IP40	-	600gf	-	0.276" (7.0mm)	-	-	0.158" (4.0mm)	-25°C ~ 85°C
AH1462A-A SWITCH SNAP ACT SPST-NO 3A 125V Panasonic Electric Works	3,774	-	RFQ	Datasheet	AH1	Tube	Obsolete	SPST-NO	Off-Mom	3A (AC), 2A (DC)	125 V	30 V	Lever, Straight	Through Hole	PC Pin	-	-	50gf	5.099gf	0.268" (6.8mm)	0.083" (2.1mm)	0.020" (0.5mm)	0.022" (0.55mm)	-25°C ~ 85°C
AH1484-A SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works	4,291	-	RFQ	Datasheet	AH1	Tube	Obsolete	SPDT	On-Mom	1A (AC/DC)	125 V	30 V	Lever, Simulated Roller	Through Hole	PC Pin	-	-	26gf	2.039gf	0.374" (9.5mm)	0.083" (2.1mm)	0.020" (0.5mm)	0.020" (0.5mm)	-25°C ~ 85°C
AH166261-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,134	-	RFQ	Datasheet	AH1	Tube	Obsolete	SPDT	On-Mom	100mA (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	-	-	50gf	5.099gf	0.268" (6.8mm)	0.083" (2.1mm)	0.020" (0.5mm)	0.022" (0.55mm)	-25°C ~ 85°C
AH16829A SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works	4,792	-	RFQ	Datasheet	AH1	Tape & Box (TB)	Obsolete	SPDT	On-Mom	1A (AC/DC)	125 V	30 V	Lever, Straight	Chassis Mount	Solder Lug	-	-	25gf	2.500gf	0.268" (6.8mm)	0.083" (2.1mm)	0.020" (0.5mm)	0.022" (0.55mm)	-25°C ~ 85°C

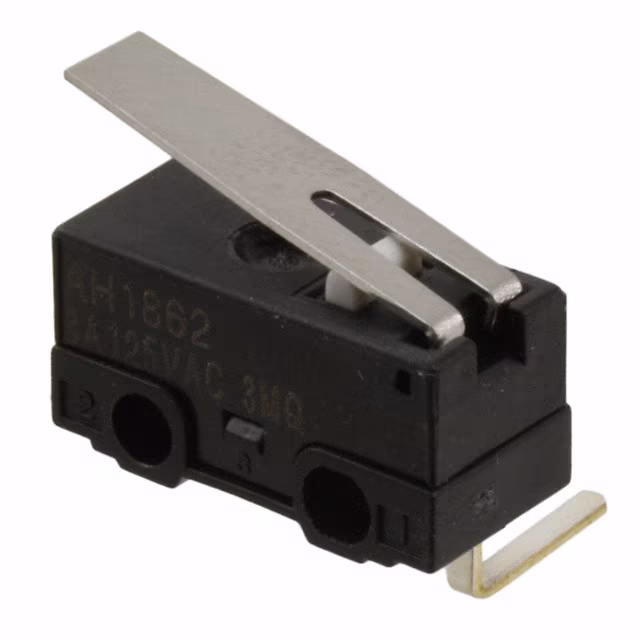

AH1862-A SWITCH SNAP ACTION SPDT 3A 125V Panasonic Electric Works	3,564	-	RFQ	Datasheet	AH1	Tube	Obsolete	SPDT	On-Mom	3A (AC), 2A (DC)	125 V	30 V	Lever, Straight	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Left Side	50gf	5.099gf	0.268" (6.8mm)	0.083" (2.1mm)	0.020" (0.5mm)	0.022" (0.55mm)	-25°C ~ 85°C
AH71503569-A SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	4,439	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	5A (AC), 500mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	50gf	12gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH71503609-A SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	3,508	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	5A (AC), 500mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	50gf	12gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH71504569-A SWITCH SNAP ACTION SPDT 10A 250V Panasonic Electric Works	2,221	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	10A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	100gf	25gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH71504609-A SWITCH SNAP ACTION SPDT 10A 250V Panasonic Electric Works	4,579	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	10A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	100gf	25gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH71505559-A SWITCH SNAP ACTION SPDT 15A 250V Panasonic Electric Works	2,235	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	200gf	50gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH715059-A SWITCH SNAP ACTION SPDT 15A 250V Panasonic Electric Works	4,435	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	200gf	50gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH71506559-A SWITCH SNAP ACTION SPDT 15A 250V Panasonic Electric Works	4,474	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	300gf	75gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH715069-A SWITCH SNAP ACTION SPDT 15A 250V Panasonic Electric Works	4,063	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	300gf	75gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH71507559-A SWITCH SNAP ACTION SPDT 15A 250V Panasonic Electric Works	4,894	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	400gf	100gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
AH715079-A SWITCH SNAP ACTION SPDT 15A 250V Panasonic Electric Works	4,283	-	RFQ	Datasheet	AH7	Bulk	Obsolete	SPDT	On-Mom	15A (AC), 600mA (DC)	250 V	125 V	Round (Pin Plunger)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	400gf	100gf	0.579" (14.7mm)	0.063" (1.6mm)	0.016" (0.4mm)	0.030" (0.76mm)	-25°C ~ 80°C
