| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|



                 |

                    S14OB381-057MIC MEMS ANALOG -38dB OMNI Goertek Microelectronics Inc.  |
                10,493 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 400 Ohms | - | 2.3 V ~ 3.6 V | 200 µA | Bottom | - | Solder Pads | 0.132" L x 0.098" W (3.35mm x 2.50mm) | 0.043" (1.08mm) | Rectangular | - | - | |



                 |

                    S15OB381-124MIC MEMS ANALOG -38dB OMNI Goertek Microelectronics Inc.  |
                48,572 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -38dB ±1dB @ 94dB SPL | 62.5dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 150 µA | Top | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.039" (1.00mm) | Rectangular | - | - | |



                 |

                    S18OB381-046MICROPHONE MEMS ANALOG -38DB Goertek Microelectronics Inc.  |
                32,425 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | - | - | -38dB ±1dB | 65dB | - | - | - | - | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - | |



                 |

                    SD18OB371-077MIC MEMS DIGITAL -37DB OMNI Goertek Microelectronics Inc.  |
                45,277 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | - | Omnidirectional | 100 Hz ~ 8 kHz | -37dB ±1dB @ 94dB SPL | 66dB | - | - | 1.62 V ~ 3.6 V | 1 mA | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.08mm) | Rectangular | - | - | |



                 |

                    SD33OT261-003MIC MEMS DIGITAL -26DB OMNI Goertek Microelectronics Inc.  |
                25,793 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | - | Omnidirectional | 100 Hz ~ 8 kHz | -26dB ±1dB @ 94dB SPL | 64dB | - | 1.8 V | 1.62 V ~ 3.6 V | 750 µA | Top | - | Solder Pads | 0.157" L x 0.079" W (4.00mm x 2.00mm) | 0.047" (1.20mm) | Rectangular | - | - | |



                 |

                    SD18OB261-050MIC MEMS DIGITAL -26dB OMNI Goertek Microelectronics Inc.  |
                36,840 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | - | Omnidirectional | 100 Hz ~ 8 kHz | -26dB ±1dB @ 94dB SPL | 65dB | - | 1.8 V | 1.62 V ~ 3.6 V | 650 µA | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.08mm) | Rectangular | - | - | |



                 |

                    S08OB381-045MIC MEMS ANALOG -38dB OMNI Goertek Microelectronics Inc.  |
                23,791 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -38dB ±1dB @ 94dB SPL | 63dB | 400 Ohms | - | 1.5 V ~ 3.6 V | 150 µA | Top | - | Solder Pads | 0.148" L x 0.118" W (3.76mm x 3.00mm) | 0.047" (1.20mm) | Rectangular | - | - | |



                 |

                    S18OB381-028MIC MEMS ANALOG -38dB OMNI Goertek Microelectronics Inc.  |
                30,970 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 8 kHz | -38dB ±1dB @ 94dB SPL | 66dB | 400 Ohms | - | 1.6 V ~ 3.6 V | 200 µA | Top | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.043" (1.08mm) | Rectangular | - | - | |



                 |

                    SD28OB341-015MIC MEMS DIGITAL -34DB OMNI Goertek Microelectronics Inc.  |
                37,312 |

                     |



                       Datasheet  |
                   - | Tape & Reel (TR) | Active | MEMS (Silicon) | - | Omnidirectional | 100 Hz ~ 8 kHz | -34dB ±1dB @ 94dB SPL | 69dB | - | - | 1.62 V ~ 3.6 V | 1 mA | Top | - | Solder Pads | 0.142" L x 0.098" W (3.60mm x 2.50mm) | 0.043" (1.10mm) | Rectangular | - | - | |



                 |

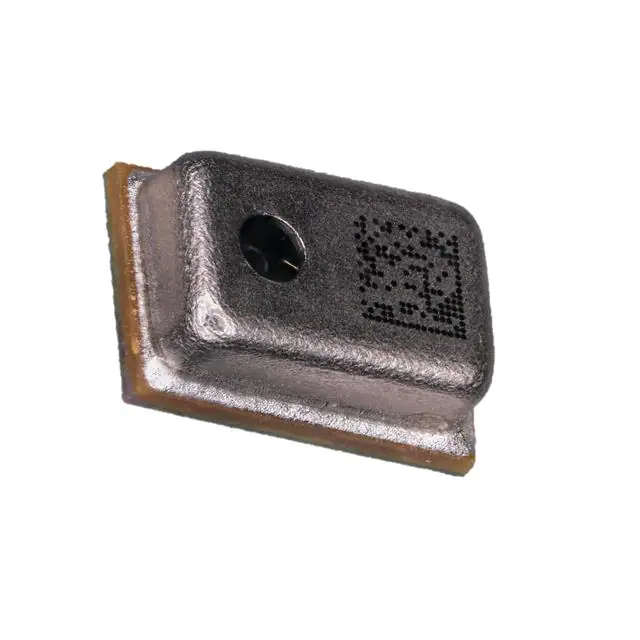

                    S15OT421-017MIC MEMS ANALOG -42dB OMNI Goertek Microelectronics Inc.  |
                27,675 |

                     |



                       Datasheet  |
                   * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
