Photonics - Counters, Detectors, SPCM (Single Photon Counting Module)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Photon Detection Efficiency | Wavelength Range | Dark Count Rate | Wavelength - Peak | Max Count Rate | Dead Time | Voltage - Supply | Output | Detector Type | Active Area | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

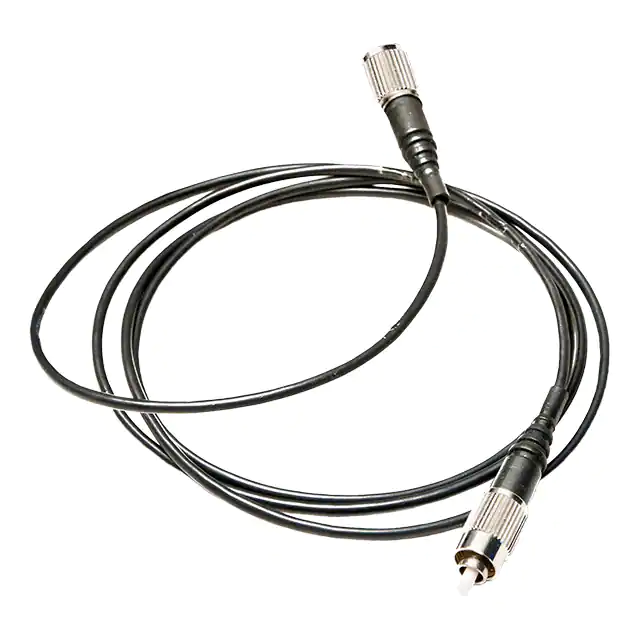

SPCM-QC9 FIBERSPCM-QC9 MULTIMODE 100 FC + FC Excelitas Technologies |
4,222 |
|
Datasheet |
 |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPCM-AQRH-10PHOTON COUNT MODULE <1500CPS Excelitas Technologies |
4,752 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-FCPHOTON COUNT MODULE <1500CPS FC Excelitas Technologies |
5,093 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-11-FCPHOTON COUNT MODULE 1000CPS FC Excelitas Technologies |
5,207 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1000cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-12-FCPHOTON COUNT MODULE 500CPS FC Excelitas Technologies |
4,757 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-13PHOTON COUNT MODULE 250CPS Excelitas Technologies |
5,162 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
SPCM-AQRH-13-FCPHOTON COUNT MODULE 250CPS FC Excelitas Technologies |
5,540 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

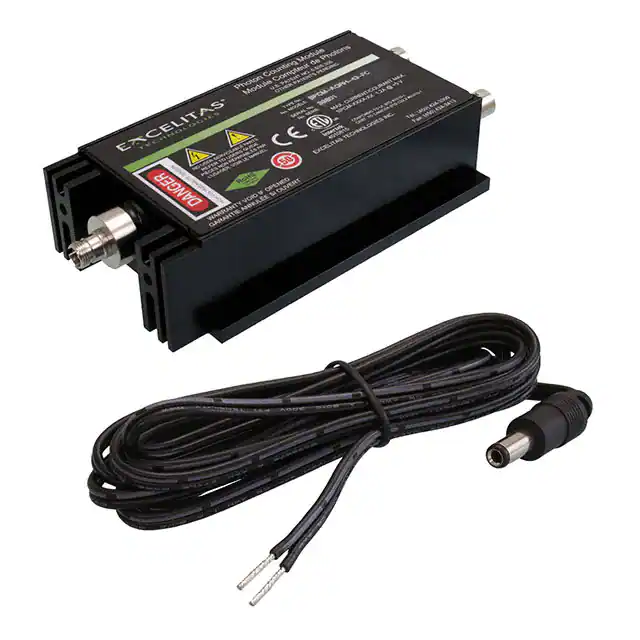

SPCM-AQRH-43-FCPHOTON COUNTING MODULE 4.4V Excelitas Technologies |
3,214 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

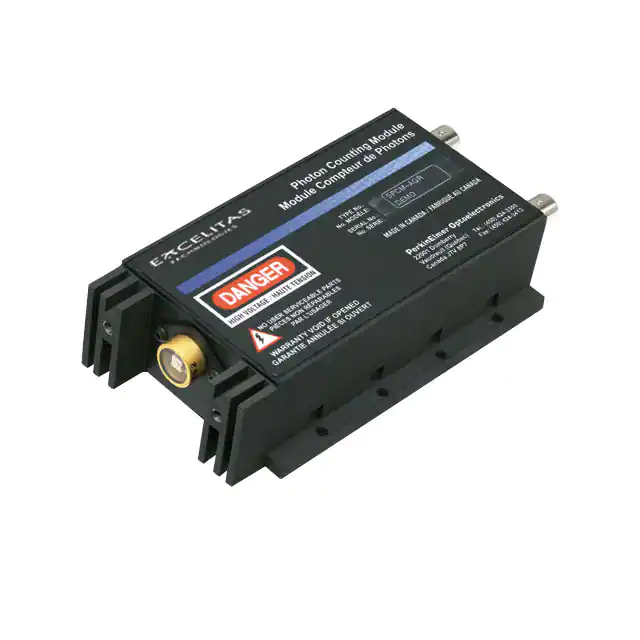

SPCM-AQRH-14PHOTON COUNT MODULE 100CPS Excelitas Technologies |
5,452 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 100cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-15-FCPHOTON COUNT MODULE <50CPS FC Excelitas Technologies |
5,617 |
|
Datasheet |
|
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 50cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
