Phototransistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Dark (Id) (Max) | Wavelength | Viewing Angle | Power - Max | Mounting Type | Orientation | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OP598BSENSOR PHOTO 890NM TOP VIEW TO18 |
3,293 |
|
Datasheet |
 |
- | TO-18-2 | Bulk | Active | 30 V | 50 mA | 100 nA | 890nm | - | 250 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|

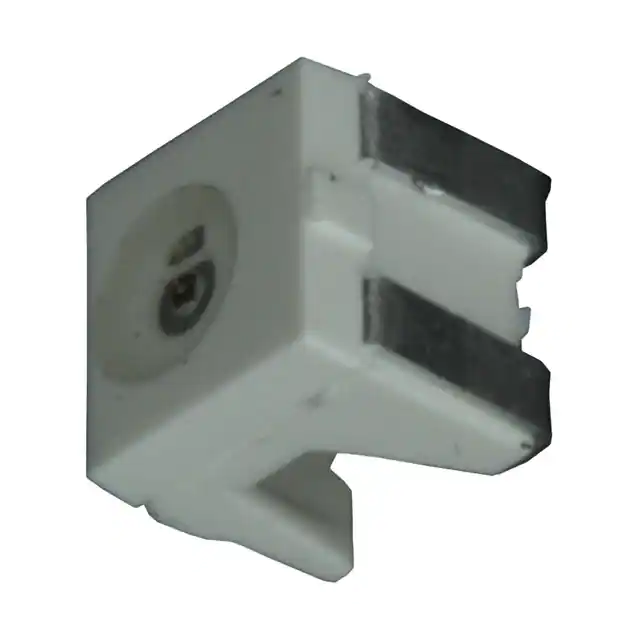

SFH 325-ZSENSOR PHOTO 980NM SIDE VIEW SMD |
5,795 |
|
Datasheet |
|
SIDELED | 2-SMD, Boomerang | Tape & Reel (TR) | Active | 35 V | 15 mA | 50 nA | 980nm | 120° | 165 mW | Surface Mount, Right Angle | Side View | -40°C ~ 100°C | - | - |
|
SFH 320 FA-3/4-ZSENSOR PHOTO 980NM TOP VIEW 2LCC |
4,094 |
|
Datasheet |
|
TOPLED | 2-LCC (J-Lead) | Tape & Reel (TR) | Active | 35 V | 15 mA | 50 nA | 980nm | 120° | 165 mW | Surface Mount | Top View | -40°C ~ 100°C | - | - |
|
PT100MF0MP1SENSOR PHOTO 910NM UNIVERSAL SMD |
3,085 |
|
Datasheet |
|
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | 35 V | 20 mA | 100 nA | 910nm | 30° | 75 mW | Surface Mount | Universal | -30°C ~ 85°C | - | - |
|

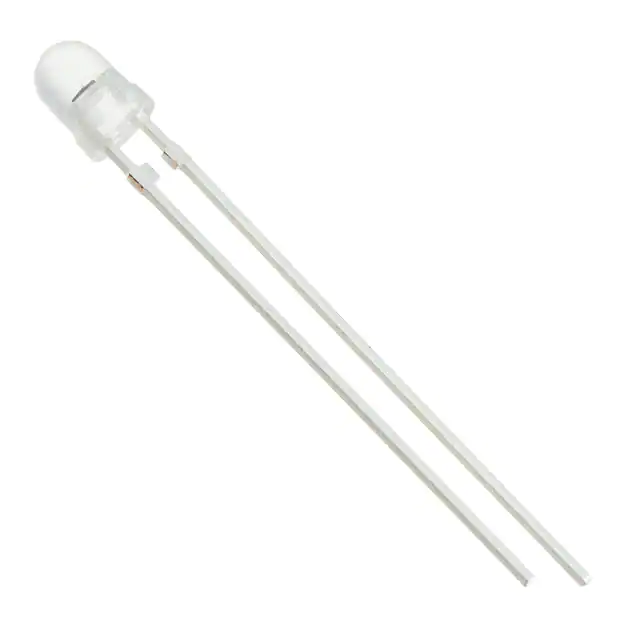

BPW85APHOTOTRANSISTOR 450 TO 1080 NM |
3,144 |
|
Datasheet |
|
- | Radial | Bulk | Active | 70 V | 100 mA | 200 nA | 850nm | 50° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
SFH 325 FA-3-ZSENSOR PHOTO 980NM SID VIEW PLCC |
3,466 |
|
Datasheet |
|
SIDELED | 2-LCC (J-Lead) | Tape & Reel (TR) | Active | 35 V | 15 mA | 50 nA | 980nm | 120° | 165 mW | Surface Mount, Right Angle | Side View | -40°C ~ 100°C | - | - |
|
OP506BSENSOR PHOTO 935NM TOP VIEW T1 |
4,900 |
|
Datasheet |
|
- | T-1 | Bulk | Active | 30 V | 5.95 mA | 100 nA | 935nm | - | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
SFH 314 FASENSOR PHOTO 870NM TOP VIEW RAD |
5,099 |
|
Datasheet |
|
- | Radial | Bulk | Active | 70 V | 50 mA | 200 nA | 870nm | 80° | 200 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
OP535ASENSOR PHOTO 935NM TOP VIEW T1 |
4,797 |
|
Datasheet |
|
- | T-1 | Bulk | Active | 15 V | 32 mA | 100 nA | 935nm | - | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
QSD124A4R0SENSOR PHOTO 880NM TOP VIEW RAD |
5,686 |
|
Datasheet |
|
- | Radial, 5mm Dia (T 1 3/4) | Tape & Reel (TR) | Active | 30 V | - | 100 nA | 880nm | 24° | 100 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
|
QSD123A4R0SENSOR PHOTO 880NM TOP VIEW RAD |
5,040 |
|
Datasheet |
|
- | Radial, 5mm Dia (T 1 3/4) | Tape & Reel (TR) | Active | 30 V | 16 mA | 100 nA | 880nm | 24° | 100 mW | Through Hole | Top View | - | - | - |
|
QSE113E3R0SENSOR PHOTO 880NM SIDE VIEW RAD |
5,139 |
|
Datasheet |
|
- | Radial, Side View | Tape & Reel (TR) | Active | 30 V | - | 100 nA | 880nm | 50° | 100 mW | Through Hole | Side View | -40°C ~ 100°C | - | - |
|

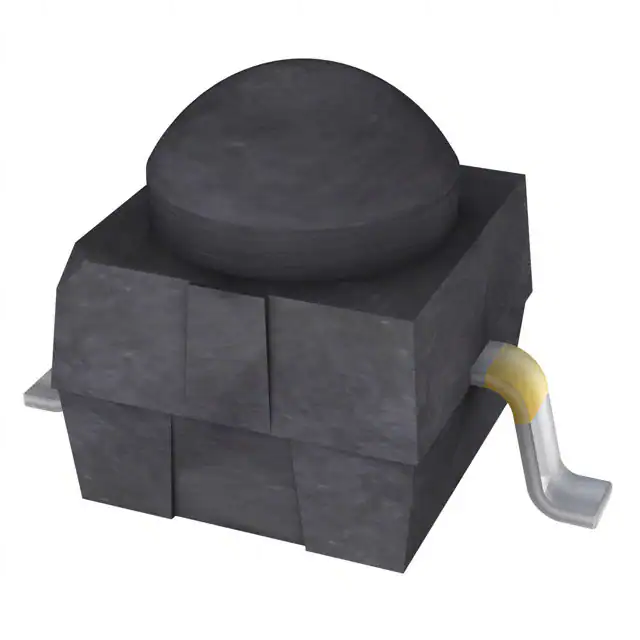

VEMT2023X01PHOTOTRANSISTOR 790 TO 970 NM |
4,577 |
|
Datasheet |
|
- | 2-SMD, Gull Wing | Tape & Reel (TR) | Active | 20 V | 50 mA | 1 nA | 860nm | 70° | 100 mW | Surface Mount | Top View | -40°C ~ 100°C | Automotive | AEC-Q101 |
|

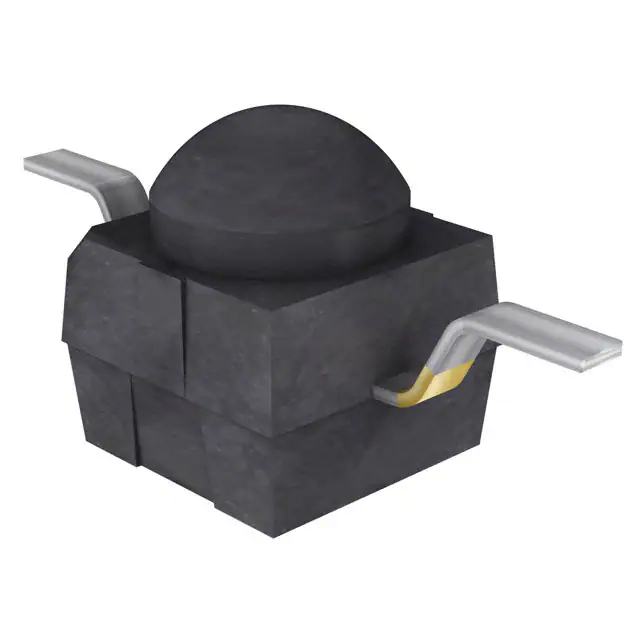

VEMT2003X01PHOTOTRANSISTOR 790 TO 970 NM |
4,470 |
|
Datasheet |
|
- | 2-SMD, Z-Bend | Tape & Reel (TR) | Active | 20 V | 50 mA | 1 nA | 860nm | 70° | 100 mW | Surface Mount | Top View | -40°C ~ 100°C | Automotive | AEC-Q101 |
|
|
SFH 314 FA-2/3SENSOR PHOTO 870NM TOP VIEW RAD |
5,618 |
|
Datasheet |
|
- | Radial | Bulk | Active | 70 V | 50 mA | 200 nA | 870nm | 80° | 200 mW | Through Hole | Top View | -40°C ~ 100°C | - | - |
|
OP560CSENSOR PHOTO 935NM SIDE VIEW RAD |
5,679 |
|
Datasheet |
|
- | Radial | Bulk | Active | 15 V | 9.8 mA | 100 nA | 935nm | 56° | 100 mW | Through Hole | Side View | -40°C ~ 100°C | - | - |
|
QTLP610CPDTRSENSOR PHOTO 860NM SIDE VIEW SMD |
5,538 |
|
Datasheet |
|
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | 30 V | 500 µA | 100 nA | 860nm | 160° | 75 mW | Surface Mount | Side View | -25°C ~ 85°C | - | - |
|
|
OP560ASENSOR PHOTO 935NM SIDE VIEW RAD |
4,655 |
|
Datasheet |
|
- | Radial | Bulk | Active | 15 V | 9.8 mA | 100 nA | 935nm | 56° | 100 mW | Through Hole | Side View | -40°C ~ 100°C | - | - |
|
OP801WSLSENSOR PHOTO 890NM TOP TO206AA |
3,659 |
|
Datasheet |
|
- | TO-206AA, TO-18-3 Metal Can | Bulk | Active | 30 V | 50 mA | 100 nA | 890nm | - | 250 mW | Through Hole | Top View | -65°C ~ 125°C | - | - |
|
OP600BSENSOR PHOTO 890NM TOP VIEW PILL |
4,333 |
|
Datasheet |
|
- | Pill | Bulk | Active | 25 V | 50 mA | 100 nA | 890nm | - | 50 mW | Surface Mount | Top View | -65°C ~ 125°C | - | - |
