Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACSL-6400-00TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
3,958 |
|
Datasheet |
 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 4/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6400-50TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
5,461 |
|
Datasheet |
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 4/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6400-06TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
3,431 |
|
Datasheet |
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 4/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
HCPL-063LOPTOISO 3.75KV 2CH OPEN COLL 8SO |
3,772 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
OPI1268SOPTOISO 20KV OPEN COLLECTOR |
5,570 |
|
Datasheet |
|
- | 6-DIP (1.100", 27.94mm), 5 Leads | Tube | Active | 1 | 1/0 | 20000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 100ns, 100ns | - | 1.4V | 30mA | 7V | - | - | -50°C ~ 100°C | Through Hole | - |
|
|
ACSL-6420-00TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
4,528 |
|
Datasheet |
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 2/2 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6410-00TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
5,934 |
|
Datasheet |
|
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 3/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6410-50TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
4,082 |
|
Datasheet |
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 3/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6420-50TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
5,613 |
|
Datasheet |
|
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 2/2 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
HCPL-063N-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
3,814 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063N-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
5,235 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0721OPTOISO 3.75KV PUSH PULL 8SO |
5,733 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|

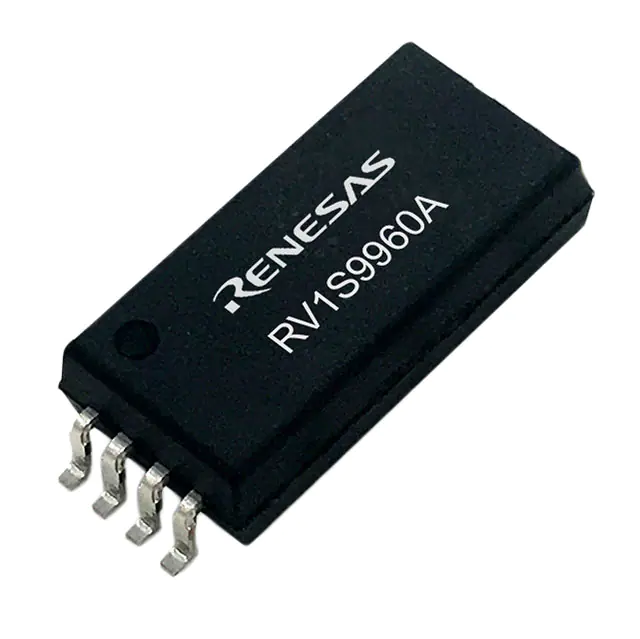

RV1S9960ACCSP-10YV#SC0HI-SPEED OPTOCPLR 8PIN LSDIP |
3,958 |
|
Datasheet |
|
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
HCPL-2231OPTOISO 3.75KV 2CH PSH PULL 8DIP |
5,591 |
|
Datasheet |
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-2231#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
4,079 |
|
Datasheet |
|
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2430-000EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
3,625 |
|
Datasheet |
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2430-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
5,889 |
|
Datasheet |
|
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2430OPTOISO 3.75KV 2CH PSH PULL 8DIP |
3,568 |
|
Datasheet |
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
6N134/883BOPTOISO 1.5KV 2CH OPEN COL 16DIP |
3,175 |
|
Datasheet |
|
- | 16-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.55V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
|
HCPL-5430OPTOISO 1.5KV 2CH PUSH PULL 8DIP |
5,174 |
|
Datasheet |
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 500V/µs | DC | Push-Pull, Totem Pole | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
