Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL2630MOPTOISO 5KV 2CH OPEN COLL 8DIP onsemi |
4,727 |
|
Datasheet |
 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL0601R2OPTOISO 3.75KV OPN COLLECTOR 8SO onsemi |
4,918 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL0600OPTOISO 3.75KV OPN COLLECTOR 8SO onsemi |
3,160 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|

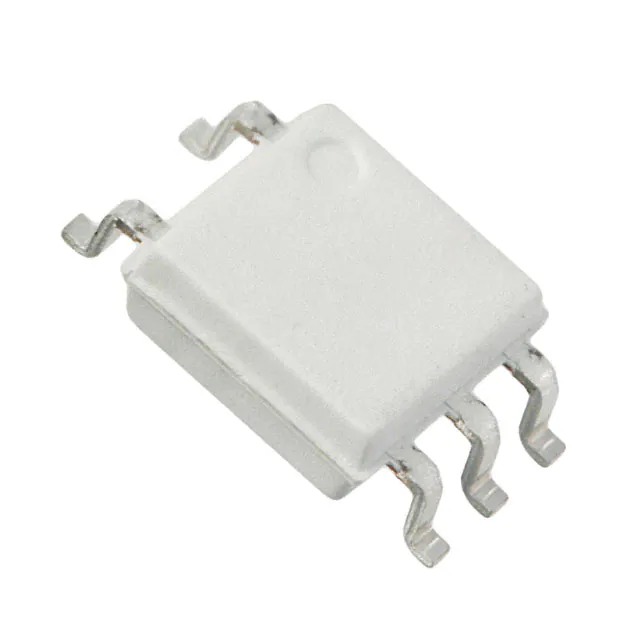

FODM8071OPTOISO 3.75KV PUSH PULL 5MFP onsemi |
5,087 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-Mini-Flat |
|
HCPL2631SDMOPTOISO 5KV 2CH OPEN COLL 8SMD onsemi |
5,119 |
|
Datasheet |
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD |
|
|
FODM8071R2OPTOISO 3.75KV PUSH PULL 5MFP onsemi |
3,552 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-Mini-Flat |
|
|
HCPL0600R2OPTOISO 3.75KV OPN COLLECTOR 8SO onsemi |
4,087 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL0638R2OPTOISO 3.75KV 2CH OPEN COLL 8SO onsemi |
5,882 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
FOD060LR2OPTOISO 3.75KV OPN COLLECTOR 8SO onsemi |
3,813 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL062NR2OPTOISO 2.5KV 2CH OPEN COLL 8SO onsemi |
5,752 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Open Collector | 15 mA | 10Mbps | 90ns, 75ns | 16ns, 4ns | 1.75V (Max) | 50mA | 2.7V ~ 3.3V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
