Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-060L-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
3,513 |
|
Datasheet |
 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
FODM8071OPTOISO 3.75KV PUSH PULL 5MFP |
5,087 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-Mini-Flat |
|
|
ACPL-071L-000EOPTOISO 3.75KV PUSH PULL 8SO |
5,893 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
HCPL-060L-560EOPTOISO 3.75KV OPN COLLECTOR 8SO |
5,205 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
VO4661-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
5,347 |
|
Datasheet |
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5300Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
HCPL2631SDMOPTOISO 5KV 2CH OPEN COLL 8SMD |
5,119 |
|
Datasheet |
|
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD |
|
|
FODM8071R2OPTOISO 3.75KV PUSH PULL 5MFP |
3,552 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 5.8ns, 5.3ns | 1.35V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-Mini-Flat |
|
|
ACPL-071L-500EOPTOISO 3.75KV PUSH PULL 8SO |
5,408 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | 20mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|

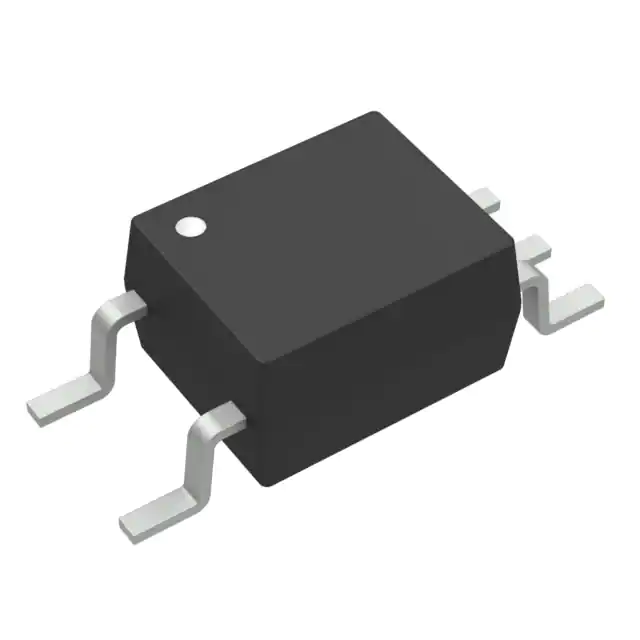

HCPL-M601-500EOPTOISO 3.75KV OPN COLLECTOR 5SO |
4,379 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
HCPL-2611-000EOPTOISO 3.75KV OPEN COLL 8DIP |
5,676 |
|
Datasheet |
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2611-020EOPTOISO 5KV OPEN COLLECTOR 8DIP |
3,237 |
|
Datasheet |
|
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-M611-500EOPTOISO 3.75KV OPN COLLECTOR 5SO |
5,160 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
HCPL0600R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
4,087 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL-0201-000EOPTOISO 3.75KV PUSH PULL 8SO |
4,956 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
VO0631TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
3,517 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 4000Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
HCPL-0201-500EOPTOISO 3.75KV PUSH PULL 8SO |
5,718 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACPL-P480-500EOPTOISO 3.75KV PUSH PULL 6SO |
3,038 |
|
Datasheet |
|
- | 6-SOIC (0.180", 4.58mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 350ns, 350ns | 16ns, 20ns | 1.7V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
|
ACPL-M484-000EOPTOISO 3.75KV PUSH PULL 5SO |
4,039 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 150ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 5-SO |
|
|
ACPL-M75L-000EOPTOISO 3.75KV PUSH PULL 5SO |
5,081 |
|
Datasheet |
|
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 5-SO |
|
|
ACPL-077L-000EOPTOISO 3.75KV PUSH PULL 8SO |
4,286 |
|
Datasheet |
|
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 35kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 4ns, 3ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
