Transistor, Photovoltaic Output Optoisolators

Manufacturer	Series	Package/Case	Packaging	Product Status	Number of Channels	Voltage - Isolation	Current Transfer Ratio (Min)	Current Transfer Ratio (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Input Type	Output Type	Voltage - Output (Max)	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Vce Saturation (Max)	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
ABB Control American Bright Optoelectronics Corporation BEKING OPTOELECTRONICS Broadcom Limited CEL Diodes Incorporated Fairchild Semiconductor Flip Electronics HVM Technology, Inc. International Rectifier IXYS Integrated Circuits Division Kingbright Lite-On Inc. Littelfuse Inc. Lumex Opto/Components Inc. onsemi Panasonic Electric Works Sharp Microelectronics SHARP/Socle Technology Shenzhen Slkormicro Semicon Co., Ltd. Skyworks Solutions Inc. Taiwan Semiconductor Corporation TE Connectivity AMP Connectors Texas Instruments Toshiba Semiconductor and Storage TT Electronics/Optek Technology Vishay Semiconductor Opto Division Weidmuller Würth Elektronik	* - 4N25 4N26 4N27 4N28 4N29 4N2X 4N30 4N31 4N32 4N33 4N33F 4N35 4N35X 4N36 4N37 4N38 4N3X 530-03 6N135 6N136 6N138 6N139 APC-101X APC-817 BPC-10XX CN72A CN82A CN83AG CNX82A CNY17 CNY17-1 CNY17-2 CNY17-3 CNY17-4 CNY17-5 CNY17F CNY17F-1 CNY17F-2 CNY17F-3 CNY17F-4 CNY74-4H CNY75A CNY75B CNY75C CQY80 DPC101x DPC357 DPC816 DPC817 EL121N EL354N-G EL3H4-G EL3H7-G EL816 EL817 EL817-G EL847 EL852 ELW135 FOD785 FODM121 FODM181 FODM214 FODM217 FODM291 FODM352 H11A H11AV H11AX H11B H11D H11G ICPL2530 ICPL2531 ICPLW50L IL IL205AT IL300 ILD ILD205T ILD207T ILD55 ILQ ILQ615 IS IS121 IS124 IS1600 IS181 IS20 IS205 IS206 IS2701-1 IS2702-1 IS2705-1 IS280 IS280-4 IS2801-1 IS2805 IS281 IS357 IS3H4 IS452 IS4N45 IS4N46 IS604 IS627 IS66 IS7000 IS725 IS733 IS829 IS849 IS852 ISD ISD1 ISD20 ISD5 ISD74 ISLT100X ISP281 ISP321-1 ISP321-2 ISP321-4 ISP521-1 ISP521-2 ISP521-4 ISP620-1 ISP620-2 ISP620-4 ISP621-1 ISP621-2 ISP621-4 ISP624-1 ISP624-2 ISP624-4 ISP814 ISP815 ISP815-1 ISP815-2 ISP815-3 ISP8151 ISP8152 ISP8153 ISP817 ISP817-1 ISP817-2 ISP817-3 ISP824 ISP825 ISP825-1 ISP825-3 ISP8251 ISP827 ISP827-1 ISP827-2 ISP827-3 ISP8271 ISP8272 ISP8273 ISP844 ISP845 ISP845-1 ISP845-3 ISP8451 ISP8453 ISP847 ISP847-1 ISP847-2 ISP847-3 ISP8471 ISP8472 ISP8473 ISPD6x ISQ ISQ1 ISQ20 ISQ204-1 ISQ204-2 ISQ204-3 ISQ204X1 ISQ204X2 ISQ204X3 ISQ74 ISTS100 ISx2 LTV-2X4 LTV-2X7 LTV-352T LTV-354T LTV-355T LTV-356T LTV-357T LTV-358T LTV-715F LTV-725V LTV-733 LTV-816 LTV-826 LTV-846 LTV-8x4 LTV-8x5 LTV-8x6 LTV-8x7 LTV-SX4 MCA2230 MCA2231 MCA2255 MCA230 MCA231 MCA255 MCT2 MCT210 MCT220 MCT27 MCT27x MCT2X MCT6 MCT61 MCT62 MCT66 Microcoupler™ MOC8020 MOC8021 MOC8030 MOC8050 MOC8100 MOC8101 MOC8102 MOC8103 MOC8104 MOC8105 MOC8106 MOC8108 MOC8111 MOC8112 MOC8113 MOCD207 MOCD217 NEPOC OPIC™ OPTO-150 Optocoupler OptoHit™ PC123 PC1231xNSZ1B PC3H71 PC8110xNSZ PC8110xNSZOF PC814X PC817 PC8171 PC8171xNSZ1B PC851 PC851X PC852X PC853X PS2501-1 PS2501-2 PS2501-4 PS2502-1 PS2502-2 PS2502-4 PS2505-1 PS2505-2 PS2505-4 PVI PVI-NPbF Q817 QX101X QX357X QX817 R2Coupler™ R²Coupler™ SFH600-0 SFH600-1 SFH600-2 SFH600-3 SFH600-4 SFH601-1 SFH601-2 SFH601-3 SFH601-4 SFH601-5 SFH609-1 SFH609-2 SFH609-3 SFH609-4 SFH6106 SFH6156 SFH615A SFH617A SFH617G SFH617G-2 SFH618A-2 SFH618A-3 SFH618A-4 SFH620A SFH620A-1 SFH620A-2 SFH620A-3 SFH628A-2 SFH628A-3 SFH6319 T100xV TCLT1007 TIL111 TIL113 TIL114 TIL116 TIL117 TIL119 TIL191 TIL191A TIL191B TIL192 TIL192A TIL192B TIL193 TIL193A TIL193B TIL194 TIL195 TIL196 TIL197 TIL197A TIL197B TIL198 TIL198B TIL199 TIL199A TIL199B TLP321 TLP321-2 TLP321-4 TLP521 TLP521-1 TLP521-2 TLP521-4 TLP620 TLP620-2 TLP620-4 TLP621 TLP621-2 TLP621-4 TLP624 TLP624-2 TLP624-4 TLP626-2 TLP626-4 TPC816 TPC817 VO207AT VOD207T VOL618A VOMA617A VOMA618A VOS615A VOS617A VOS627A VOS628A WAVESERIES WL-OCDA WL-OCPT	- 12-BSOP (0.173", 4.40mm Width) 12-BSOP (0.295", 7.50mm Width) 12-SOIC (0.295", 7.50mm Width) 12-SOP (0.173", 4.40mm Width) 1210 (3225 Metric) 16-CDIP (0.300", 7.62mm) 16-CSMD, Gull Wing 16-DIP 16-DIP (0.300", 7.62mm) 16-DIP (0.400", 10.16mm) 16-FlatPack 16-SMD 16-SMD, Butt Joint 16-SMD, Butt Joint, Crew Cut 16-SMD, Gull Wing 16-SOIC (0.173", 4.40mm Width) 16-SOIC (0.179", 4.55mm Width) 16-SOIC (0.295", 7.50mm Width) 16-SOIC (0.295", 7.50mm Width), 12 Leads 20-CLCC 3-SMD, Gull Wing 4-CLCC 4-DIP (0.100", 2.54mm) 4-DIP (0.200", 5.08mm) 4-DIP (0.300", 7.62mm) 4-DIP (0.400", 10.16mm) 4-DIP (0.600", 15.24mm) 4-DIP Module 4-DIP Module (0.300", 7.62mm) 4-EDIP (0.300", 7.62mm) 4-Miniflat 4-SMD (0.175", 4.45mm) 4-SMD (0.300", 7.62mm) 4-SMD, Flat Leads 4-SMD, Gull Wing 4-SMD, No Lead 4-SOIC (0.173", 4.40mm Width) 4-SOIC (0.179", 4.55mm Width) 4-SOIC (0.209", 5.30mm Width) 4-SOP (0.295", 7.50mm Width) 4-TEBGA 5-DIP 5-DIP Module 6-CLCC 6-DIP (0.300", 7.62mm) 6-DIP (0.300", 7.62mm), 5 Leads 6-DIP (0.400", 10.16mm) 6-LCC 6-SMD 6-SMD (0.300", 7.62mm) 6-SMD (4 Leads), Gull Wing 6-SMD (5 Leads), Gull Wing 6-SMD, Gull Wing 6-SMD, Gull Wing, 5 Leads 6-SMD, No Lead 6-SOIC (0.173", 4.40mm Width), 4 Leads 6-SOIC (0.173", 4.40mm Width), 5 Leads 6-SOIC (0.179", 4.55mm Width), 5 Leads 6-SOIC (0.268", 6.80mm Width) 6-SOIC (0.295", 7.50mm Width) 6-SOIC (0.295", 7.50mm Width), 5 Leads 8-CDIP (0.300", 7.62mm) 8-CFlatpack 8-CSMD Butt Joint 8-CSMD, Gull Wing 8-DFN 8-DIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm), 4 Leads 8-DIP (0.300", 7.62mm), 6 Leads 8-DIP (0.400", 10.16mm) 8-SMD 8-SMD Butt Joint 8-SMD Butt Joint, Crew Cut 8-SMD, Gull Wing 8-SMD, Gull Wing, 4 Leads 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.173", 4.40mm Width) 8-SOIC (0.268", 6.80mm Width) 8-SOIC (0.268", 6.81mm Width) 8-SOIC (0.378", 9.60mm Width) 8-SOIC (0.535", 13.60mm Width) 8-SOIC (0.543", 13.80mm Width) 8-SOP (0.220", 5.60mm Width) Axial - 4 Leads Axial - 5 Leads Axial, Can - 4 Leads DO-214AB, SMC Housed Module Module, PC Pins, Slot Type Nonstandard, 4 Lead SOT-223-10 TO-206AA, TO-18-3 Metal Can TO-206AF, TO-72-4 Metal Can TO-78-6 Metal Can	- Bag Box Bulk Cut Tape (CT) Retail Package Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Digi-Key Last Time Buy Not For New Designs Obsolete	- 1 2 3 32 4 8	- 10000VDC 10000Vrms 1000VDC 1000Vrms 1140Vpk 1390VDC 15000VDC 1500VDC 1500Vrms 1768Vrms 2130VDC 2500VDC 2500Vrms 3000Vrms 3550Vrms 3750VDC 3750Vrms 4000VDC 4000Vrms 4170Vrms 4400Vrms 4420Vrms 4470Vrms 50000VDC 5000Vrms 500Vrms 5300Vrms 5900Vrms 6000VDC 7500Vpk 7500Vrms 8200Vrms 890Vpk	- 0.25% @ 10mA 0.3% @ 5mA 0.36% @ 10mA 0.4% @ 10mA 0.63% @ 10mA 0.73% @ 2mA ~ 10mA 0.98% @ 2mA ~ 10mA 1% @ 5mA 10% @ 10mA 10% @ 16mA 10% @ 1mA 10% @ 5mA 100% @ 1.5mA 100% @ 10mA 100% @ 1mA 100% @ 200µA 100% @ 2mA 100% @ 3mA 100% @ 500µA 100% @ 5mA 1000% @ 10mA 1000% @ 1mA 1000% @ 2mA 1000% @ 5mA 108% @ 10mA 12% @ 16mA 12.5% @ 10mA 12.5% @ 16mA 120% @ 1mA 120% @ 500µA 120% @ 5mA 125% @ 10mA 130% @ 10mA 130% @ 1mA 130% @ 5mA 140% @ 1mA 140% @ 500µA 15% @ 10mA 15% @ 16mA 15% @ 1mA 15% @ 7mA 15% @ 8mA 150% @ 1.6mA 150% @ 10mA 150% @ 1mA 150% @ 500µA 150% @ 5mA 1500% @ 1mA 1500% @ 2mA 1500% @ 5mA 160% @ 10mA 160% @ 1mA 160% @ 320mA 160% @ 500µA 160% @ 5mA 19% @ 16mA 20% @ 100mA 20% @ 10mA 20% @ 16mA 20% @ 1mA 20% @ 20mA 20% @ 5mA 200% @ 10mA 200% @ 12mA 200% @ 1mA 200% @ 200µA 200% @ 2mA 200% @ 500µA 200% @ 5mA 2000% @ 1mA 21% @ 16mA 225% @ 10mA 23% @ 12mA 25% @ 10mA 25% @ 16mA 25% @ 20mA 25% @ 2mA 250% @ 10mA 250% @ 1mA 250% @ 25mA 250% @ 5mA 255% @ 5mA 30% @ 10mA 30% @ 1mA 300% @ 1.6mA 300% @ 10mA 300% @ 1mA 300% @ 2mA 300% @ 5mA 31% @ 12mA 32% @ 10mA 33% @ 1mA 35% @ 1mA 350% @ 500µA 3500% @ 1mA 375% @ 5mA 40% @ 10mA 40% @ 1mA 40% @ 5mA 400% @ 1.6mA 400% @ 1mA 400% @ 500µA 400% @ 5mA 400% @ 700µA 45% @ 10mA 5% @ 16mA 5% @ 1mA 5% @ 5mA 50% @ 10mA 50% @ 1mA 50% @ 2mA 50% @ 500µA 50% @ 5mA 500% @ 1.6mA 500% @ 10mA 500% @ 1mA 500% @ 2mA 500% @ 5mA 6% @ 10mA 60% @ 10mA 60% @ 1mA 60% @ 2mA 60% @ 3mA 60% @ 5mA 600% @ 1mA 600% @ 500µA 63% @ 10mA 63% @ 1mA 63% @ 5mA 65% @ 10mA 65% @ 1mA 7% @ 16mA 70% @ 10mA 70% @ 1mA 70% @ 3mA 70% @ 4mA 70% @ 500µA 70% @ 50µA 700% @ 1mA 73% @ 10mA 75% @ 10mA 75% @ 500µA 75% @ 5mA 750% @ 2mA 80% @ 10mA 80% @ 1mA 80% @ 3mA 80% @ 5mA 800% @ 1mA 800% @ 40µA 9% @ 16mA 90% @ 3mA 900% @ 500µA 93% @ 3mA	- 0.72% @ 10mA 0.75% @ 10mA 1.07% @ 2mA ~ 10mA 100% @ 10mA 100% @ 1mA 100% @ 5mA 1000% @ 10mA 1000% @ 1mA 1000% @ 5mA 115% @ 10mA 117% @ 10mA 1200% @ 1mA 125% @ 10mA 125% @ 1mA 125% @ 5mA 130% @ 1mA 133% @ 10mA 150% @ 10mA 150% @ 15mA 150% @ 1mA 150% @ 500µA 150% @ 5mA 1500% @ 1mA 15000% @ 1mA 155% @ 5mA 160% @ 10mA 160% @ 1mA 160% @ 5mA 173% @ 10mA 20% @ 5mA 200% @ 10mA 200% @ 1mA 200% @ 2mA 200% @ 3mA 200% @ 500µA 200% @ 5mA 210% @ 10mA 210% @ 4mA 22% @ 16mA 230% @ 5mA 240% @ 1mA 240% @ 5mA 25% @ 5mA 250% @ 10mA 250% @ 1mA 250% @ 500µA 250% @ 5mA 2500% @ 200µA 25000% @ 40µA 256% @ 10mA 260% @ 10mA 260% @ 1mA 260% @ 5mA 2600% @ 1.6mA 3% @ 5mA 3.20% @ 10mA 30% @ 16mA 300% @ 10mA 300% @ 1mA 300% @ 500µA 300% @ 5mA 300% @ 7mA 30000% @ 1mA 320% @ 10mA 320% @ 1mA 320% @ 5mA 3400% @ 1mA 3400% @ 5mA 35% @ 16mA 350% @ 500µA 3500% @ 500µA 380% @ 1mA 380% @ 5mA 40% @ 5mA 400% @ 10mA 400% @ 1mA 400% @ 500µA 400% @ 5mA 4000% @ 1mA 45% @ 16mA 450% @ 10mA 4500% @ 1mA 50% @ 10mA 50% @ 16mA 50% @ 1mA 500% @ 10mA 500% @ 1mA 500% @ 500µA 500% @ 5mA 5000% @ 1.6mA 5000% @ 500µA 53% @ 12mA 55% @ 16mA 5500% @ 1mA 560% @ 5mA 60% @ 10mA 60% @ 16mA 600% @ 1.5mA 600% @ 10mA 600% @ 1mA 600% @ 2mA 600% @ 500µA 600% @ 5mA 600% @ 60mA 63% @ 16mA 6500% @ 1mA 70% @ 1mA 700% @ 500µA 700% @ 5mA 7000% @ 1mA 7000% @ 500µA 75% @ 10mA 7500% @ 1mA 7500% @ 2mA 80% @ 100mA 80% @ 10mA 80% @ 12mA 80% @ 1mA 80% @ 5mA 800% @ 200µA 8000% @ 1mA 8000% @ 500µA 850% @ 2mA 90% @ 10mA 900% @ 5mA 9000% @ 1mA	- -, 0.5ms -, 250µs -, 650µs (Max) 1.1µs, 2.5µs 1.1µs, 50µs 1.2µs, 2.3µs 1.35µs, 7.6µs 1.4µs, 8µs 1.5µs, 1.5µs (Max) 1.5µs, 53.5µs 1.5µs, 7µs 1.6µs, 10µs 1.6µs, 18µs 1.6µs, 8.6µs 100ns, 2µs 100ns, 400ns 100µs, 1.05ms 100µs, 100µs 100µs, 500µs 105µs, 60µs 10µs, 100µs 10µs, 10µs 10µs, 10µs (Max) 10µs, 125µs 10µs, 150µs 10µs, 25µs 10µs, 30µs 10µs, 35µs (Max) 10µs, 400ns 10µs, 7µs 10µs, 8µs 10µs, 9µs 110µs, 30µs 11µs, 11µs 11µs, 37.5µs 11µs, 70µs 11µs, 7µs 120µs, 70µs 125µs, 100µs 14µs, 2.5µs 150ns, 400ns 150ns, 500ns 150ns, 700ns 150µs, 125µs 15µs, 15µs 15µs, 15µs (Max) 15µs, 30µs 15µs, 30µs (Min) 15µs, 500ns 15µs, 50µs 16.7µs, 2.7µs 16µs, 15µs 16µs, 472µs 18µs, 18µs 19.5µs, 212µs 190ns, 150ns 1ms, 1ms (Max) 1µs, 1.5µs 1µs, 16µs 1µs, 1µs (Max) 1µs, 2µs 1µs, 30µs 1µs, 48µs 1µs, 4µs 1µs, 50µs 1µs, 7.3µs 1µs, 7µs 1µs, 7µs (Max) 1µs, 80µs 2.4µs, 2.4µs 2.5ms, 500µs (Max) 2.5µs, 5.5µs 2.5µs, 7.3µs 2.6µs, 2.8µs 2.6µs, 7.2µs 200ns, 1.3µs 200ns, 1.7µs 200ns, 1µs 200ns, 200ns 200ns, 2µs 200ns, 300ns 200ns, 380ns 200ns, 400ns 200ns, 500ns 200ns, 600ns 200ns, 7µs 200µs, - 200µs, 1ms 200µs, 200µs 200µs, 300µs 200µs, 3ms 20ms, 20ms (Max) 20µs, 20µs 20µs, 20µs (Max) 20µs, 50µs (Max) 220ns, 350ns 22µs, 44µs 230ns, 450ns 240ns, 1.3µs 240ns, 210ns 250ns, 260ns 250ns, 500ns 25µs, 18µs 25µs, 25µs (Max) 25µs, 50µs 26µs, 25µs 27µs, 210µs 280µs, 30µs 2ms, 15ms 2µs, 10µs 2µs, 19µs 2µs, 23µs 2µs, 25µs 2µs, 2µs 2µs, 2µs (Max) 2µs, 3µs 2µs, 40µs 2µs, 4µs 2µs, 6µs 2µs, 7µs 2µs, 8µs 3.2µs, 3.4µs 3.2µs, 3µs 3.5µs, 25µs 3.5µs, 3.5µs 3.5µs, 3.5µs (Max) 3.5µs, 36µs 3.5µs, 95µs 3.6µs, 3.7µs 3.7µs, 8.5µs 300ns, 1.5µs 300ns, 1.6µs 300ns, 1µs 300ns, 300ns 300ns, 330ns 300ns, 400ns 300ns, 500ns 300ns, 5µs 300ns, 600ns 300ns, 800ns 300µs, 100µs 300µs, 1ms 300µs, 220µs (Max) 300µs, 50µs 300µs, 600µs 30µs, 100µs 320ns, 250ns 32µs, 80µs 330ns, 2.5µs 350ns, 300ns 350ns, 350ns 350ns, 500ns 350ns, 55µs 35µs, 90µs 3µs, 12µs 3µs, 18µs 3µs, 2.3µs 3µs, 2.5µs 3µs, 2.8µs 3µs, 2.9µs 3µs, 20µs (Max) 3µs, 22µs 3µs, 34µs 3µs, 3µs 3µs, 50µs 3µs, 5µs 3µs, 70µs (Max) 4.2µs, 2.3µs 4.2µs, 23µs 4.5µs, 29µs 4.5µs, 3.7µs 4.5µs, 3µs 4.5µs, 8µs 4.8µs, 15µs 4.8µs, 4.2µs 4.9µs, 3.3µs 400ns, 1µs 400ns, 350ns 400µs, 100µs 400µs, 40µs 40ns, 35ns 40µs, 120µs 40µs, 65µs 450ns, 300ns 450ns, 450ns 450ns, 500ns 45µs, 45µs (Max) 4µs, 10µs 4µs, 3µs 4µs, 4.7µs 4µs, 4µs 4µs, 8µs 5.4µs, 7.4µs 5.5µs, 20µs 5.5µs, 4.2µs 5.5µs, 4µs 5.7µs, 3.6µs 500ns, 1µs 500ns, 300ns 500ns, 500ns 500ns, 600ns 500ns, 800ns 50µs, 150µs (Max) 50µs, 15µs 50µs, 80µs 53µs, 24µs 5ms, 15ms 5ms, 250µs (Max) 5µs, 100µs 5µs, 100µs (Max) 5µs, 10µs 5µs, 150µs 5µs, 25µs 5µs, 30µs 5µs, 3µs 5µs, 40µs (Max) 5µs, 4µs 5µs, 5µs 5µs, 60µs 5µs, 6µs 5µs, 8µs 6.2µs, 3.1µs 6.3µs, 6.4µs 6.8µs, 2.3µs 600ns, 1.5µs 600ns, 1µs 600ns, 600ns 600µs, 2ms 6µs, 25µs 6µs, 4µs 6µs, 5.5µs 6µs, 5µs 6µs, 6µs 6µs, 7µs 7.5µs, 5.7µs 7.5µs, 70µs 700ns, 1.4µs 700ns, 400ns 730µs, 20µs 7µs, 20µs 7µs, 5µs 7µs, 6µs 7µs, 7µs 7µs, 7µs (Max) 8.5µs, 95µs 800ns, 1µs 800ns, 800ns (Max) 800µs, 100µs 80µs, 50µs 8µs, 10µs 8µs, 345µs 8µs, 50µs 8µs, 5µs 8µs, 7.5µs 9.5µs, 8.5µs 90ns, 800ns 90µs, 220µs (Max) 9µs, 4µs 9µs, 6µs (Max) 9µs, 9µs	- 1.2µs, 7.6µs 1.3µs, 16µs 1.6µs, 2.2µs 1.75µs, 1.75µs 1.8µs, 1.7µs 1.9µs, 1.4µs 100µs, 100µs 100µs, 20µs 10µs, 0.5µs 10µs, 1.2µs 10µs, 10µs 10µs, 10µs (Max) 10µs, 35µs 12µs, 20µs 130µs, 60µs 14µs, 0.4µs 14µs, 14µs 15µs, 15µs 15µs, 15µs (Max) 18µs, 18µs 18µs, 18µs (Max) 18µs, 5µs 1µs, 11µs 1µs, 1µs 1µs, 20.5µs 1µs, 2µs 1µs, 30µs 1µs, 5µs 2.3µs, 3.2µs 2.4µs, 2.4µs 2.4µs, 2.7µs 2.5µs, 16µs 2.5µs, 2.6µs 2.5µs, 2.7µs 2.5µs, 5.5µs 2.5µs, 7.5µs 2.6µs, 2.2µs 2.8µs, 4.5µs 2.8µs, 4µs 2.9µs, 3.1µs 200µs, 200µs 200µs, 200µs (Max) 20µs, 0.3µs 20µs, 1.2µs 20µs, 100µs 20µs, 10µs (Max) 20µs, 110µs 20µs, 20µs 20µs, 20µs (Max) 20µs, 2µs 20µs, 30µs 20µs, 5µs 24µs, 0.4µs 250µs, 95µs (Max) 25µs, 0.3µs 25µs, 25µs 25µs, 25µs (Max) 2µs, 1.5µs 2µs, 11µs 2µs, 13.5µs 2µs, 2.5µs 2µs, 200µs 2µs, 2µs 2µs, 3µs 3.2µs, 4.7µs 3.2µs, 4µs 3.5µs, 14.5µs 3.5µs, 5µs 300µs, - 300µs, 100µs (Max) 300µs, 250µs 300µs, 250µs (Max) 300µs, 300µs 350µs, - 3µs, 14µs 3µs, 2µs 3µs, 3.1µs 3µs, 3.7µs 3µs, 3µs 3µs, 4.7µs 3µs, 4µs 3µs, 5µs 3µs, 7µs 4.2µs, 4.7µs 4.6µs, 15µs 40ns, 10ns 40µs, 15µs 40µs, 2.6µs 40µs, 40µs 40µs, 5µs 45µs, 0.5µs 45µs, 500ns 4µs, 15µs 4µs, 3.5µs (Max) 4µs, 3µs 4µs, 4.7µs 4µs, 5µs 4µs, 7µs 5.5µs, 10µs 5.5µs, 7µs 5.7µs, 8.5µs 50µs, 30µs 50µs, 50µs 5µs, 10µs 5µs, 25µs 5µs, 3µs 5µs, 4µs 5µs, 5.5µs 5µs, 5µs 5µs, 60µs 5µs, 6µs 5µs, 7µs 5µs, 9µs 60µs, 30µs 60µs, 50µs 60µs, 53µs 60µs, 60µs 6µs, 6µs 6µs, 7µs 6µs, 8µs 70µs, 70µs 7µs, 11µs 7µs, 20µs 7µs, 6.7µs 7µs, 6µs 800ns, 800ns 80µs, 72µs 8µs, 110µs 8µs, 120µs 8µs, 8µs 90µs, 22µs 95µs, 84µs 95µs, 90µs 9µs, 18µs	- AC, DC DC	- Darlington Darlington with Base MOSFET Photovoltaic Photovoltaic, Linearized Transistor Transistor with Base Transistor, Linearized	- 100V 10V 120V 13.5V 15V 16.5V 18V 200V 20V 24V 25V 28V 300V 30V 32V 33V 350V 35V 400V 40V 45V 48V 5.25V 500mV 50V 55V 5V 5V, 10V 60V 65V 6V 70V 75V 7V 8.2V 8.7V 80V 8V 90V	- 1.3mA 100mA 10mA 120mA 125mA 12mA 12µA 14µA 150mA 15mA 160mA 16mA 1µA 2.5mA 200mA 20mA 20µA 24µA 25mA 2A 2mA 3.5A 30mA 30µA (Typ) 3A 3µA 40mA 4µA 500mA 500µA 50mA 5A 5mA 5µA 60mA 6mA 70µA (Typ) 80mA 8mA 8µA 90mA	- 1.05V 1.07V 1.08V 1.15V 1.16V 1.17V 1.18V 1.1V 1.22V 1.23V 1.24V 1.25V 1.26V 1.27V 1.28V 1.2V 1.2V (Max) 1.32V 1.33V 1.35V 1.36V 1.37V 1.38V 1.39V 1.3V 1.3V (Max) 1.41V 1.42V 1.43V 1.45V 1.47V 1.4V 1.4V (Max) 1.55V 1.57V 1.59V 1.5V 1.5V (Max) 1.64V 1.65V 1.65V (Max) 1.68V 1.6V 1.6V (Max) 1.7V 1.7V (Max) 1.8V 1.8V (Max) 1.9V (Max) 11V 1V 2.3V (Max) 2.6V 2.8V 2.9V 2V (Max) 3.25V 3.3V 4V 8V	- 1 A 1 mA 1.7 mA 10 mA 100 mA 110 mA 12 mA 130 mA 15 mA 150 mA 2.5 mA 20 mA 200 mA 25 mA 3 mA 30 mA 360 mA 40 mA 400 mA 45 mA 5 mA 50 mA 6 mA 60 mA 7.5 mA 75 mA 80 mA 90 mA	- 1.25V 1.2V 1.4V 1.5V 100mV 110mV 1V 1V (Typ) 200mV 250mV 250mV (Typ) 2V 300mV 350mV 400mV 500mV 8V	- Automotive	- AEC-Q100 AEC-Q101 AEC-Q102	- -20°C ~ 75°C -20°C ~ 85°C -25°C ~ 100°C -25°C ~ 40°C -25°C ~ 50°C -25°C ~ 60°C -25°C ~ 85°C -30°C ~ 100°C -30°C ~ 105°C -30°C ~ 110°C -30°C ~ 115°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 110°C -40°C ~ 115°C -40°C ~ 125°C -40°C ~ 135°C -40°C ~ 80°C -40°C ~ 85°C -45°C ~ 100°C -50°C ~ 110°C -55°C ~ 100°C -55°C ~ 105°C -55°C ~ 110°C -55°C ~ 115°C -55°C ~ 125°C -55°C ~ 150°C -55°C ~ 85°C -65°C ~ 125°C 0°C ~ 125°C 0°C ~ 70°C 0°C ~ 75°C	- DIN Rail Surface Mount Surface Mount, Butt Joint Through Hole	- 10-SMD 12-SO 12-SSOP 1210 16-CDIP 16-DIP 16-DIP Butt Joint 16-DIP Gull Wing 16-FlatPack 16-Mini-Flat 16-SMD 16-SMD Butt Joint 16-SMD Crew Cut 16-SMD Gull Wing 16-SO 16-SOIC 16-SOP 16-SSOP 20-LCCC (8.89x8.89) 4-BGA (3.5x3.5) 4-CLCC (5.59x3.81) 4-DIL 4-DIP 4-DIP-HV 4-DIP-M 4-DIP-S 4-DIP-SL 4-DIP-SLM 4-LCC (3.81x5.59) 4-LSOP 4-LSOP (2.54mm) 4-LSSOP 4-MDIP 4-MFP 4-Mini-Flat 4-PDIP 4-PDIP-GW 4-SMD 4-SMD (SL Type) 4-SO 4-SOIC 4-SOP 4-SOP (2.54mm) 4-SSOP 4-VSSOP 5-DIP 5-MFP 5-Mini-Flat 5-SMD 5-SO 5-SOP 6-CLCC (2.79x2.54) 6-CLCC (6.22x4.32) 6-DIP 6-DIP Gull Wing 6-DIP SMD 6-DIP, 5 Lead 6-LCC (4.32x6.22) 6-LCC (6.22x4.32) 6-MFSOP, 4 Lead 6-MFSOP, 5 Lead 6-PDIP 6-SDIP 6-SDIP Gull Wing 6-SMD 6-SO 6-SO Stretched 6-SO, 4 Lead 6-SO, 5 Lead 6-SOP 6-SOP, 5 Pin 8-DIP 8-DIP Butt Joint 8-DIP Gull Wing 8-DIP Modified 8-DIP-S 8-DIP-SL 8-FlatPack 8-LSDIP 8-MDIP 8-Miniflat 8-PDIP 8-PDIP Gull Wing 8-SMD 8-SMD Butt Joint 8-SMD Crew Cut 8-SMD Gull Wing 8-SMT 8-SO 8-SO Stretched 8-SO Tall 8-SOIC 8-SOP 8-SOP MF 8-SSOP Axial DO-214AB (SMC) Module SMD TO-18 TO-72-4 TO-78-6

Reset All

Apply All

Result:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Voltage - Isolation	Current Transfer Ratio (Min)	Current Transfer Ratio (Max)	Turn On / Turn Off Time (Typ)	Rise / Fall Time (Typ)	Input Type	Output Type	Voltage - Output (Max)	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Vce Saturation (Max)	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
4N35S OPTOISO 3.55KV TRANS W/BASE 6SMD Lite-On Inc.	3,187	-	RFQ	Datasheet	4N3X	6-SMD, Gull Wing	Tube	Active	1	3550Vrms	100% @ 10mA	-	-	3µs, 3µs	DC	Transistor with Base	30V	100mA	1.2V	60 mA	300mV	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
HCPL-817-000E OPTOISOLATOR 5KV TRANSISTOR 4DIP Broadcom Limited	3,821	-	RFQ	Datasheet	-	4-DIP (0.300", 7.62mm)	Tube	Active	1	5000Vrms	50% @ 5mA	600% @ 5mA	-	4µs, 3µs	DC	Transistor	70V	50mA	1.2V	50 mA	200mV	-	-	-30°C ~ 100°C	Through Hole	4-DIP
CNY17F-2 OPTOISOLTR 5KV TRANSISTOR 6-DIP Lite-On Inc.	3,542	-	RFQ	Datasheet	CNY17F	6-DIP (0.300", 7.62mm)	Tube	Active	1	5000Vrms	63% @ 10mA	125% @ 10mA	-	5µs, 5µs	DC	Transistor	70V	150mA	1.45V	60 mA	300mV	-	-	-55°C ~ 100°C	Through Hole	6-DIP

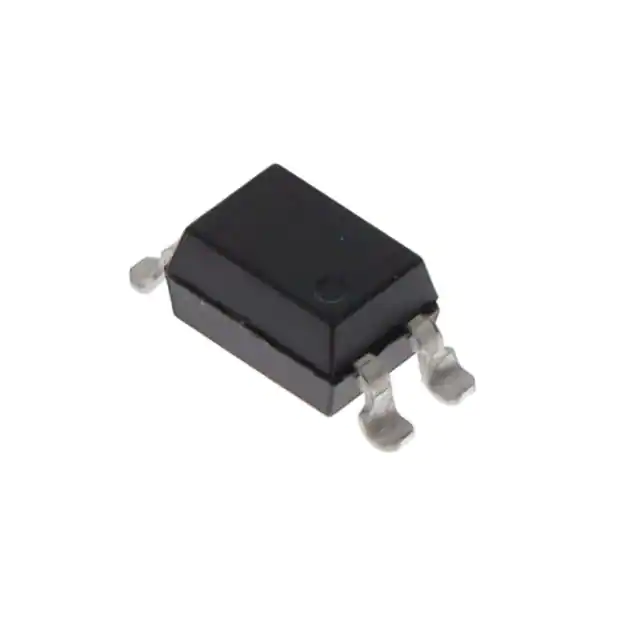

LTV-817S-B OPTOISOLATR 5KV TRANSISTOR 4-SMD Lite-On Inc.	3,248	-	RFQ	Datasheet	LTV-8x7	4-SMD, Gull Wing	Tube	Active	1	5000Vrms	130% @ 5mA	260% @ 5mA	-	4µs, 3µs	DC	Transistor	35V	50mA	1.2V	50 mA	200mV	-	-	-55°C ~ 110°C	Surface Mount	4-SMD
FOD817A300W OPTOISOLATOR 5KV TRANSISTOR 4DIP onsemi	5,614	-	RFQ	Datasheet	-	4-DIP (0.400", 10.16mm)	Tube	Active	1	5000Vrms	80% @ 5mA	160% @ 5mA	-	4µs, 3µs	DC	Transistor	70V	50mA	1.2V	50 mA	200mV	-	-	-55°C ~ 110°C	Through Hole	4-DIP
FOD817A300 OPTOISOLATOR 5KV TRANSISTOR 4DIP onsemi	3,323	-	RFQ	Datasheet	-	4-DIP (0.300", 7.62mm)	Tube	Active	1	5000Vrms	80% @ 5mA	160% @ 5mA	-	4µs, 3µs	DC	Transistor	70V	50mA	1.2V	50 mA	200mV	-	-	-55°C ~ 110°C	Through Hole	4-DIP
LTV-817S-TA OPTOISOLATR 5KV TRANSISTOR 4-SMD Lite-On Inc.	5,775	-	RFQ	Datasheet	LTV-8x7	4-SMD, Gull Wing	Tape & Reel (TR)	Active	1	5000Vrms	50% @ 5mA	600% @ 5mA	-	4µs, 3µs	DC	Transistor	35V	50mA	1.2V	50 mA	200mV	-	-	-55°C ~ 110°C	Surface Mount	4-SMD
4N35 OPTOISO 3.55KV TRANS W/BASE 6DIP Lite-On Inc.	3,906	-	RFQ	Datasheet	4N3X	6-DIP (0.300", 7.62mm)	Tube	Active	1	3550Vrms	100% @ 10mA	-	-	3µs, 3µs	DC	Transistor with Base	30V	100mA	1.2V	60 mA	300mV	-	-	-55°C ~ 100°C	Through Hole	6-DIP
QTH217T1 HALF PITCH MINI-FLAT PACKAGE PHO QT Brightek (QTB)	5,204	-	RFQ	Datasheet	Optocoupler	4-SOIC (0.173", 4.40mm Width)	Tape & Reel (TR)	Active	1	3750Vrms	50% @ 5mA	600% @ 5mA	-	6µs, 8µs	DC	Transistor	80V	50mA	1.24V	50 mA	200mV	-	-	-55°C ~ 125°C	Surface Mount	4-Mini-Flat
VO618A-4 OPTOISOLATOR 5.3KV TRANS 4-DIP Vishay Semiconductor Opto Division	5,302	-	RFQ	Datasheet	-	4-DIP (0.300", 7.62mm)	Tube	Active	1	5300Vrms	160% @ 1mA	320% @ 1mA	3µs, 2.3µs	2µs, 2µs	DC	Transistor	80V	50mA	1.1V	60 mA	400mV	-	-	-55°C ~ 110°C	Through Hole	4-DIP
4N26 OPTOISO 1.5KV TRANS W/BASE 6DIP Lite-On Inc.	4,897	-	RFQ	Datasheet	4N2X	6-DIP (0.300", 7.62mm)	Tube	Active	1	1500Vrms	20% @ 10mA	-	-	3µs, 3µs	DC	Transistor with Base	30V	100mA	1.2V	80 mA	500mV	-	-	-55°C ~ 100°C	Through Hole	6-DIP
VO618A OPTOISOLATOR 5.3KV TRANS 4-DIP Vishay Semiconductor Opto Division	5,580	-	RFQ	Datasheet	-	4-DIP (0.300", 7.62mm)	Tube	Active	1	5300Vrms	50% @ 1mA	600% @ 1mA	3µs, 2.3µs	2µs, 2µs	DC	Transistor	80V	50mA	1.1V	60 mA	400mV	-	-	-55°C ~ 110°C	Through Hole	4-DIP
VO617A-3X007T OPTOISOLATOR 5.3KV TRANS 4-SMD Vishay Semiconductor Opto Division	4,209	-	RFQ	Datasheet	-	4-SMD, Gull Wing	Tape & Reel (TR)	Active	1	5300Vrms	100% @ 5mA	200% @ 5mA	3µs, 2.3µs	2µs, 2µs	DC	Transistor	80V	50mA	1.35V	60 mA	400mV	-	-	-55°C ~ 110°C	Surface Mount	4-SMD
VO618A-3 OPTOISOLATOR 5.3KV TRANS 4-DIP Vishay Semiconductor Opto Division	4,305	-	RFQ	Datasheet	-	4-DIP (0.300", 7.62mm)	Tube	Active	1	5300Vrms	100% @ 1mA	200% @ 1mA	3µs, 2.3µs	2µs, 2µs	DC	Transistor	80V	50mA	1.1V	60 mA	400mV	-	-	-55°C ~ 110°C	Through Hole	4-DIP
4N37 OPTOISO 1.5KV TRANS W/BASE 6DIP Lite-On Inc.	5,897	-	RFQ	Datasheet	4N3X	6-DIP (0.300", 7.62mm)	Tube	Active	1	1500Vrms	100% @ 10mA	-	-	3µs, 3µs	DC	Transistor with Base	30V	100mA	1.2V	60 mA	300mV	-	-	-55°C ~ 100°C	Through Hole	6-DIP
VO617A OPTOISOLATOR 5.3KV TRANS 4-DIP Vishay Semiconductor Opto Division	4,569	-	RFQ	Datasheet	-	4-DIP (0.300", 7.62mm)	Tube	Active	1	5300Vrms	50% @ 5mA	600% @ 5mA	3µs, 2.3µs	2µs, 2µs	DC	Transistor	80V	50mA	1.35V	60 mA	400mV	-	-	-55°C ~ 110°C	Through Hole	4-DIP
LTV-826 OPTOISOLATOR 5KV 2CH TRANS 8-DIP Lite-On Inc.	5,154	-	RFQ	Datasheet	LTV-826	8-DIP (0.300", 7.62mm)	Tube	Active	2	5000Vrms	50% @ 5mA	600% @ 5mA	-	4µs, 3µs	DC	Transistor	80V	50mA	1.2V	50 mA	200mV	-	-	-30°C ~ 100°C	Through Hole	8-DIP
VO617A-3X017T OPTOISOLATOR 5.3KV TRANS 4-SMD Vishay Semiconductor Opto Division	3,064	-	RFQ	Datasheet	-	4-SMD, Gull Wing	Tape & Reel (TR)	Active	1	5300Vrms	100% @ 5mA	200% @ 5mA	3µs, 2.3µs	2µs, 2µs	DC	Transistor	80V	50mA	1.35V	60 mA	400mV	-	-	-55°C ~ 110°C	Surface Mount	4-SMD
4N25 OPTOISO 2.5KV TRANS W/BASE 6DIP Lite-On Inc.	5,860	-	RFQ	Datasheet	4N2X	6-DIP (0.300", 7.62mm)	Tube	Active	1	2500Vrms	20% @ 10mA	-	-	3µs, 3µs	DC	Transistor with Base	30V	100mA	1.2V	80 mA	500mV	-	-	-55°C ~ 100°C	Through Hole	6-DIP
CNY17-4 OPTOISO 5KV TRANS W/BASE 6DIP Lite-On Inc.	5,103	-	RFQ	Datasheet	CNY17	6-DIP (0.300", 7.62mm)	Tube	Active	1	5000Vrms	160% @ 10mA	320% @ 10mA	-	5µs, 5µs	DC	Transistor with Base	70V	150mA	1.45V	60 mA	300mV	-	-	-55°C ~ 100°C	Through Hole	6-DIP

Total 12278 Record«Prev 1... 17 18 19 202122 23 24...614 Next»
