Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3061SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
5,539 |
|
Datasheet |
 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
.jpg)
|
VO3053OPTOISOLATOR 5.3KV TRIAC 6DIP |
5,107 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR |
|
|
MOC3051SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
5,919 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 15mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UR |
|
VO3052-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
5,271 |
|
Datasheet |
|
- | 6-SMD | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
|
|
MOC3031SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
5,598 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3062SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,176 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3072SR2VM6PW RP TRIAC T&R VDE |
5,091 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 10mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3043SVMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,924 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|

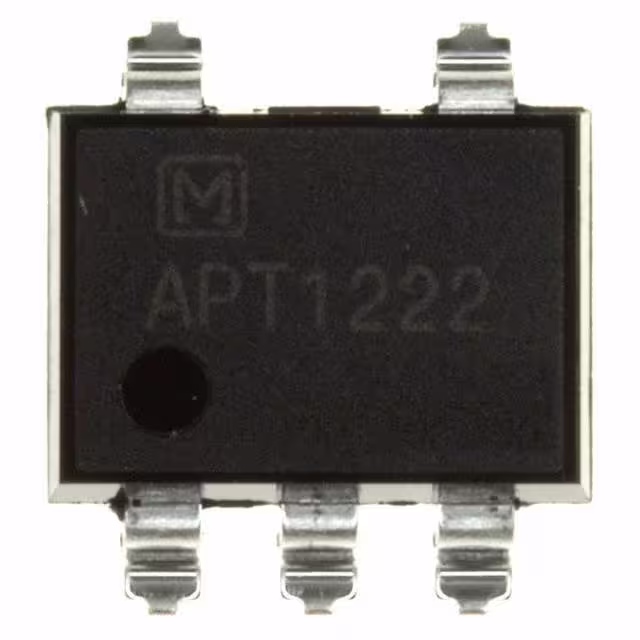

APT1222AOPTOISOLATOR 5KV TRIAC 6SMD |
4,349 |
|
Datasheet |
|
APT | 6-SMD (5 Leads), Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-DIP Gull Wing | cUR, VDE |
|
FODM3022R2-NF098OPTOISOLATOR 3.75KV TRIAC 4SMD |
3,973 |
|
Datasheet |
|
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 400 V | 10V/µs (Typ) | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
|
MOC3061SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,820 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
VO3053-X009TOPTOISOLATOR 5.3KV TRIAC 6SMD |
4,178 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
|
|
FODM3063OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,432 |
|
Datasheet |
|
- | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 600V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | UL, VDE |
|
|
MOC3082SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
4,628 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
QTM3083T1MINI-FLAT PACKAGE ZERO CROSSING |
3,843 |
|
Datasheet |
|
QTM308X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 5mA | - | 250µA | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 4-Mini-Flat | UL, VDE |
|

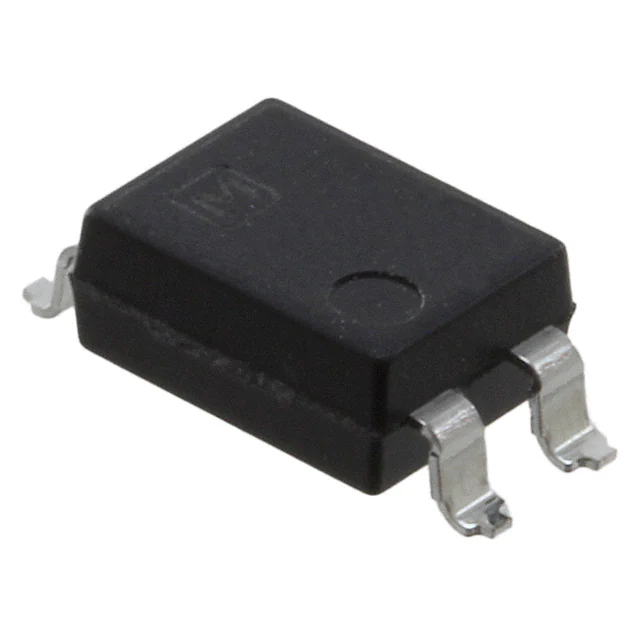

APT1221OPTOISOLATOR 5KV TRIAC 4DIP |
5,333 |
|
Datasheet |
|
APT | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Through Hole | 4-DIP | cUR, VDE |
|
|
APT1221SXOPTOISOLATOR 3.75KV TRIAC 4SOP |
3,134 |
|
Datasheet |
|
APT | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | cUR, VDE |
|
|
APT1211SOPTOISOLATOR 3.75KV TRIAC 4SOP |
5,674 |
|
Datasheet |
|
APT | 4-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | cUR, VDE |
|
MOC3073MRAND PHASE TRIAC |
3,963 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 800 V | 1kV/µs | 6mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-PDIP | UL |
|
APT1221AOPTOISOLATOR 5KV TRIAC 4SMD |
5,797 |
|
Datasheet |
|
APT | 4-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 500V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.21V | 50 mA | -40°C ~ 100°C | Surface Mount | 4-DIP Gull Wing | cUR, VDE |
