Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD410OPTOISOLATOR 5KV TRIAC 6DIP onsemi |
4,427 |
|
Datasheet |
 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
FOD4118SDVOPTOISOLATOR 5KV TRIAC 6SMD onsemi |
5,572 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL, VDE |
|
|

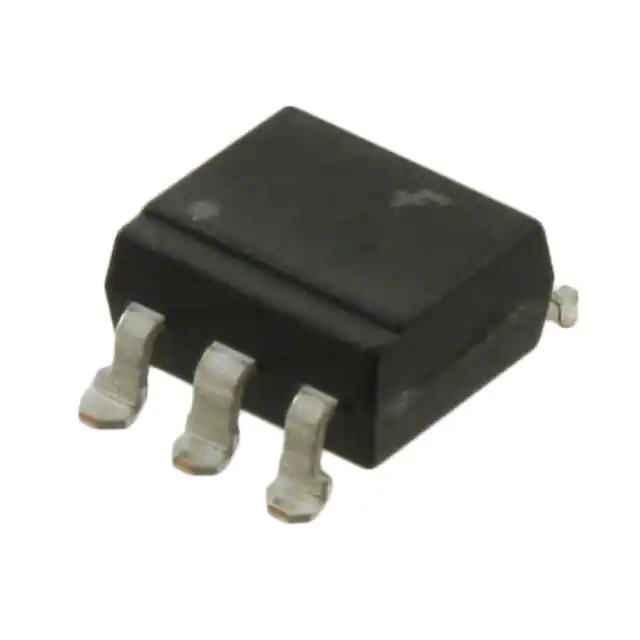

FOD4118SOPTOISOLATOR 5KV TRIAC 6SMD onsemi |
5,747 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
FOD4116SDVOPTOISOLATOR 5KV TRIAC 6SMD onsemi |
3,016 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL, VDE |
|
FOD4116OPTOISOLATOR 5KV TRIAC 6DIP onsemi |
3,845 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
MOC3051VMOPTOISOLATOR 4.17KV TRIAC 6DIP onsemi |
5,508 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 15mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UR, VDE |
|
MOC3023SVMOPTOISOLATOR 4.17KV TRIAC 6SMD onsemi |
3,618 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
MOC3021SVMOPTOISOLATOR 4.17KV TRIAC 6SMD onsemi |
5,529 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
MOC3012TVMOPTOISOLATOR 4.17KV TRIAC 6DIP onsemi |
5,806 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
MOC3020VMOPTOISOLATOR 4.17KV TRIAC 6DIP onsemi |
3,364 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 30mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
