Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3033SVMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
5,669 |
|
Datasheet |
 |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
MOC3083SMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
3,490 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3042TVMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
5,154 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
FOD4116VTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
3,296 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
FOD4108STRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
4,024 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
FOD410TVTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
4,229 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
FOD4118VTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
3,073 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|

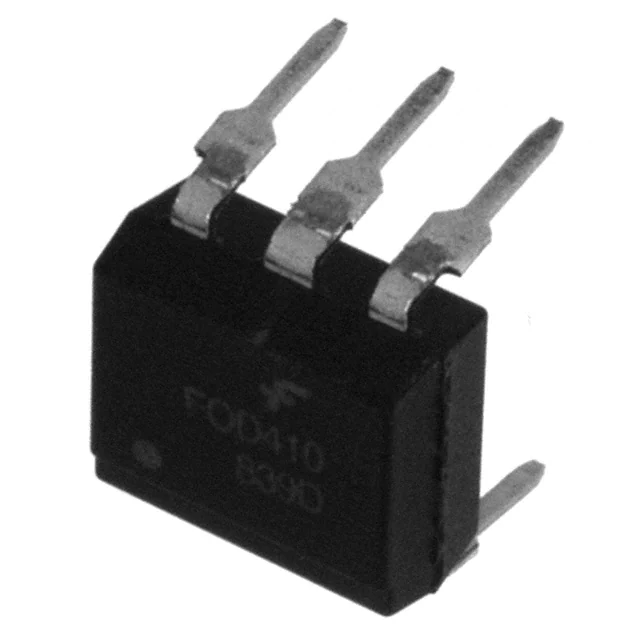

FOD410TRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
5,681 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
|
FOD4116TVTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
4,181 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
FOD4116TRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
3,864 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
