Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FODM3053R3OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,778 |
|
Datasheet |
 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
H11C1SDOPTOISOLATOR 5.3KV SCR 6SMD |
5,523 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | SCR | No | 1 | 5300Vrms | 200 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR |
|
|
ELT3061OPTOISOLATOR 5KV TRIAC 4DIP |
4,280 |
|
Datasheet |
|
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 15mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL |
|
|
ELT3062OPTOISOLATOR 5KV TRIAC 4DIP |
4,833 |
|
Datasheet |
|
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL |
|
|
ELT3063OPTOISOLATOR 5KV TRIAC 4DIP |
5,326 |
|
Datasheet |
|
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL |
.jpg)
|
IL440-6OPTOISOLATOR 5.3KV TRIAC 6DIP |
3,126 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 50V/µs (Typ) | 5mA | 100 mA | 1mA (Typ) | - | 1.25V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, UR |
|
|
H11C4OPTOISOLATOR 5.3KV SCR 6DIP |
5,659 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | SCR | No | 1 | 5300Vrms | 400 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR |
|
|
H11C4SOPTOISOLATOR 5.3KV SCR 6SMD |
3,911 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tube | Obsolete | SCR | No | 1 | 5300Vrms | 400 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR |
|
|
H11C4SDOPTOISOLATOR 5.3KV SCR 6SMD |
5,582 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | SCR | No | 1 | 5300Vrms | 400 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR |
|

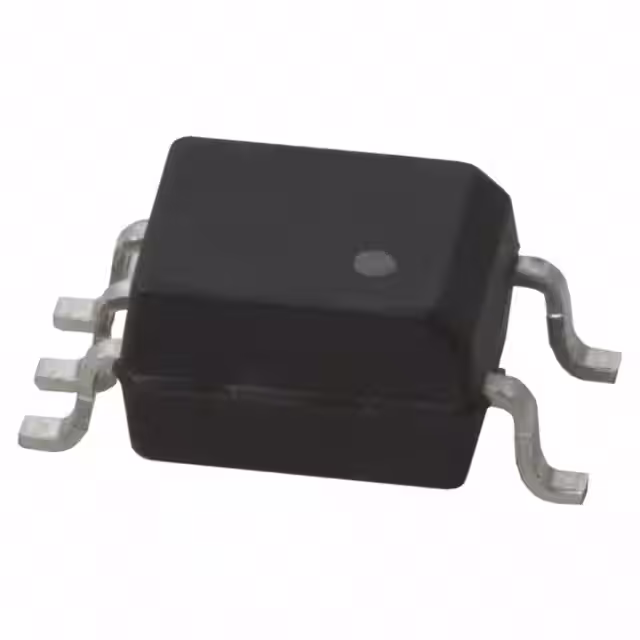

PC3SD21YXPDHOPTOISOLATOR 5KV TRIAC SMD |
4,175 |
|
- |
|
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC3SF21YVZAHPHOTOTRIAC COUPLER |
4,128 |
|
- |
|
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | - | 10mA | 100 mA | - | - | - | - | - | Through Hole | 6-DIP | - |
|
|
ELT3052M-VOPTOISOLATOR 5KV TRIAC 4DIP |
5,117 |
|
Datasheet |
|
- | 4-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL, VDE |
|
EL3053M-VOPTOISOLATOR 5KV TRIAC 6DIP |
4,198 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
EL3061MOPTOISOLATOR 5KV TRIAC 6DIP |
5,641 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 15mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
Q3022OPTOISOLATOR 5KV TRIAC 6DIP |
3,608 |
|
Datasheet |
|
Q302X | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 10mA | - | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
Q3023OPTOISOLATOR 5KV TRIAC 6DIP |
4,120 |
|
Datasheet |
|
Q302X | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 5mA | - | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
.JPG)
|
EL3083S1(TA)OPTOISOLATOR 5KV TRIAC 6SMD |
3,776 |
|
Datasheet |
|
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
OR-MOC3073(L)S-TA1OPTOISOLATOR TRIAC OUTPUT 5000VR |
3,518 |
|
- |
|
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
EL3063M-VOPTOISOLATOR 5KV TRIAC 6DIP |
3,265 |
|
Datasheet |
|
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
PC4SD21NTZCOPTOISOLATOR 5KV TRIAC 6DIP |
5,770 |
|
Datasheet |
|
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
