Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Base Resonator | Type | Frequency | Function | Output | Voltage - Supply | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Ratings | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASEMB-26.000MHZ-LY-TMEMS OSC XO 26.0000MHZ CMOS SMD |
29,849 |
|
Datasheet |
 |
ASEMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 26 MHz | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | ±10ppm | - | -40°C ~ 85°C | - | 16mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.035" (0.90mm) |
|
SIT1566AC-JV-XXE-32.768DMEMS OSC TCXO 32.7680KHZ CSP |
16,017 |
|
Datasheet |
|
SiT1566 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | 32.768 kHz | - | LVCMOS | 1.8V ~ 3.3V | ±3ppm | - | -20°C ~ 70°C | - | 5.3µA | - | Surface Mount | 4-CSP (1.54x.84) | 0.061" L x 0.033" W (1.54mm x 0.84mm) | 0.024" (0.60mm) |
|
LFTCXO073004XTAL OSC TCXO 26.0000MHZ SNWV |
20,540 |
|
Datasheet |
|
IQXT-350 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -30°C ~ 85°C | - | 1.5mA | - | Surface Mount | - | 0.065" L x 0.049" W (1.65mm x 1.25mm) | 0.022" (0.55mm) |
|
|
SIT1566AC-JV-18E-32.768EMEMS OSC TCXO 32.7680KHZ LVCMOS |
44,647 |
|
Datasheet |
|
SiT1566 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | 32.768 kHz | - | LVCMOS | 1.8V | ±3ppm | - | -20°C ~ 70°C | - | 5.3µA | - | Surface Mount | 4-CSP (1.54x.84) | 0.061" L x 0.033" W (1.54mm x 0.84mm) | 0.024" (0.60mm) |
|

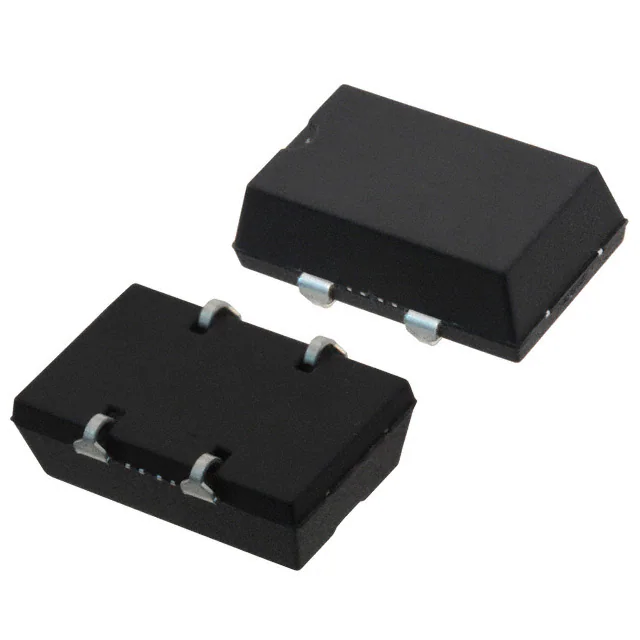

ECS-8FMX-010-TRXTAL OSC XO 1.0000MHZ CMOS TTL |
31,613 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 1 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
ECS-8FA3X-250-TRXTAL OSC XO 25.0000MHZ CMOS SMD |
14,127 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS | 3.3V | ±200ppm | - | -40°C ~ 85°C | - | 9mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
ECS-8FMX-400-TRXTAL OSC XO 40.0000MHZ CMOS TTL |
45,797 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 40 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
ECS-8FMX-024-TRXTAL OSC XO 2.4576MHZ CMOS TTL |
16,602 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 2.4576 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
ECS-8FMX-160-TRXTAL OSC XO 16.0000MHZ CMOS TTL |
15,622 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 16 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
SIT1568AI-JE-DCC-32.768EMEMS OSC TCXO 32.7680KHZ LVCMOS |
18,303 |
|
Datasheet |
|
SiT1568 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | 32.768 kHz | - | LVCMOS | 1.8V | ±5ppm | - | -40°C ~ 85°C | - | 5.3µA | - | Surface Mount | 4-CSP (1.54x.84) | 0.061" L x 0.033" W (1.54mm x 0.84mm) | 0.024" (0.60mm) |
|
|
ECS-8FMX-200-TRXTAL OSC XO 20.0000MHZ CMOS TTL |
34,649 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 20 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
|
ECS-8FMX-018-TRXTAL OSC XO 1.8432MHZ CMOS TTL |
28,336 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 1.8432 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
NX3241E0100.000000XTAL OSC XO 100.0000MHZ HCSL SMD |
27,731 |
|
Datasheet |
|
SaRonix-eCera™ NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 100 MHz | Enable/Disable | HCSL | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 70mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.041" (1.05mm) |
|
CWX823-025.0MXTAL OSC XO 25.0000MHZ LVCMOS |
43,648 |
|
Datasheet |
|
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
ECS-8FMX-049-TRXTAL OSC XO 4.9152MHZ CMOS TTL |
45,047 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 4.9152 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
CWX823-050.0MXTAL OSC XO 50.0000MHZ LVCMOS |
44,292 |
|
Datasheet |
|
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 50 MHz | Enable/Disable | LVCMOS | 3.3V | ±50ppm | - | -20°C ~ 70°C | - | 30mA | - | Surface Mount | - | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.051" (1.30mm) |
|
|
ECS-8FMX-184-TRXTAL OSC XO 18.4320MHZ CMOS TTL |
36,316 |
|
Datasheet |
|
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | 18.432 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.551" L x 0.341" W (14.00mm x 8.65mm) | 0.185" (4.70mm) |
|
ASDMB-25.000MHZ-LY-TMEMS OSC XO 25.0000MHZ LVCMOS |
38,706 |
|
Datasheet |
|
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 25 MHz | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | ±10ppm | - | -40°C ~ 85°C | - | 16mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
|

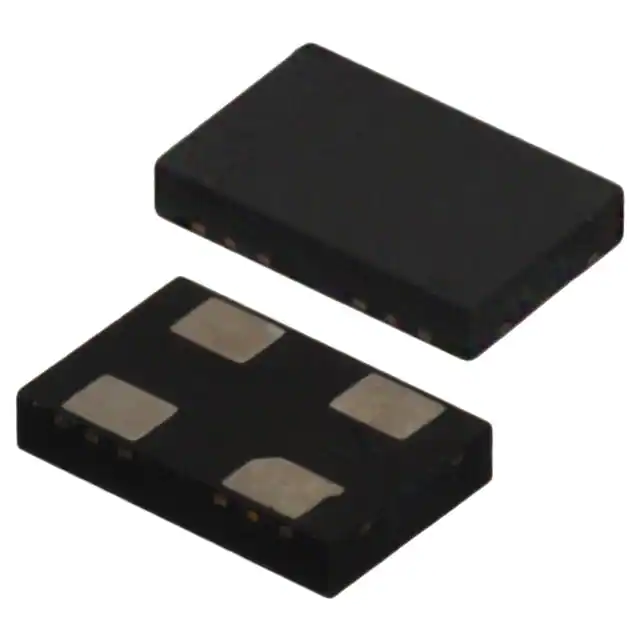

ASFLMB-50.000MHZ-LY-TMEMS OSC XO 50.0000MHZ LVCMOS |
34,583 |
|
Datasheet |
|
ASFLMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 50 MHz | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | ±10ppm | - | -40°C ~ 85°C | - | 16mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.035" (0.90mm) |
|
|
ASDMB-24.000MHZ-LY-TMEMS OSC XO 24.0000MHZ LVCMOS |
46,796 |
|
Datasheet |
|
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | 24 MHz | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | ±10ppm | - | -40°C ~ 85°C | - | 16mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.035" (0.90mm) |
