Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Output Isolation	Internal Switch(s)	Voltage - Breakdown	Topology	Voltage - Start Up	Voltage - Supply (Vcc/Vdd)	Duty Cycle	Frequency - Switching	Power (Watts)	Fault Protection	Control Features	Operating Temperature	Grade	Qualification	Supplier Device Package	Mounting Type
VN1160C-E IC OFFLINE SWITCH DPAK STMicroelectronics	2,851	-	RFQ	Datasheet	-	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Active	-	-	-	-	-	9V ~ 16V	-	-	-	-	-	-	-	-	DPAK	Surface Mount
VN1160C-1-E IC OFFLINE SWITCH IPAK STMicroelectronics	1,339	-	RFQ	Datasheet	-	TO-251-3 Short Leads, IPAK, TO-251AA	Tube	Active	-	-	-	-	-	9V ~ 16V	-	-	-	-	-	-	-	-	IPAK	Through Hole
VN1160T-E IC OFFLINE SWITCH TO220 STMicroelectronics	2,824	-	RFQ	Datasheet	-	TO-220-3	Tube	Active	-	-	-	-	-	9V ~ 16V	-	-	-	-	-	-	-	-	TO-220	Through Hole
TNY375GN-TL IC OFFLINE SWITCH FLYBACK 8SMD Power Integrations	1,342	-	RFQ	-	TinySwitch®-PK	8-SMD (7 Leads), Gull Wing	Tape & Reel (TR)	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	15 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	SMD-8C	Surface Mount
TNY376GN-TL IC OFFLINE SWITCH FLYBACK 8SMD Power Integrations	2,919	-	RFQ	-	TinySwitch®-PK	8-SMD (7 Leads), Gull Wing	Tape & Reel (TR)	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	19 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	SMD-8C	Surface Mount
TNY377GN-TL IC OFFLINE SWITCH FLYBACK 8SMD Power Integrations	1,804	-	RFQ	-	TinySwitch®-PK	8-SMD (7 Leads), Gull Wing	Tape & Reel (TR)	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	23.5 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	SMD-8C	Surface Mount
TNY378GN-TL IC OFFLINE SWITCH FLYBACK 8SMD Power Integrations	1,107	-	RFQ	-	TinySwitch®-PK	8-SMD (7 Leads), Gull Wing	Tape & Reel (TR)	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	28 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	SMD-8C	Surface Mount
TNY378PN IC OFFLINE SWITCH FLYBACK 8DIP Power Integrations	2,886	-	RFQ	-	TinySwitch®-PK	8-DIP (0.300", 7.62mm), 7 Leads	Tube	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	28 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	8-PDIP-C	Through Hole
TNY379PN IC OFFLINE SWITCH FLYBACK 8DIP Power Integrations	2,343	-	RFQ	-	TinySwitch®-PK	8-DIP (0.300", 7.62mm), 7 Leads	Tube	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	32 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	8-PDIP-C	Through Hole
TNY380GN-TL IC OFFLINE SWITCH FLYBACK 8SMD Power Integrations	1,979	-	RFQ	-	TinySwitch®-PK	8-SMD (7 Leads), Gull Wing	Tape & Reel (TR)	Obsolete	Isolated	Yes	700V	Flyback	-	-	65%	132kHz ~ 264kHz	36.5 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN	-40°C ~ 150°C (TJ)	-	-	SMD-8C	Surface Mount
LNK632DG IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	1,788	-	RFQ	Datasheet	LinkSwitch®-II	8-SOIC (0.154", 3.90mm Width), 7 Leads	Tube	Discontinued at Digi-Key	Isolated	Yes	700V	Flyback	-	-	55%	105kHz	3.1 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)	-	-	SO-8C	Surface Mount
FAN7602CN IC OFFLINE SWITCH FLYBACK 8DIP onsemi	1,922	-	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	Isolated	No	-	Flyback	12 V	8V ~ 25V	75%	65kHz	48 W	Over Load, Over Temperature, Over Voltage	-	-25°C ~ 125°C (TA)	-	-	8-DIP	Through Hole

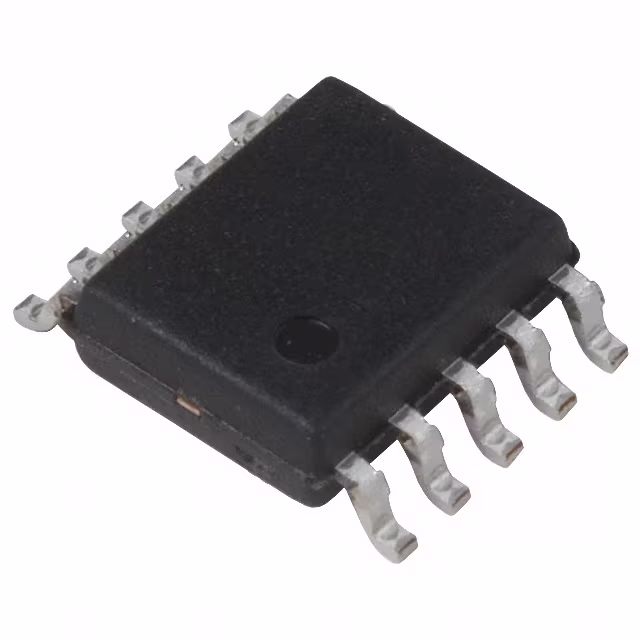

FAN7601BG IC OFFLINE SWITCH FLYBACK 10SSOP onsemi	1,245	-	RFQ	Datasheet	-	10-SOP (0.154", 3.90mm Width)	Tube	Obsolete	-	Yes	-	Flyback	12 V	8V ~ 20V	95%	Up to 300kHz	-	Over Temperature, Over Voltage	Frequency Control, Soft Start	-40°C ~ 150°C (TJ)	-	-	10-SSOP	Surface Mount
FAN7601BM IC OFFLINE SWITCH FLYBACK 8SOIC onsemi	1,300	-	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Obsolete	-	Yes	-	Flyback	12 V	8V ~ 20V	95%	Up to 300kHz	-	Over Temperature, Over Voltage	Frequency Control, Soft Start	-40°C ~ 150°C (TJ)	-	-	8-SOIC	Surface Mount

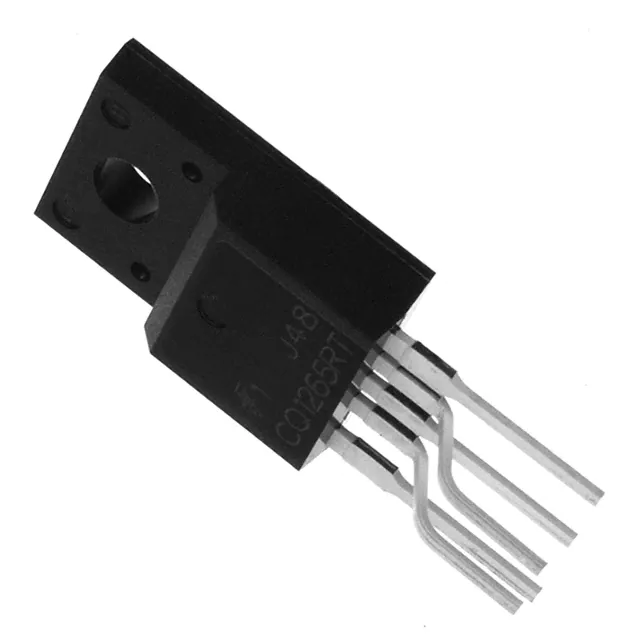

FS6M07652RTCYDT IC OFFLINE SWITCH TO220F-5L onsemi	1,687	-	RFQ	Datasheet	FPS™	TO-220-5 Full Pack, Formed Leads	Tube	Obsolete	-	Yes	650V	-	15 V	9V ~ 35V	80%	70kHz	-	Current Limiting, Over Load, Over Temperature, Over Voltage	Soft Start	-25°C ~ 85°C (TA)	-	-	TO-220F-5L (Forming)	Through Hole
FS6M12653RTCYDT IC OFFLINE SWITCH TO220F-5L onsemi	1,532	-	RFQ	-	FPS™	TO-220-5 Full Pack, Formed Leads	Tube	Obsolete	-	Yes	650V	-	15 V	9V ~ 35V	80%	70kHz	-	Current Limiting, Over Load, Over Temperature, Over Voltage	Soft Start	-25°C ~ 85°C (TA)	-	-	TO-220F-5L (Forming)	Through Hole
FSQ0465RSWDTU IC OFFLINE SW FLBACK TO220F-6L onsemi	1,522	-	RFQ	Datasheet	FPS™	TO-220-6 Full Pack, Formed Leads	Tube	Obsolete	Isolated	Yes	650V	Flyback	12 V	8V ~ 20V	-	48kHz ~ 67kHz	70 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	Sync	-25°C ~ 85°C (TA)	-	-	TO-220F-6L (Forming)	Through Hole
FSQ0565RSWDTU IC OFFLINE SW FLBACK TO220F-6L onsemi	1,934	-	RFQ	Datasheet	FPS™	TO-220-6 Full Pack, Formed Leads	Tube	Obsolete	Isolated	Yes	650V	Flyback	12 V	8V ~ 20V	-	48kHz ~ 67kHz	80 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	Sync	-25°C ~ 85°C (TA)	-	-	TO-220F-6L (Forming)	Through Hole
KA3882CDTF IC OFFLINE SWITCH FLYBACK 8SOIC onsemi	2,105	-	RFQ	-	-	8-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Obsolete	-	No	-	Flyback	16 V	10V ~ 30V	96%	Up to 500kHz	-	Current Limiting	Frequency Control	0°C ~ 70°C (TA)	-	-	8-SOIC	Surface Mount
KA5H0165RN IC OFFLINE SWITCH FLYBACK 8DIP onsemi	1,723	-	RFQ	Datasheet	FPS™	8-DIP (0.300", 7.62mm)	Tube	Obsolete	-	Yes	650V	Flyback	15 V	8.8V ~ 30V	67%	100kHz	-	Current Limiting, Over Load, Over Temperature, Over Voltage	-	-25°C ~ 85°C (TA)	-	-	8-DIP	Through Hole

Total 4433 Record«Prev 1... 193 194 195 196197198 199 200...222 Next»
