Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6RL-14-ASI DC6RELAY GEN PURPOSE SPDT 8A 6V |
49,722 |
|
Datasheet |
 |
G6RL | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 36.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
T9GS2L14-18RELAY GEN PURPOSE SPST 20A 18V |
20,070 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 18VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5CA-1A4-H DC5RELAY GEN PURPOSE SPST 10A 5V |
21,188 |
|
Datasheet |
|
G5CA | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | General Purpose | - | - |
|
G5RLU-1A-E DC6RELAY GEN PURPOSE SPST 16A 6V |
35,728 |
|
Datasheet |
|
G5RL-U | Tube | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 100 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

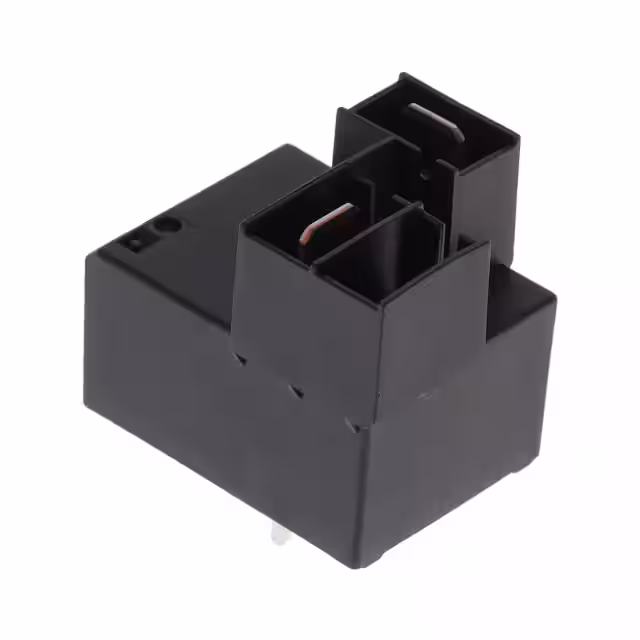

T9GS1L24-22RELAY GEN PURPOSE SPST 30A 22V |
25,073 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 22VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 41 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J115F31CL240VACSRELAY GEN PURPOSE SPDT 40A 240V |
48,185 |
|
Datasheet |
|
J115F3 | Tray | Active | Chassis Mount | 240VAC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 15.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 180 VAC | 72 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
DSP1A-DC6V-RRELAY GEN PURPOSE SPST 8A 6V |
35,701 |
|
Datasheet |
|
DSP | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 50 mA | Non Latching | Reverse Coil Polarity | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ADW1106HTWRELAY GEN PURPOSE SPST 16A 6V |
23,951 |
|
Datasheet |
|
DW | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 33.3 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
ADW1109TWRELAY GEN PURPOSE SPST 8A 9V |
42,653 |
|
Datasheet |
|
DW | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 2000VA | 22.2 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GV2L24-15RELAY GEN PURPOSE SPST 20A 15V |
11,408 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 15VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 60 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

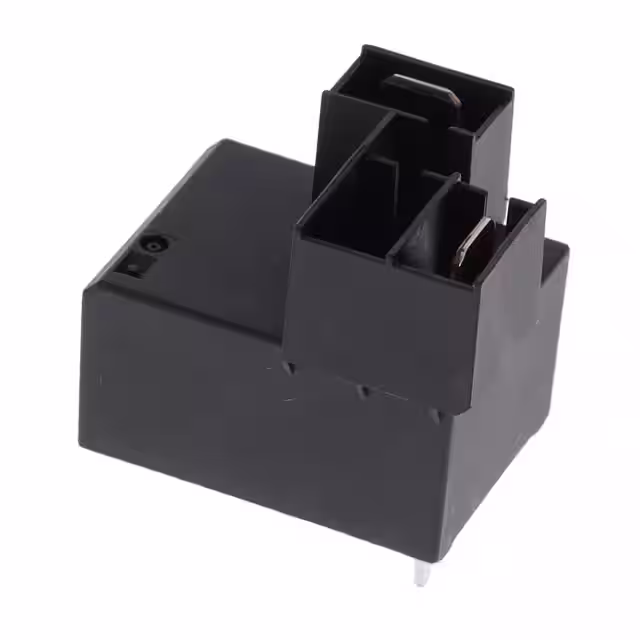

T9GV2L24-18RELAY GEN PURPOSE SPST 20A 18V |
39,087 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 18VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
T9GV2L24-22RELAY GEN PURPOSE SPST 20A 22V |
31,208 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 22VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 41 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 16.5 VDC | 2.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
T9GV2L24-9RELAY GEN PURPOSE SPST 20A 9V |
28,779 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 9VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 100 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 6.75 VDC | 0.9 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
L114FL1CS24VDC.60DRELAY GEN PURPOSE SPDT 20A 24V |
40,273 |
|
Datasheet |
|
L114FL | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
T9GS2L24-9RELAY GEN PURPOSE SPST 20A 9V |
25,024 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 9VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 100 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

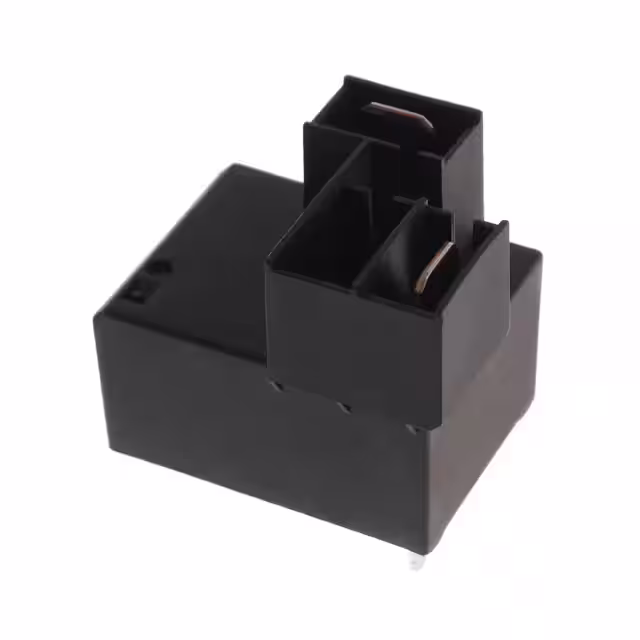

T9GS2L24-15RELAY GEN PURPOSE SPST 20A 15V |
34,303 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 15VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 60 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G6RL-1A-ASI DC3RELAY GEN PURPOSE SPST 10A 3V |
46,443 |
|
Datasheet |
|
G6RL | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 73.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
G2R-1A DC48RELAY GEN PURPOSE SPST 10A 48V |
39,303 |
|
Datasheet |
|
G2R | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

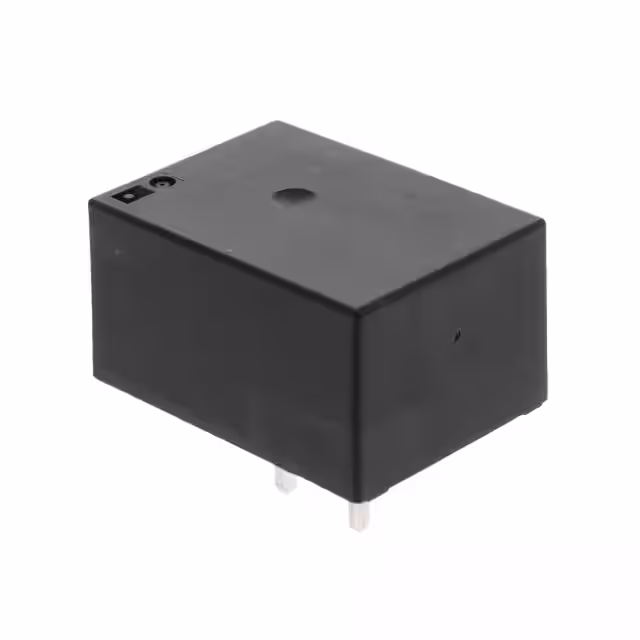

T9GV5L14-18RELAY GEN PURPOSE SPDT 20A 18V |
47,188 |
|
Datasheet |
|
T9G | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 50 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JVN1A-18V-FRELAY GEN PURPOSE SPST 16A 18V |
28,030 |
|
Datasheet |
|
JV-N | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 13.5 VDC | 0.9 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
