Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

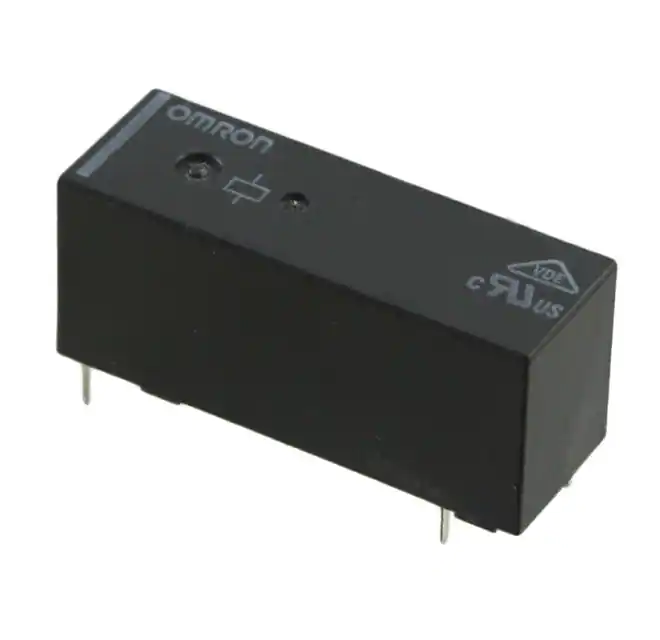

G6RL-14-SR-ASI DC5RELAY GEN PURPOSE SPDT 8A 5V Omron Electronics Inc-EMC Div |
15,819 |
|
![]() Datasheet |
![]() |
G6RL | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 60.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
![]() |
G8P1A4PVASDC12RELAY GEN PURPOSE SPST 30A 12V Omron Electronics Inc-EMC Div |
11,750 |
|
![]() Datasheet |
![]() |
G8P | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
![]() |
G2R-1A-E-DC6RELAY GEN PURPOSE SPST 16A 6V Omron Electronics Inc-EMC Div |
25,789 |
|
![]() Datasheet |
![]() |
G2R | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 88.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G6RL-14-SR-ASI DC12RELAY GEN PURPOSE SPDT 8A 12V Omron Electronics Inc-EMC Div |
49,044 |
|
![]() Datasheet |
![]() |
G6RL | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 25.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
![]() |
G2R-1A4-T130 DC12RELAY GEN PURPOSE SPST 8A 12V Omron Electronics Inc-EMC Div |
21,807 |
|
![]() Datasheet |
![]() |
G2R | Tray | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
G6RL-1-SR-ASI DC5RELAY GEN PURPOSE SPDT 8A 5V Omron Electronics Inc-EMC Div |
13,719 |
|
![]() Datasheet |
![]() |
G6RL | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 60.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
G6RL-14-SR-ASI DC3RELAY GENERAL PURPOSE SPDT 8A 3V Omron Electronics Inc-EMC Div |
37,610 |
|
![]() Datasheet |
![]() |
G6RL | Bulk | Active | Through Hole | 3VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 101 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.4 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
![]() |
G6RN-1-AP4 DC5 BY OMBRELAY GEN PURPOSE SPST 8A 5V Omron Electronics Inc-EMC Div |
14,945 |
|
![]() Datasheet |
![]() |
G6RN | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 30VDC - Max | 2000VA, 240W | 43.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
G6RL-1-SR-ASI DC24RELAY GEN PURPOSE SPDT 8A 24V Omron Electronics Inc-EMC Div |
19,832 |
|
![]() Datasheet |
![]() |
G6RL | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 12.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
G6RL-14-SR-ASI DC24RELAY GEN PURPOSE SPDT 8A 24V Omron Electronics Inc-EMC Div |
30,025 |
|
![]() Datasheet |
![]() |
G6RL | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 12.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
