DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1SR-2403SJZ0.5W DC/DC Converter |
4 |
|
Datasheet |
 |
* | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 22.8V | 25.2V | 3.3V | - | - | - | 200mA | 660 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 68% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
AM1SR-2415SJZ0.5W DC/DC Converter |
3 |
|
Datasheet |
|
* | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 22.8V | 25.2V | 15V | - | - | - | 50mA | 750 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
AM1DS-2424DH30JZ1W DC/DC Converter |
2 |
|
Datasheet |
|
* | 7-SIP Module | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | -24 ~ 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
PEME1-S5-D3-SDC DC CONVERTER +/-3.3V 1W |
1 |
|
Datasheet |
|
PEME1-S (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
B0505S-1WR2DC DC CONVERTER 1 OUTPUT 1W 5V |
3,446 |
|
- |
|
B_S-1WR2 (1W) | 4-SIP Module | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 60950-1 |
|
LMT78_05-0.5RNON-ISOLATED POL MODULE DC DC CO |
3,649 |
|
Datasheet |
|
LMT78_0.5R | 10-SMD Module, 8 Leads | Tube | Obsolete | Non-Isolated PoL Module | 1 | 6.5V | 36V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 84% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
|
LMT78_1.5-0.5RDC-DC STEP DOWN REGULATORS |
2,908 |
|
Datasheet |
|
LMT78_0.5R | 10-SMD Module, 8 Leads | Tube | Obsolete | Non-Isolated PoL Module | 1 | 4.75V | 36V | 1.5V | - | - | - | 500mA | 750 mW | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 76% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
F0505N-1WR3DC DC CONVERTER 5V 1W |
4,592 |
|
Datasheet |
|
F_N-1WR3 (1W) | 7-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CE, cURus | - |
|
PYSE1-S24-S9-DDC-DC 1.5KV ISOLATED, 1 W, 21.6~ |
3,236 |
|
Datasheet |
|
PYSE1-D (1W) | 8-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 80% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
|

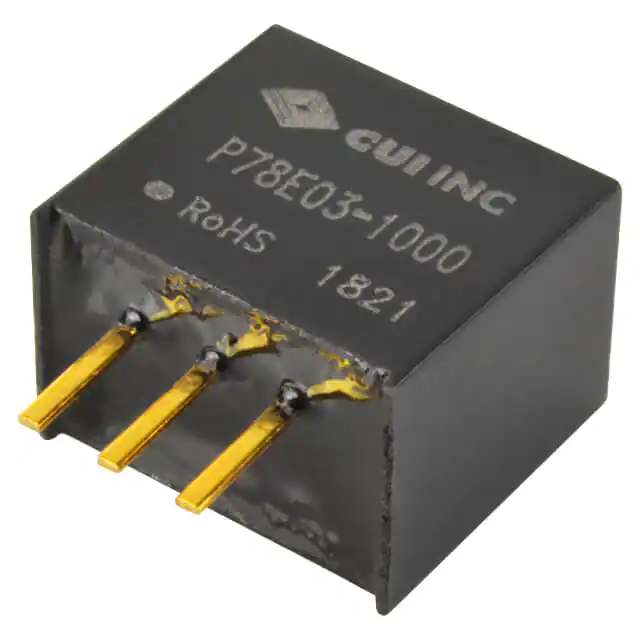

P78E03-1000DC DC CONVERTER 3.3V 3.3W |
3,405 |
|
Datasheet |
|
P78E-1000 | 3-SIP Module | Tube | Not For New Designs | Non-Isolated PoL Module | 1 | 6V | 36V | 3.3V | - | - | - | 1A | 3.3 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - |
|
|
AM1DR-1505SJZ1W DC/DC Converter |
10 |
|
Datasheet |
|
* | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 14.25V | 15.75V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 73% | - | - | Through Hole | - | - | - | - |
|
IES0105S05DC DC CONVERTER 5V 1W |
2,316 |
|
Datasheet |
|
IES01 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, TUV, UL | 62368-1 |
|
|
IES0112S05DC DC CONVERTER 5V 1W |
2,364 |
|
Datasheet |
|
IES01 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
|
IES0124S05DC DC CONVERTER 5V 1W |
2,870 |
|
Datasheet |
|
IES01 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
|
IES0103S05DC-DC, 1W, UNREGULATED, SMD |
2,258 |
|
Datasheet |
|
IES01 (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
E1209S-2WR3DC DC CONVERTER +/-9V 2W |
20 |
|
Datasheet |
|
E1209S-2WR3 (2W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 111mA, 111mA | 1.9 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
E1224D-2WR3DC DC CONVERTER +/-24V 2W |
20 |
|
Datasheet |
|
E1224D-2WR3 (2W) | 14-DIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 24V | -24V | - | - | 42mA, 42mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | CE | 62368-1 |
|
|
IES0105S05-H-TRDC DC CONVERTER 5V 8DIP SMD |
3,678 |
|
Datasheet |
|
IES01 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | UL | - |
|
VXO7805-1000DC DC CONVERTER 5V OR -5V 5W |
3,618 |
|
Datasheet |
|
VXO78-1000 | 3-SIP Module | Tray | Not For New Designs | Linear Regulator Replacement | 1 | 8V | 36V or 27V | 5V or -5V | - | - | - | 1A or 500mA | 5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PYSE1-S24-S12-DDC-DC 1.5KV ISOLATED, 1 W, 21.6~ |
2,058 |
|
Datasheet |
|
PYSE1-D (1W) | 8-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
