Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV9F2T0SS-344SWITCH PB DPST-NO/NC 2A 48V |
4,383 |
|
Datasheet |
 |
PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|
|
PV9F2T0SS-314SWITCH PB DPST-NO/NC 2A 48V |
2,499 |
|
Datasheet |
|
PV9, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Off, Off-On | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 28.00mm Dia | -20°C ~ 55°C |
|
|
516-AP-CRD-2SWITCH PUSH BUTTON |
3,346 |
|
- |
|
16-3P | Bulk | Active | Panel Mount, Rear | Standard | DPST | On-Off | 1A (AC) | 125 V | - | Round, Button | - | Red | - | - | Wire Leads | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
|
A22NL-RPA-TRA-G002-RASWITCH PUSH SPST-NC 10A 120V |
4,234 |
|
Datasheet |
|
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TRA-G100-RASWITCH PUSH SPST-NO 10A 120V |
3,132 |
|
Datasheet |
|
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TWA-G002-WASWITCH PUSH SPST-NC 10A 120V |
3,957 |
|
Datasheet |
|
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TWA-G100-WASWITCH PUSH SPST-NO 10A 120V |
2,392 |
|
Datasheet |
|
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TYA-G002-YASWITCH PUSH SPST-NC 10A 120V |
4,084 |
|
Datasheet |
|
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Off | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
A22NL-RPA-TYA-G100-YASWITCH PUSH SPST-NO 10A 120V |
2,248 |
|
Datasheet |
|
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|

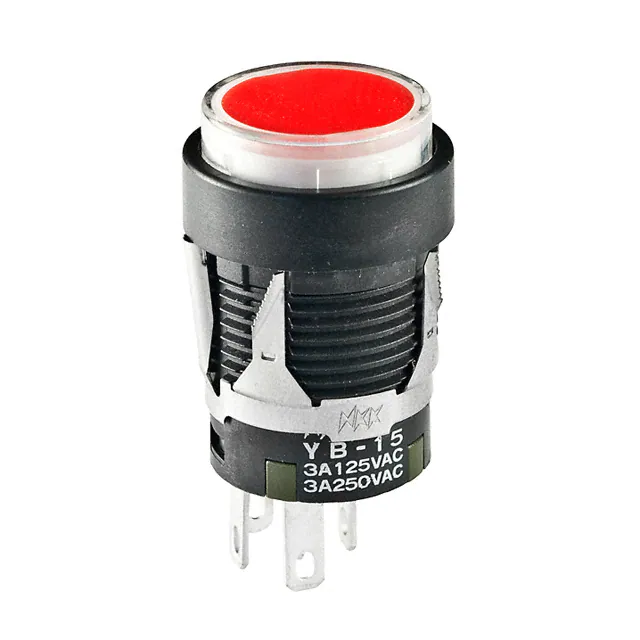

YB15MKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
2,986 |
|
Datasheet |
|
YB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW01-5C-JBSWITCH PUSHBUTTON SPDT 3A 125V |
3,186 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
4,973 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW01-5D-JBSWITCH PUSHBUTTON SPDT 3A 125V |
4,307 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW01-5D-JDSWITCH PUSHBUTTON SPDT 3A 125V |
4,616 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15KKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
2,162 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-5F-JFSWITCH PUSHBUTTON SPDT 3A 125V |
3,959 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15SKW01-1CF02-JBSWITCH PUSHBUTTON SPDT 3A 125V |
2,312 |
|
Datasheet |
|
YB | Bulk | Last Time Buy | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB15MKW01-5C-JBSHORT BODY PUSHBUTTON/ILLUMINATE |
3,679 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
30-200-2SSWITCH PUSH SPST BLK,12"LEADS |
3,459 |
|
Datasheet |
|
30 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | - | Strain Relief | Circular - 13.46mm Dia | -40°C ~ 80°C |
|
|
30-200-3SSWITCH PUSH SPST-NO 0.15A 24V |
4,259 |
|
Datasheet |
|
30 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | - | Strain Relief | Circular - 13.46mm Dia | -40°C ~ 80°C |
