Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB26SKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
13 |
|
Datasheet |
 |
YB | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

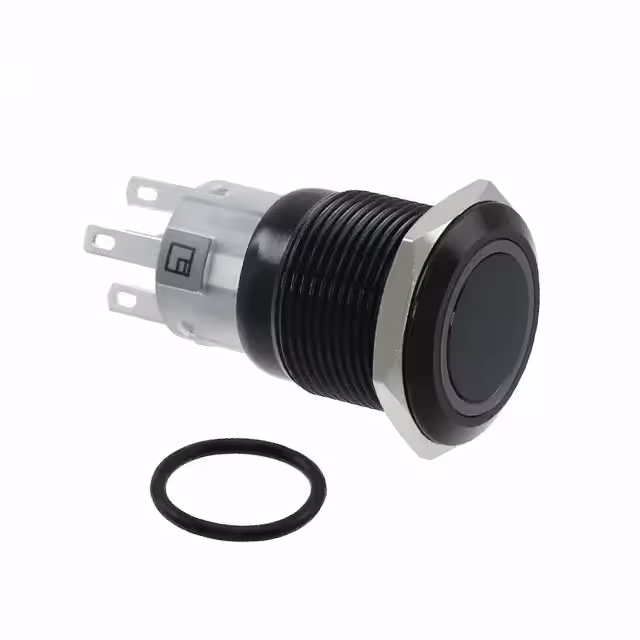

PV4F23011-334SWITCH PUSHBUTTON SPDT 2A 24V |
6 |
|
Datasheet |
|
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
AP4E200TWBESWITCH PUSH SPST-NO 0.125A 125V |
47 |
|
Datasheet |
|
AP | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
ULV7F23SS645SWITCH PUSHBUTTON SPDT 3A 125V |
16 |
|
Datasheet |
|
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
ULV7F23SS344SWITCH PUSHBUTTON SPDT 3A 250V |
84 |
|
Datasheet |
|
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
YB16WSKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
14 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
AV2210E612Q04SWITCH PUSHBUTTON SPDT 3A 250V |
90 |
|
Datasheet |
|
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2210E524Q04SWITCH PUSHBUTTON SPDT 3A 250V |
77 |
|
Datasheet |
|
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2211E624Q04SWITCH PUSHBUTTON SPDT 3A 250V |
66 |
|
Datasheet |
|
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
82-5161.1000SWITCH PB SPDT 3A 240V |
18 |
|
Datasheet |
|
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|
AVH22MSSFO002604SWITCH PUSHBUTTON SPDT 26A 125V |
56 |
|
Datasheet |
|
AVH | Box | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 26A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|
YB16WSKG01SWITCH PUSH SPDT 0.4VA 28V |
3,153 |
|
Datasheet |
|
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
DH251NBSG12SWITCH PB DPST-NO/NC 2A 125V |
9 |
|
Datasheet |
|
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
82-5151.1000.B001SWITCH PB SPDT 3A 240V |
10 |
|
Datasheet |
|
82 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 240 V | 240 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -30°C ~ 70°C |
|

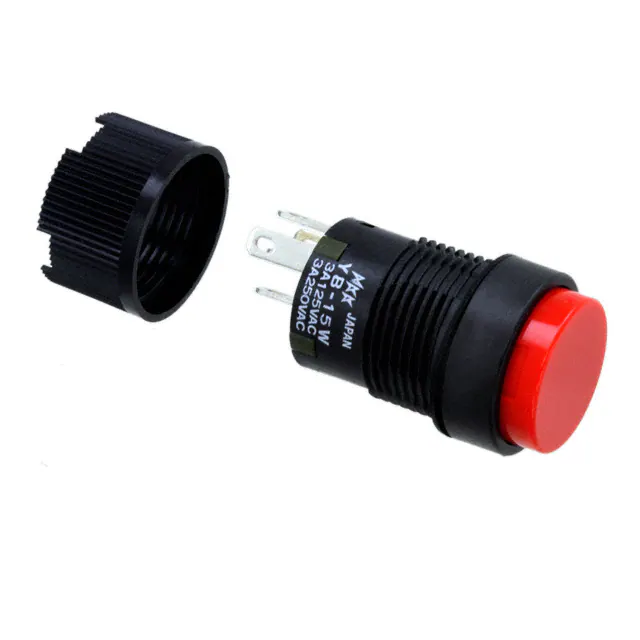

YB15WCKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
26 |
|
Datasheet |
|
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
DH221NBSRNSWITCH PB DPST-NO/NC 2A 125V |
6 |
|
Datasheet |
|
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
18-167.035SWITCH PB SPST-NO 0.1A 42V |
89 |
|
Datasheet |
|
18 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Round, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
18-187.035SWITCH PB SPST-NO 0.1A 42V |
26 |
|
Datasheet |
|
18 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 42 V | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | - | -25°C ~ 65°C |
|
18-257.035SWITCH PB SPST-NO 0.1A 42V |
25 |
|
Datasheet |
|
18 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 100mA (AC/DC) | 42 V | 42 V | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 65°C |
|
AV1920P712Q04SWITCH PUSHBUTTON DPDT 3A 250V |
98 |
|
Datasheet |
|
AV19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
