Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7102-12-1000RELAY REED DPST 500MA 12V |
17,982 |
|
Datasheet |
 |
7000 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-12-1000RELAY REED SPST 500MA 12V |
37,467 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7302-12-1000RELAY REED DPST 500MA 12V |
43,387 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 500VAC, 500VDC - Max | 18.8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2911-12-221RELAY 2000S |
14,531 |
|
Datasheet |
|
2900 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
|
7102-05-1010RELAY REED DPST 500MA 5V |
12,500 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1010RELAY REED 4PST 500MA 12V |
48,905 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3650-05-82RELAY REED 3PST 250MA 5V |
37,022 |
|
Datasheet |
|
3600 | Tube | Active | Through Hole | 5VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|

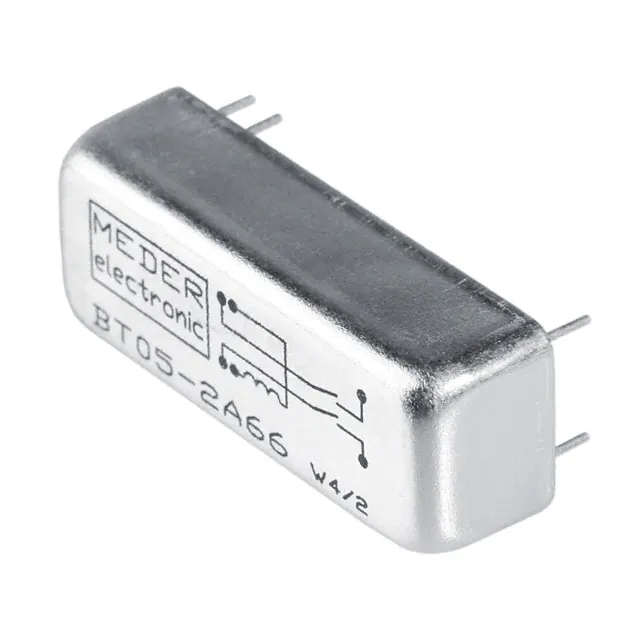

BT05-2A66RELAY REED DPST 500MA 5V |
28,395 |
|
Datasheet |
|
BT | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3650-12-52RELAY REED 3PST 250MA 12V |
20,912 |
|
Datasheet |
|
3600 | Tube | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 250 mA | 150VAC, 150VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3501-05-511RELAY REED SPST 500MA 5V |
49,374 |
|
Datasheet |
|
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2300-5069RELAY REED DPDT 250MA 5V |
14,130 |
|
- |
|
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1240-06-2104RELAY REED SPST 6V NSTD |
32,531 |
|
Datasheet |
|
1240 | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 4.5 VDC | 0.5 VDC | 1 ms | 100 µs | -20°C ~ 85°C | - |
|

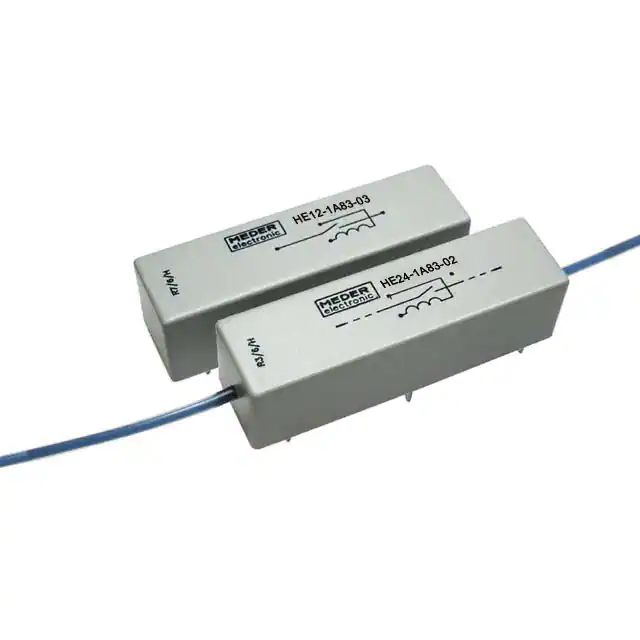

HE12-1A83-02RELAY REED SPST 3A 12V |
30,266 |
|
Datasheet |
|
HE | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 46.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
HE24-1A69-03HIGH VOLTAGE REED RELAY. FORM 1A |
43,738 |
|
Datasheet |
|
HE | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 51.6 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
H24-1B83REED RELAY |
37,891 |
|
- |
|
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SIP-1A05200V/1A REED RELAY, 1 FORM A, 5V |
48,241 |
|
Datasheet |
|
SIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.6 VDC | 1 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
MSIP-1A05D200V/0.5A MINI SIZE REED RELAY, |
37,528 |
|
Datasheet |
|
MSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 4 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
SD1A24ARELAY REED SPST 500MA 24V |
32,920 |
|
Datasheet |
|
30 | Bulk | Discontinued at Digi-Key | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 0.5 ms | -55°C ~ 85°C | - |
|
3572-1220-124RELAY REED DIP DPST .5A 12V W/DI |
42,017 |
|
Datasheet |
|
3572 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 150VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
MSIP-1A05200V/0.5A MINI SIZE REED RELAY, |
21,322 |
|
Datasheet |
|
MSIP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 4 VDC | 0.4 VDC | 0.5 ms | 300 µs | -20°C ~ 85°C | - |
