Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SAR90505RELAY REED SPST 500MA 5V |
41,177 |
|
Datasheet |
 |
S | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT71205URELAY REED SPST-NO 5KV 12V |
21,034 |
|
Datasheet |
|
DA | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT71205URELAY REED SPST-NC 5KV12V |
11,642 |
|
Datasheet |
|
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT72405URELAY REED SPST-NC 5KV 24V |
25,110 |
|
Datasheet |
|
DB | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT200-12RELAY REED SPST-NO 3A 12V |
40,623 |
|
Datasheet |
|
D200 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 6 ms | 1 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBR70575URELAY REED SPST-NC 7.5KV 5V |
37,783 |
|
Datasheet |
|
DB | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

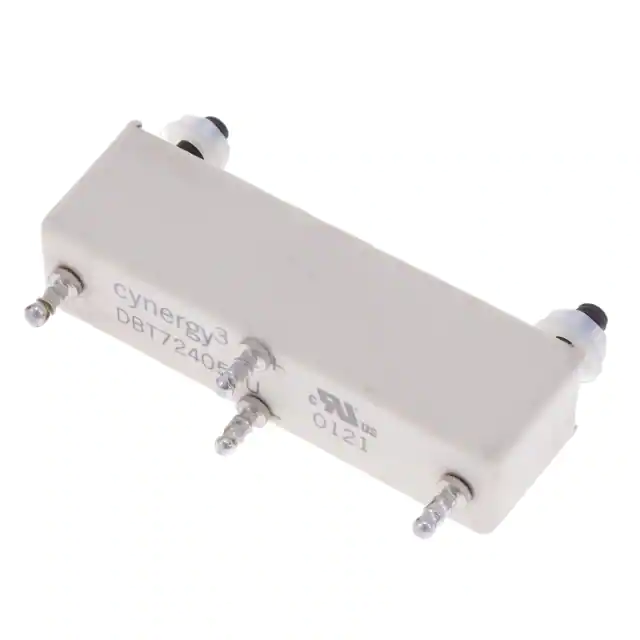

DBT72405PURELAY REED SPST-NC 5KV 24V |
17,047 |
|
Datasheet |
|
DB | Bulk | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBR70510RELAY REED SPST-NC 3A 5V |
41,888 |
|
Datasheet |
|
DB | Tray | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR71210PRELAY REED SPST-NO 3A 12V |
28,297 |
|
Datasheet |
|
DA | Tray | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR71210F-HRRELAY REED SPST-NO 3A 12V |
45,823 |
|
Datasheet |
|
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DBT71210URELAY REED SPST-NC 2A 12V |
14,222 |
|
Datasheet |
|
DB | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
3563-1231-244RELAY REED DIP SPDT .4A 24V W/DI |
43,645 |
|
Datasheet |
|
3563 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 100VDC - Max | 11 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
8L01-12-011RELAY REED SPST 500MA 12V |
45,554 |
|
Datasheet |
|
8L | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|

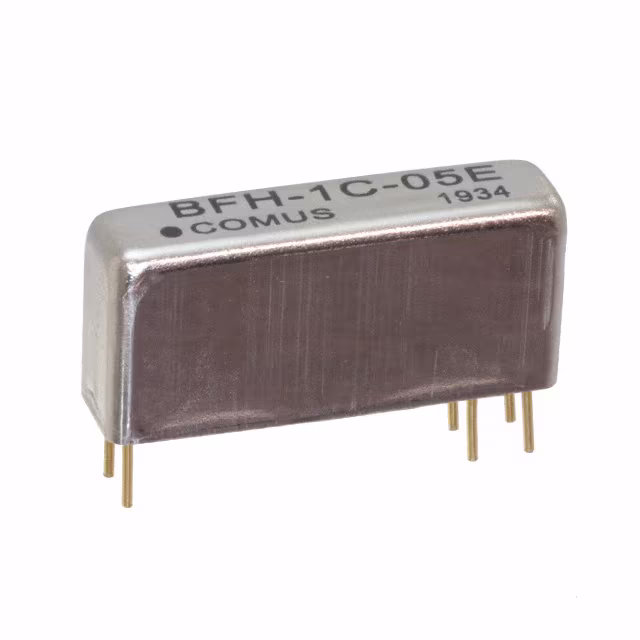

BFH-1C-05EREED RELAY SPDT .5A 5V |
46,835 |
|
Datasheet |
|
BFH | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 21.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH-1C-12REED RELAY SPDT .5A 12V |
47,511 |
|
Datasheet |
|
BFH | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
7102-05-1000RELAY REED DPST 500MA 5V |
47,052 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S8-0504URELAY REED SPST 1A 5V UL |
42,725 |
|
Datasheet |
|
S8 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S2-05PURELAY REED SPST 700MA 5V UL |
22,470 |
|
Datasheet |
|
S2 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-12PURELAY REED SPST 700MA 12V UL |
14,177 |
|
Datasheet |
|
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-24PURELAY REED SPST 700MA 24V UL |
33,474 |
|
Datasheet |
|
S2 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
