Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

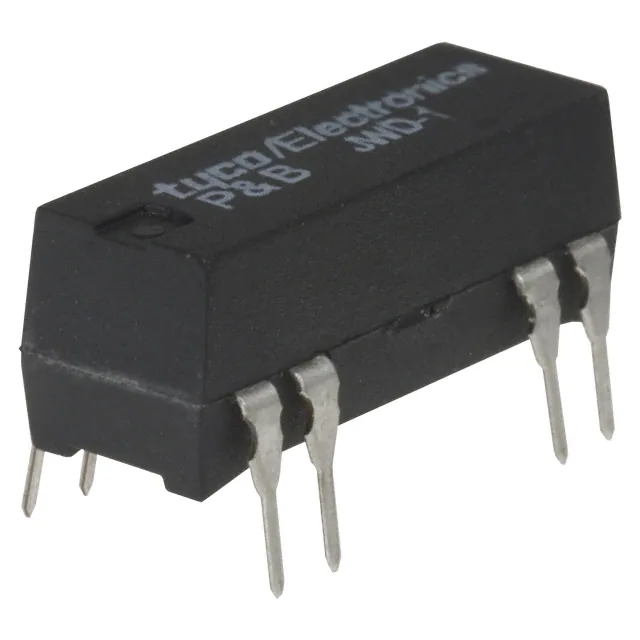

JWD-107-1RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
31,384 |
|
Datasheet |
 |
JWD | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-27RELAY REED DPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
22,321 |
|
Datasheet |
|
JWD | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-107-5RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
17,094 |
|
Datasheet |
|
JWD | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-172-8RELAY REED SPDT 500MA 24V TE Connectivity Potter & Brumfield Relays |
19,207 |
|
Datasheet |
|
JWD | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 500 mA | 28VDC - Max | 10.9 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 3 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|

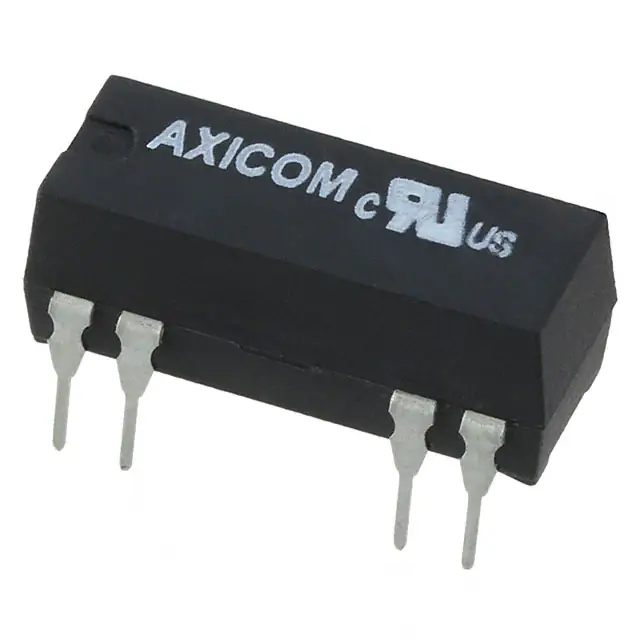

V23100V4305C011RELAY REED SPDT 250MA 5V TE Connectivity Potter & Brumfield Relays |
25,328 |
|
Datasheet |
|
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.5 VDC | 0.75 VDC | 1.1 ms | 1.6 ms | -40°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-10RELAY REED SPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
34,940 |
|
Datasheet |
|
JWD | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 11.2 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
JWS-117-1RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
32,853 |
|
Datasheet |
|
JWS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|

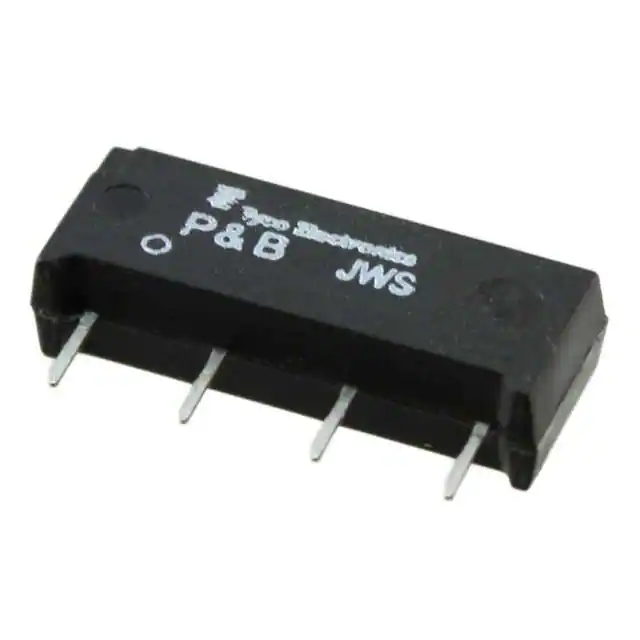

JWS-117-6RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
19,755 |
|
Datasheet |
|
JWS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-17RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
42,211 |
|
Datasheet |
|
JWD | Tube | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
JWD-171-28RELAY REED DPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
24,044 |
|
Datasheet |
|
JWD | Tube | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 10.9 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
