Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

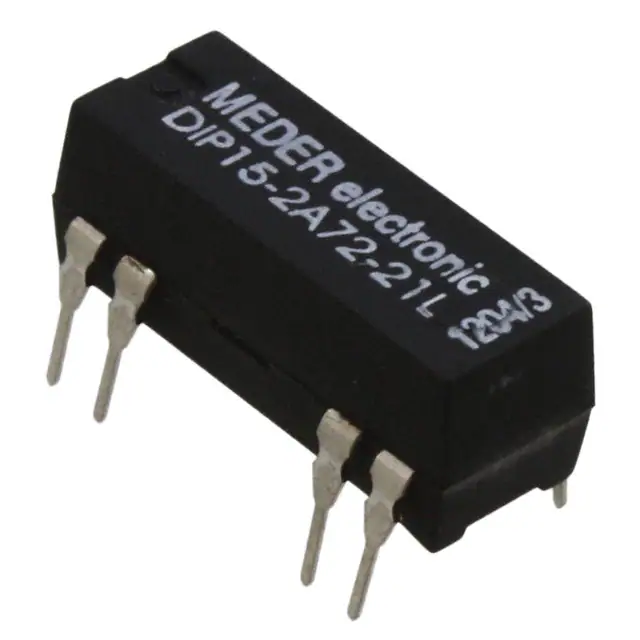

DIP15-2A72-21LRELAY REED DPST-NO 1A 15V Standex-Meder Electronics |
17,132 |
|
Datasheet |
 |
DIP | Tube | Active | Through Hole | 15VDC | DPST-NO (2 Form A) | 1 A | 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | Sealed - Fully | 10.5 VDC | 2.2 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MS05-1A87-75LRELAY REED SPST 500MA 5V Standex-Meder Electronics |
38,339 |
|
Datasheet |
|
MS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
DIP24-1A72-12DRELAY REED SPST 1A 24V Standex-Meder Electronics |
23,110 |
|
Datasheet |
|
DIP | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
MRE24-1A85-HVHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
30,533 |
|
Datasheet |
|
MRE | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Fully | 18 VDC | 2.4 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|
|
SHV24-1A85-78D3KHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
33,336 |
|
Datasheet |
|
SHV | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16.4 VDC | 3.6 VDC | 1.1 ms | 100 µs | -40°C ~ 105°C | - |
|
|
MRE12-1A85-HCHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
25,080 |
|
Datasheet |
|
MRE | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 30 mA | Non Latching | Magnetic Shield | PC Pin | Sealed - Fully | 8.5 VDC | 1.2 VDC | 1.5 ms | 600 µs | -20°C ~ 70°C | Rhodium (Rh) |
|

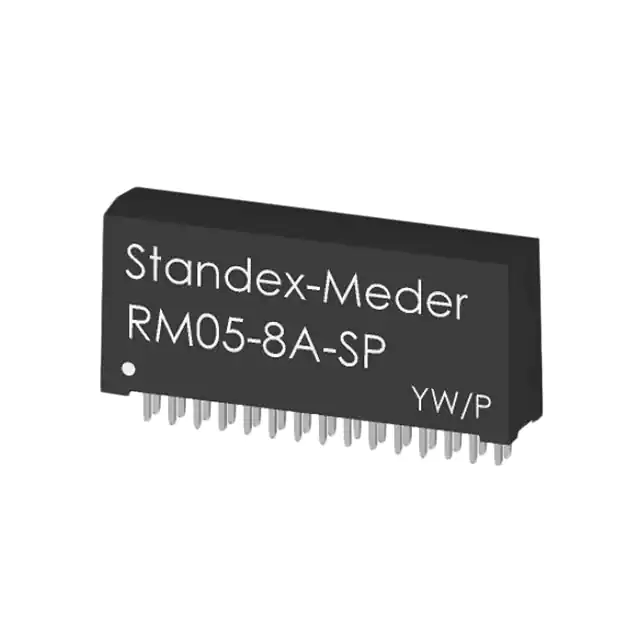

RM05-8A-SPRELAY REED 8PST 0.5A 5V Standex-Meder Electronics |
37,368 |
|
Datasheet |
|
RM | Bulk | Active | Through Hole | 5VDC | 8PST-NO (8 Form A) | 500 mA | 170VAC, 170VDC - Max | 10 mA | Non Latching | - | PC Pin | - | - | - | 0.6 ms | 0.1 ms | -20°C ~ 85°C | - |
|
NP05-1A66-500-210RELAY REED SPST 500MA 5V Standex-Meder Electronics |
49,762 |
|
Datasheet |
|
NP | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 70°C | - |
|
SIL05-1A72-74LRELAY REED SPST 0.5A 5V Standex-Meder Electronics |
42,906 |
|
Datasheet |
|
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
BE05-1A85-MHIGH VOLTAGE REED RELAY, FORM 1A Standex-Meder Electronics |
20,450 |
|
- |
|
BE | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 47.6 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | 1.1 ms | 100 µs | -20°C ~ 70°C | - |
