Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2-05EURELAY REED SPST 1A 5V UL |
47,757 |
|
Datasheet |
 |
S2 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-05-2ARELAY REED TWIN N/O 1.5KV 5V |
46,596 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-2ADMRELAY REED TWIN N/O 1.5KV 24V |
39,710 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

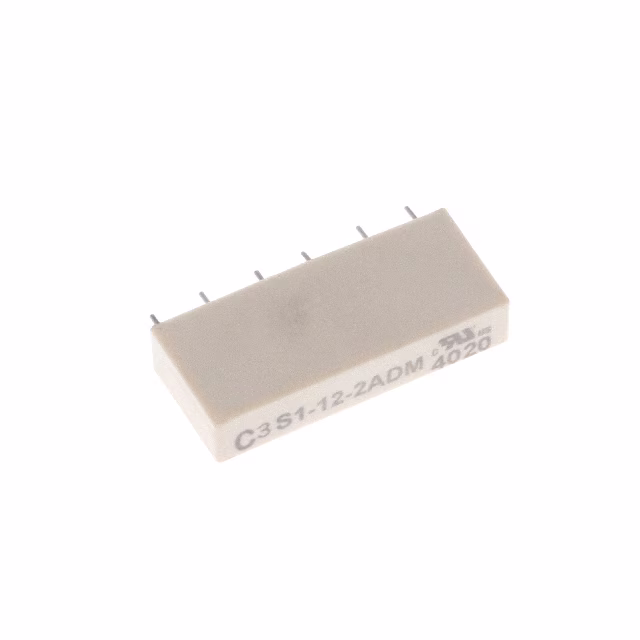

S1-12-2ADMRELAY REED TWIN N/O 1.5KV 12V |
48,763 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-05-BMRELAY REED 1 N/C 1.5KV 5V |
34,685 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-BDMRELAY REED 1 N/C 1.5KV 12V |
17,134 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
DAR70505-HRRELAY REED 5KV 5V SPST-NO |
11,619 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR72405-HRRELAY REED 5KV 24V SPST-NO |
36,694 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

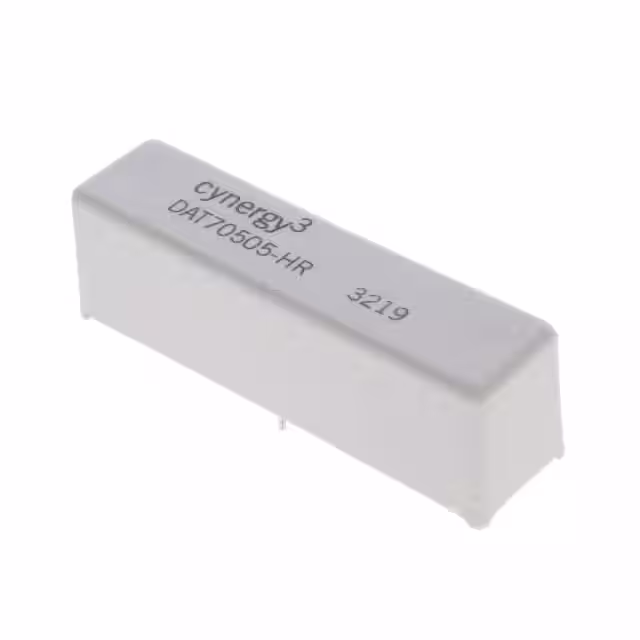

DAT70505-HRRELAY REED 5KV 5V SPST-NO |
18,612 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
D1-24-CMRELAY REED C/O 24V |
12,978 |
|
Datasheet |
|
D1 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 26.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
D1-05-CMRELAY REED C/O 5V |
39,056 |
|
Datasheet |
|
D1 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 100 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
D1-12-CMRELAY REED C/O 12V |
26,345 |
|
Datasheet |
|
D1 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 35.3 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
DAT70575-HRRELAY REED 7.5KV 5V SPST-NO |
44,556 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72405FURELAY REED SPST-NO 5KV 24V |
13,743 |
|
Datasheet |
|
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70505PURELAY REED SPST-NO 5KV 5V |
45,051 |
|
Datasheet |
|
DA | Bulk | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71205PURELAY REED SPST-NO 5KV 12V |
14,024 |
|
Datasheet |
|
DA | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 80 mA | Non Latching | - | Solder Turret | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DBT70575-HRRELAY REED 7.5KV 5V SPST-NC |
44,969 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 2 A | 5000VAC, 5000VDC - Max | 132 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT71275F-HRRELAY REED 7.5KV 12V SPST-NO |
12,771 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAR71210FRELAY REED SPST-NO 3A 12V |
38,952 |
|
Datasheet |
|
DA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin, Wire Leads | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT70510PRELAY REED SPST-NO 2A 5V |
26,441 |
|
Datasheet |
|
DA | Tray | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | Solder Turret | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
