Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7104-12-1011RELAY REED 4PST 500MA 12V |
30,783 |
|
Datasheet |
 |
7000 | Bulk | Active | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
BFH-2C05200V/0.5A REED RELAY, 2 FORM C, |
26,127 |
|
Datasheet |
|
BFH | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 1.5 ms | 2 ms | -40°C ~ 125°C | - | |
|
|
3602-05-92RELAY REED DPST 250MA 5V |
28,287 |
|
Datasheet |
|
3600 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3501-05-711RELAY REED SPST 500MA 5V |
13,053 |
|
Datasheet |
|
3500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-05-1010RELAY REED 4PST 500MA 5V |
10,404 |
|
Datasheet |
|
7000 | Bulk | Obsolete | Through Hole | 5VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7104-12-1000RELAY REED 4PST 500MA 12V |
42,865 |
|
Datasheet |
|
7000 | Bulk | Obsolete | Through Hole | 12VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3502-12-810RELAY REED DPST 500MA 12V |
13,109 |
|
Datasheet |
|
3500 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
S2-12EURELAY REED SPST 1A 12V UL |
46,953 |
|
Datasheet |
|
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-2ARELAY REED TWIN N/O 1.5KV 24V |
25,433 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-24-CRELAY REED C/O 24V |
16,308 |
|
Datasheet |
|
S3 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-12-CMRELAY REED C/O 12V |
35,243 |
|
Datasheet |
|
S3 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 66.7 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|

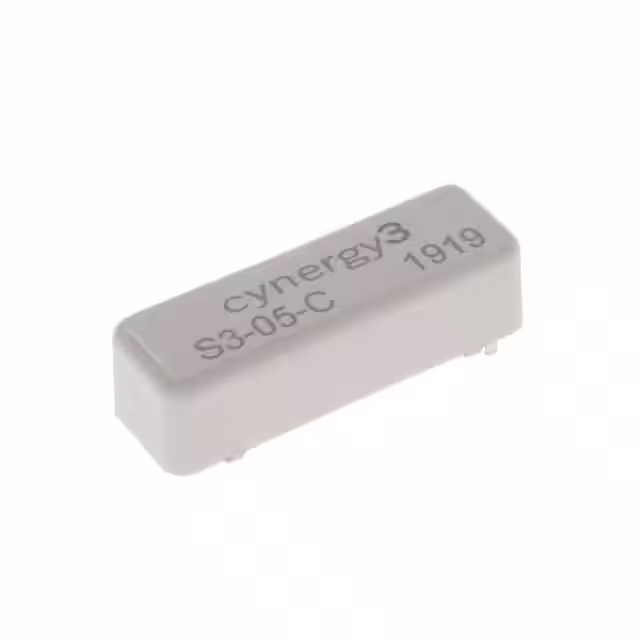

S3-05-CRELAY REED C/O 5V |
37,289 |
|
Datasheet |
|
S3 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 167 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-05-CMRELAY REED C/O 5V |
30,717 |
|
Datasheet |
|
S3 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 167 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-12-CRELAY REED C/O 12V |
31,719 |
|
Datasheet |
|
S3 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 66.7 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S3-24-CMRELAY REED C/O 24V |
16,443 |
|
Datasheet |
|
S3 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 120VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
3502-05-811RELAY REED DPST 500MA 5V |
17,060 |
|
Datasheet |
|
3500 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
S1-12-2ADRELAY REED TWIN N/O 1.5KV 12V |
25,969 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-2AMRELAY REED TWIN N/O 1.5KV 24V |
28,667 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-2AMRELAY REED TWIN N/O 1.5KV 12V |
15,428 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-05-2AMRELAY REED TWIN N/O 1.5KV 5V |
21,141 |
|
Datasheet |
|
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
