Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7104-24-1100RELAY REED 4PST 500MA 24V |
19,138 |
|
Datasheet |
 |
7000 | Tube | Active | Through Hole | 24VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
2971-05-00RELAY REED SPDT 250MA 5V |
49,787 |
|
Datasheet |
|
2970 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 1 ms | 2 ms | -40°C ~ 125°C | - |
|

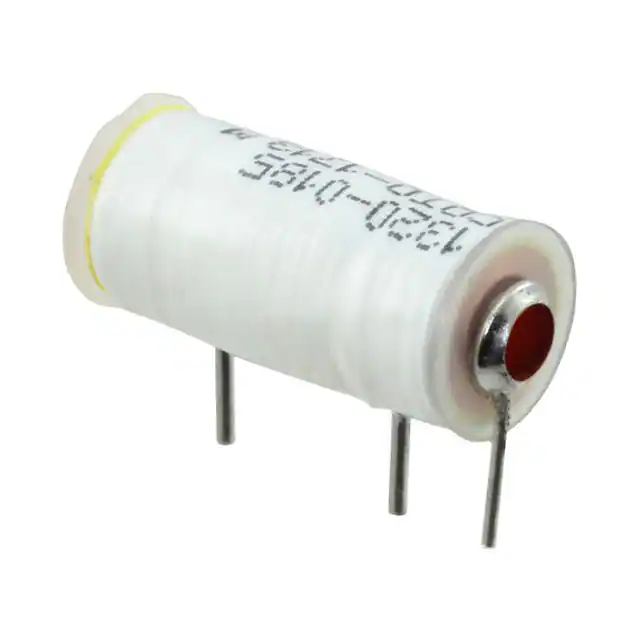

1320-0185RELAY REED |
21,517 |
|
Datasheet |
|
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2342-12-000RELAY REED DPDT 250MA 12V |
28,226 |
|
Datasheet |
|
2300 | Tray | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C | - |
|

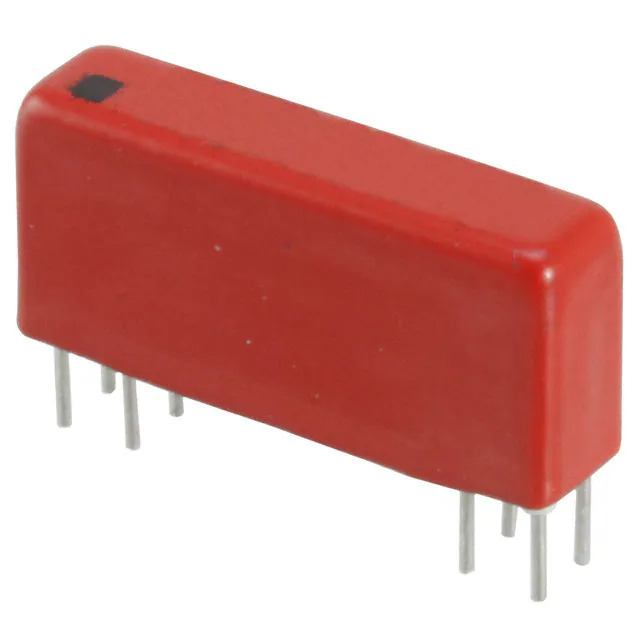

2372-05-000RELAY REED DPDT 250MA 5V |
26,577 |
|
Datasheet |
|
2370 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 1.5 ms | 2 ms | -40°C ~ 125°C | - |
|

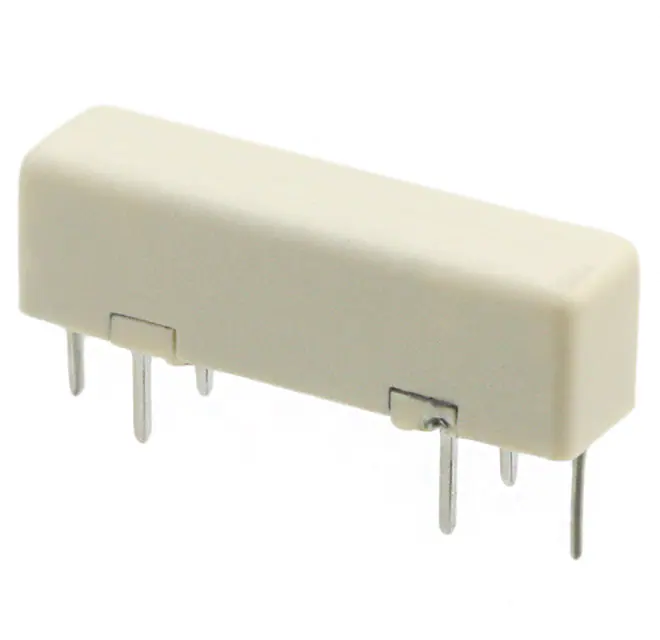

SAR92403RELAY REED SPST 500MA 24V |
38,210 |
|
Datasheet |
|
S | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 20 VDC | 2 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

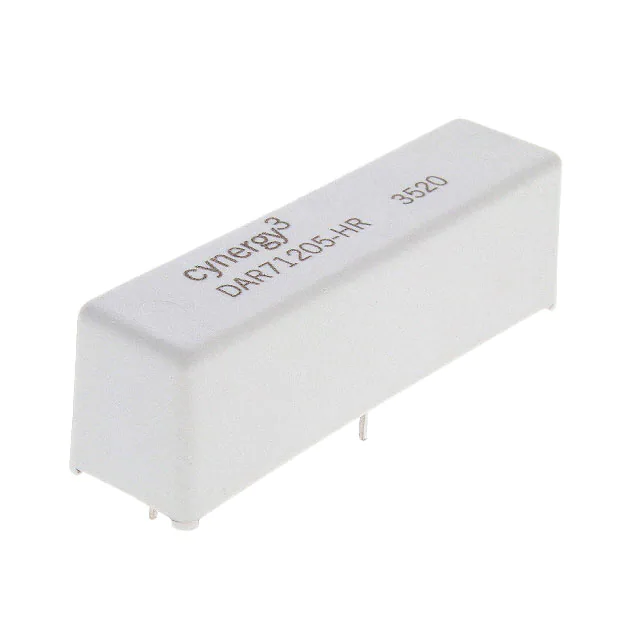

DAR71205-HRRELAY REED 5KV 12V SPST-NO |
21,316 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
SAR91205RELAY REED SPST 500MA 12V |
21,953 |
|
Datasheet |
|
S | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

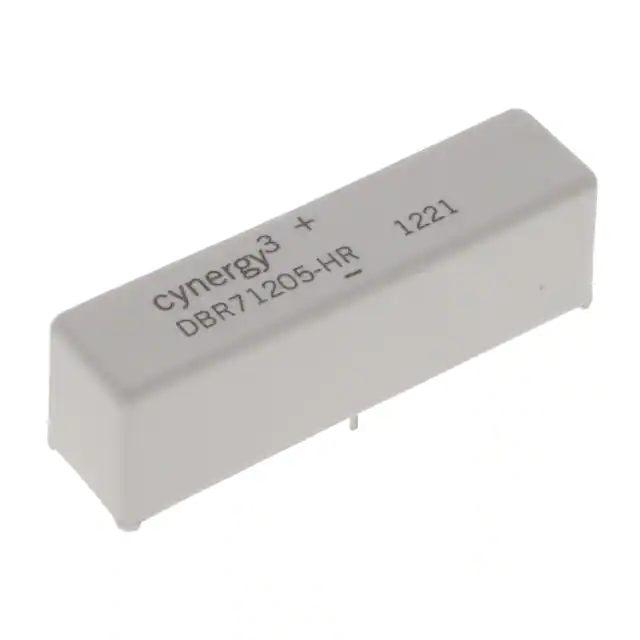

DBR71205-HRRELAY REED 5KV 12V SPST-NC |
35,816 |
|
Datasheet |
|
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR72410RELAY REED SPST-NO 3A 24V |
23,221 |
|
Datasheet |
|
DA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

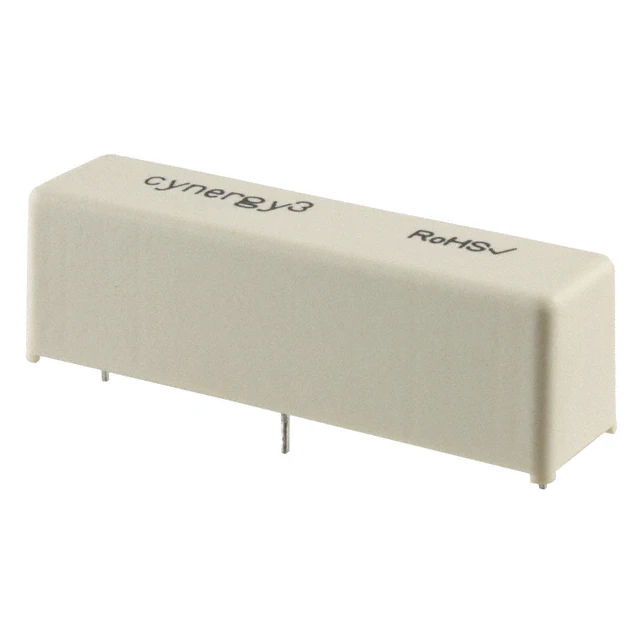

DAR71210RELAY REED SPST-NO 3A 12V |
38,658 |
|
Datasheet |
|
DA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
3351-1275-126RELAY REED HV SPST 50W 3A 12V |
33,623 |
|
Datasheet |
|
3350 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
|
3351-1275-246RELAY REED HV SPST 50W 3A 24V |
42,145 |
|
Datasheet |
|
3350 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
DAT71210RELAY REED SPST-NO 2A 12V |
19,851 |
|
Datasheet |
|
DA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72410RELAY REED SPST-NO 2A 24V |
42,825 |
|
Datasheet |
|
DA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70510RELAY REED SPST-NO 2A 5V |
24,567 |
|
Datasheet |
|
DA | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
3350-1275-126RELAY REED HV SPST 200W 3A 12V |
24,363 |
|
Datasheet |
|
3350 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 3500VAC, 3500VDC - Max | 68.6 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|

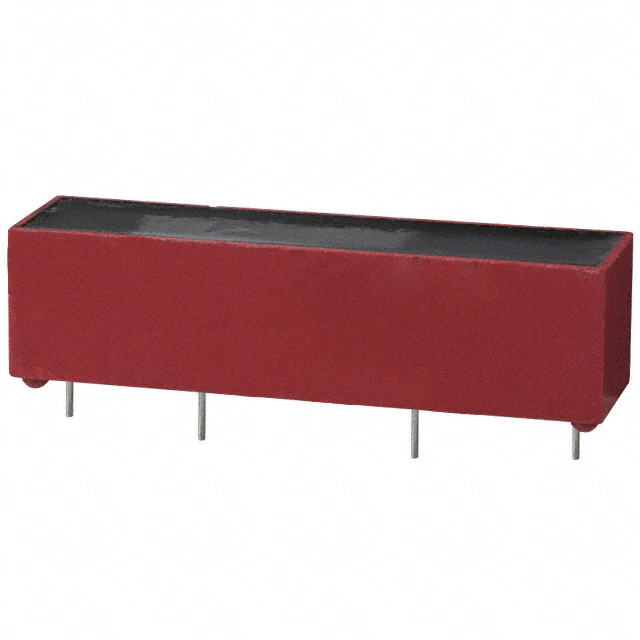

5501-24-1RELAY REED SPST 3A 24V |
38,115 |
|
Datasheet |
|
5500 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|

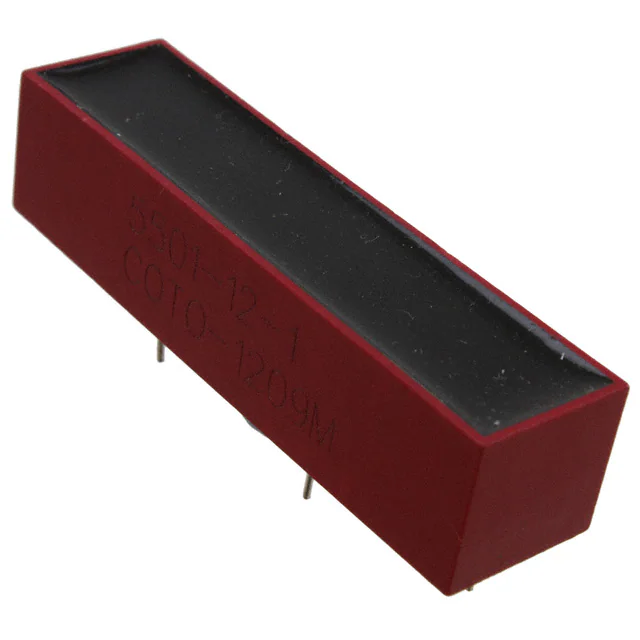

5501-12-1RELAY REED SPST 3A 12V |
27,483 |
|
Datasheet |
|
5500 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 68.6 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
|
5501-05-1RELAY REED SPST 3A 5V |
13,071 |
|
Datasheet |
|
5500 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 125 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
