Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300-5069RELAY REED DPDT 250MA 5V Coto Technology |
14,130 |
|
- |
 |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1240-06-2104RELAY REED SPST 6V NSTD Coto Technology |
32,531 |
|
Datasheet |
|
1240 | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 4.5 VDC | 0.5 VDC | 1 ms | 100 µs | -20°C ~ 85°C | - |
|
7101-24-1000RELAY REED SPST 500MA 24V Coto Technology |
45,499 |
|
Datasheet |
|
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7141-24-1100RELAY REED SPDT 250MA 24V Coto Technology |
47,752 |
|
Datasheet |
|
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 5.7 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|

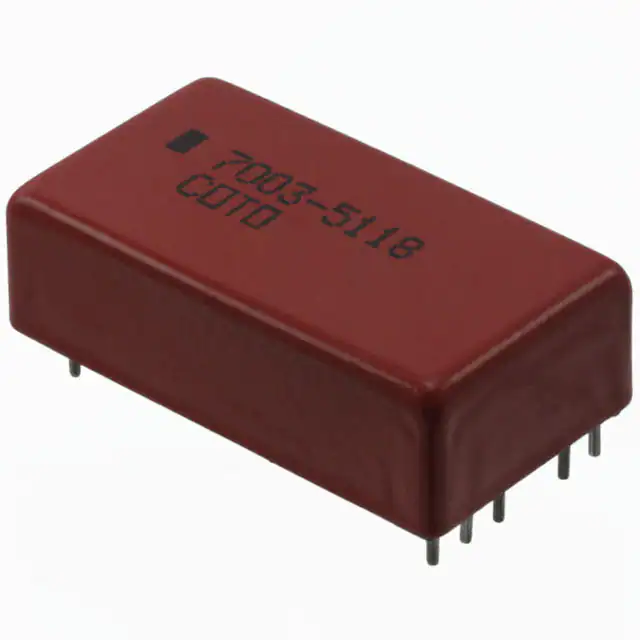

7003-5118RELAY REED 3PST 500MA 5V Coto Technology |
11,270 |
|
Datasheet |
|
7000 | Tube | Obsolete | Through Hole | 5VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | - | - |
|
2377-05-020RELAY REED DPST 500MA 5V Coto Technology |
35,249 |
|
Datasheet |
|
2370 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -40°C ~ 125°C | - |
|
5503-24-1RELAY REED SPST 3A 24V Coto Technology |
29,663 |
|
Datasheet |
|
5500 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 3500VAC, 3500VDC - Max | 41.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 3 ms | -20°C ~ 85°C | - |
|
2911-12-311RELAY REED SPDT 250MA 12V Coto Technology |
38,289 |
|
Datasheet |
|
2900 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
7301-05-1000RELAY REED SPST 500MA 5V Coto Technology |
36,271 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
3602-05-52RELAY REED DPST 250MA 5V Coto Technology |
42,082 |
|
Datasheet |
|
3600 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.75 ms | 0.1 ms | -20°C ~ 85°C | - |
