Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8L61-12-111RELAY REED SPDT 250MA 12V Coto Technology |
40,619 |
|
Datasheet |
 |
8L | Bulk | Active | Surface Mount | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | J Lead | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
9092-12-11RELAY REED DPST 500MA 12V Coto Technology |
13,790 |
|
Datasheet |
|
9092 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 16 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.75 ms | 0.5 ms | -20°C ~ 85°C | - |
|

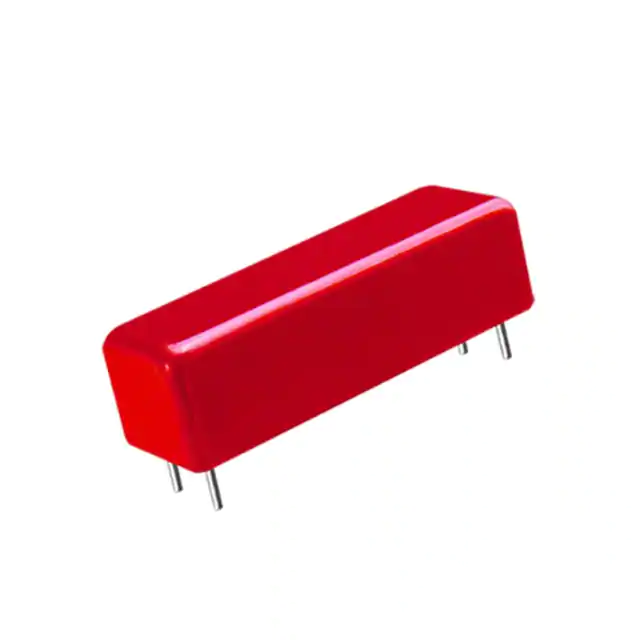

7101-12-1100RELAY REED SPST 500MA 12V Coto Technology |
34,102 |
|
Datasheet |
|
7000 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
2204-12-311RELAY REED SPST 500MA 12V Coto Technology |
29,224 |
|
Datasheet |
|
2200 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
2200-2301RELAY REED SPST 500MA 5V Coto Technology |
33,817 |
|
Datasheet |
|
2200 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 150VAC, 150VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.6 VDC | 0.5 VDC | 0.55 ms | 0.1 ms | -20°C ~ 85°C | - |
|
2332-05-010RELAY REED DPST 500MA 5V Coto Technology |
31,411 |
|
Datasheet |
|
2300 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | - |
|
2271-12-001RELAY REED SPDT 250MA 12V Coto Technology |
45,604 |
|
Datasheet |
|
2270 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -20°C ~ 125°C | - |
|
2333-12-000RELAY REED 3PST 500MA 12V Coto Technology |
43,785 |
|
Datasheet |
|
2300 | Tray | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | - |
|
2911-05-311RELAY REED SPDT 250MA 5V Coto Technology |
32,112 |
|
Datasheet |
|
2900 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -20°C ~ 85°C | - |
|
4031-12-3001RELAY COTO STANDARD CD REV.00 BO Coto Technology |
29,702 |
|
Datasheet |
|
- | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 6.7 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.5 ms | -20°C ~ 80°C | - |
