Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

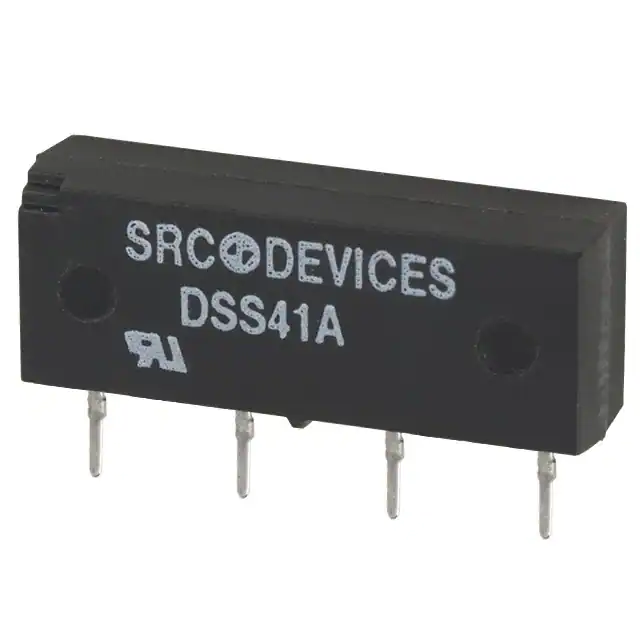

DSS41A05BRELAY REED SPST 500MA 5V |
41,449 |
|
Datasheet |
 |
DSS4 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A12RELAY REED SPST 500MA 12V |
25,047 |
|
Datasheet |
|
DSS4 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8.6 VDC | 1.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A12BRELAY REED SPST 500MA 12V |
30,891 |
|
Datasheet |
|
DSS4 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8.6 VDC | 1.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A24RELAY REED SPST 500MA 24V |
29,315 |
|
Datasheet |
|
DSS4 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 17.5 VDC | 2.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
|
DSS41A24BRELAY REED SPST 500MA 24V |
43,901 |
|
Datasheet |
|
DSS4 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 17.5 VDC | 2.5 VDC | 0.5 ms | 0.5 ms | -40°C ~ 85°C | - |
|
8001-05-001RELAY REED SPST 500MA 5V |
41,560 |
|
Datasheet |
|
8000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8002-05-10RELAY REED DPST 500MA 5V |
26,096 |
|
Datasheet |
|
8000 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8041-05-001RELAY REED SPDT 250MA 5V |
35,800 |
|
Datasheet |
|
8000 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
8L01-12-101RELAY REED SPST 500MA 12V |
10,712 |
|
Datasheet |
|
8L | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
8L01-24-101RELAY REED SPST 500MA 24V |
16,163 |
|
Datasheet |
|
8L | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
9081-05-00RELAY REED SPST 500MA 5V |
38,679 |
|
Datasheet |
|
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081-12-00RELAY REED SPST 500MA 12V |
14,903 |
|
Datasheet |
|
9000, Spartan | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081-24-00RELAY REED SPST 500MA 24V |
28,481 |
|
Datasheet |
|
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
8501-0005RELAY REED SPDT 24V |
47,697 |
|
- |
|
8500 | Tube | Obsolete | - | 24VDC | SPDT (1 Form C) | - | - | - | Non Latching | - | - | - | - | - | - | - | - | - |
|
MS05-1A71-75LHRRELAY REED SPST 500MA 5V |
23,040 |
|
Datasheet |
|
MS | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 0.5 ms | 0.1 ms | -20°C ~ 65°C | - |
|

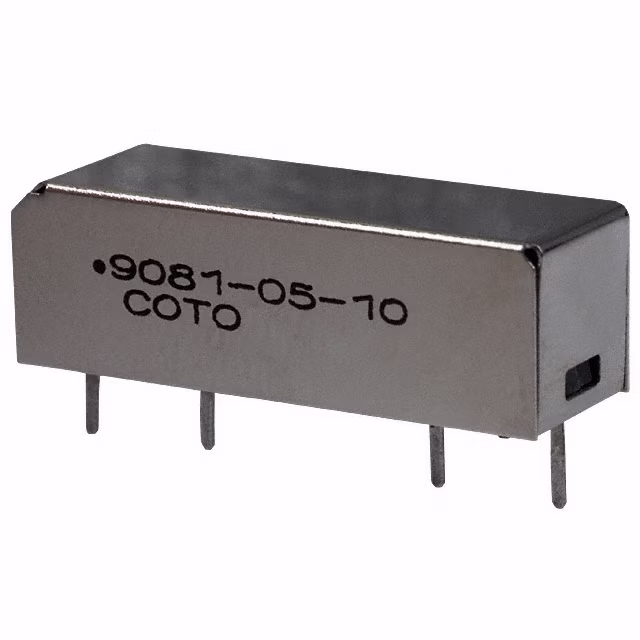

9081-05-10RELAY REED SPST 500MA 5V |
42,112 |
|
Datasheet |
|
9000, Spartan | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9081-24-10RELAY REED SPST 500MA 24V |
11,435 |
|
Datasheet |
|
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
DSS71A05RELAY REED SPST 500MA 5V |
40,841 |
|
Datasheet |
|
DSS7 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.8 VDC | 0.5 ms | 0.5 ms | -40°C ~ 80°C | - |
|
|
HE221A0550RELAY REED SPST 500MA 5V |
39,901 |
|
Datasheet |
|
200 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 35.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.5 VDC | 0.28 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE221A1250RELAY REED SPST 500MA 12V |
26,979 |
|
Datasheet |
|
200 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 14 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 8.4 VDC | 0.7 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
