Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P11P1F0GGSY00104KAPOT 100K OHM 1W CERMET LINEAR |
35,119 |
|
Datasheet |
 |
P11P | Box | Active | 100k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P11P1F0GGSY00102KAPOT 1K OHM 1W CERMET LINEAR |
14,103 |
|
Datasheet |
|
P11P | Box | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±500ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.622" (15.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
14810F0GJSX10102KAPOT 1K OHM 1/2W PLASTIC LINEAR |
35,161 |
|
Datasheet |
|
148 | Box | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Through Hole |
|
|
14810F0GJSX10103KAPOT 10K OHM 1/2W PLASTIC LINEAR |
43,495 |
|
Datasheet |
|
148 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±500ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 1/4-32 | Panel Mount |
|
|
248FGJS0XB25502MAPOT 5K OHM 1/2W PLASTIC LINEAR |
21,991 |
|
Datasheet |
|
248 | Box | Active | 5k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±500ppm/°C | 295° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
P11L1V0FLSY00103KAPOT 10K OHM 1/10W CERMET LINEAR |
49,472 |
|
Datasheet |
|
P11L | Box | Active | 10k | ±10% | 0.1W, 1/10W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P11S1V0FLSY00502KLPOT 5K OHM 1/2W CERMET LOG |
11,385 |
|
Datasheet |
|
P11S | Box | Active | 5k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P11H1F0GHFY00472KAPOT 4.7K OHM 1W CERMET LINEAR |
18,512 |
|
Datasheet |
|
P11H | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NP223MAB15POT 22K OHM 1W CERMET LINEAR |
48,404 |
|
Datasheet |
|
P16 | Bulk | Active | 22k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
PA16NP223MAB15POT 22K OHM 1/2W PLASTIC LINEAR |
16,483 |
|
Datasheet |
|
PA16 | Box | Active | 22k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|
3549S-1AG-502APOT 5K OHM 2W WIREWOUND LINEAR |
47,204 |
|
Datasheet |
|
3549 | Tray | Active | 5k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1501JC8872POT 500 OHM 2W WIREWOUND LINEAR |
16,567 |
|
Datasheet |
|
534 | Box | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
P16NP224KAB15POT 220K OHM 1W CERMET LINEAR |
11,226 |
|
Datasheet |
|
P16 | Box | Active | 220k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP105KAB15POT 1M OHM 1W CERMET LINEAR |
36,432 |
|
Datasheet |
|
P16 | Box | Active | 1M | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
357B2203MAB251S22POT 20K OHM 1W PLASTIC LINEAR |
18,478 |
|
Datasheet |
|
357 | Box | Active | 20k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.866" (22.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PE30L0FR474KABPOT 470K OHM 0.19W CERMET LINEAR |
13,097 |
|
Datasheet |
|
PE30 | Box | Active | 470k | ±10% | 0.19W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

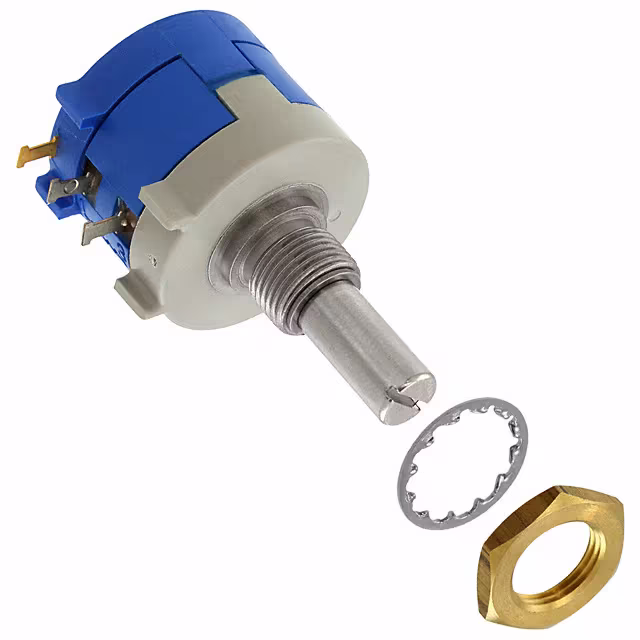

3590S-8-202LPOT 2K OHM 2W WIREWOUND LINEAR |
40,050 |
|
Datasheet |
|
3590 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
14920F0GJSX13502KAPOT 5K OHM 1W CERMET LINEAR |
30,957 |
|
Datasheet |
|
149 | Box | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
2-1625931-7POT 470 OHM 2W CERMET LINEAR |
24,637 |
|
Datasheet |
|
M, Citec | Bulk | Active | 470 | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
P11H1F0GHFW10103MAPOT 10K OHM 1W CERMET LINEAR |
20,312 |
|
Datasheet |
|
P11H | Box | Active | 10k | ±20% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
