Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C46206LFRSWITCH SLIDE DPDT 3A 125V |
3,699 |
|
- |
 |
46200R | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On (Line Voltage Selector) | 3A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | Copper Alloy | - | Through Hole | PC Pin | 115V-230V Marking |
|
|
46204LESWITCH SLIDE DPST 3A 125V |
2,389 |
|
- |
|
46200E | Bulk | Obsolete | DPST | Non-Shorting (BBM) | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper Alloy | - | Panel Mount | Solder Lug | - |
|
|
G-2011-0000SWITCH SLIDE SPST 13A 125V |
4,845 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | 13A (AC) | 125 V | - | Standard | 6.60mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | Black Actuator and Housing |
|
|
G-2011-0004SWITCH SLIDE SPST 13A 125V |
3,061 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | 13A (AC) | 125 V | - | Standard | 10.08mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | White Actuator |
|
|
G-2011-0023SWITCH SLIDE SPST 8A 125V |
4,768 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | 8A (AC) | 125 V | - | Standard | 12.70mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | White Actuator and Housing |
|
|
G-128S-0011SWITCH SLIDE DP3T 500MA 125V |
3,661 |
|
Datasheet |
|
G | Bulk | Active | DP3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
G-2011-0007SWITCH SLIDE SPST |
4,996 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-2011-0027SWITCH SLIDE SPST |
3,003 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-2011-0029SWITCH SLIDE SPST |
4,025 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-2011-0036SWITCH SLIDE SPST |
3,115 |
|
Datasheet |
|
2000 | Bulk | Active | SPST | Not Specified | On-Off | - | - | - | - | - | - | - | - | - | - |
|
|
G-332-0016SWITCH SLIDE SPDT 3A 125V |
4,498 |
|
Datasheet |
|
G | Bulk | Active | SPDT | Not Specified | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 4.78mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
G-332-0023SWITCH SLIDE SPDT 3A 125V |
2,150 |
|
Datasheet |
|
G | Bulk | Active | SPDT | Not Specified | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|

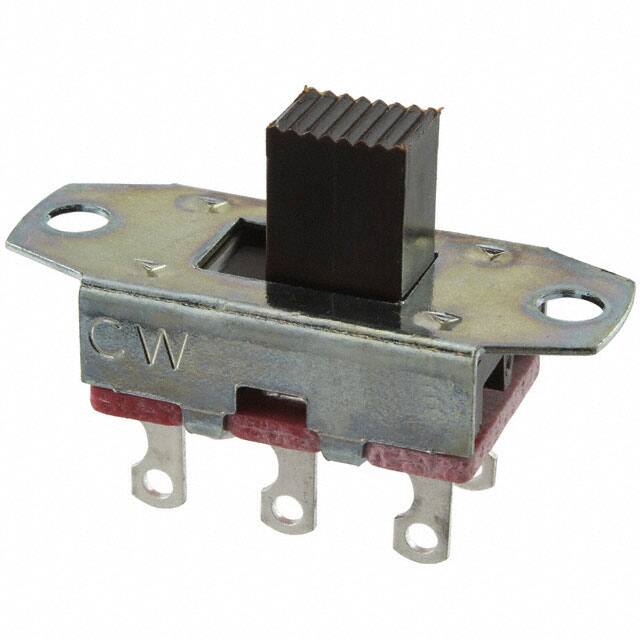

GF-1326-0008SWITCH SLIDE DPDT 13A 125V |
4,252 |
|
Datasheet |
|
GF | Bulk | Active | DPDT | Not Specified | On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
SLSA2201SWITCH SLIDE DPDT 500MA 125V |
3,813 |
|
- |
|
SLSA | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.80mm | Copper Alloy | Silver | Through Hole | Solder Turret | Epoxy Sealed Terminals |
|
|
G-1328S-0019SWITCH SLIDE DP3T 13A 125V |
4,306 |
|
Datasheet |
|
G | Bulk | Active | DP3T | Not Specified | On-On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GS-115-0000SWITCH SLIDE SPDT 500MA 125V |
2,095 |
|
Datasheet |
|
GS | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper Alloy | Silver | Panel Mount | Press-Fit | - |
|
|
MSS2220SWITCH SLIDE DPDT 300MA 125V |
4,553 |
|
- |
|
MSS | Bulk | Obsolete | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 125 V | - | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSS6350SWITCH SLIDE 6P3T 300MA 125V |
2,484 |
|
Datasheet |
|
MSS | Bulk | Obsolete | 6P3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 12.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
G-1328S-0021SWITCH SLIDE DP3T 13A 125V |
2,759 |
|
Datasheet |
|
G | Bulk | Active | DP3T | Not Specified | On-On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 15.88mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
G-386-0020SWITCH SLIDE DP3T 3A 125V |
4,341 |
|
Datasheet |
|
G | Bulk | Active | DP3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 13.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
