Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1420A-PV-600-DSPD TYP 2/TYP 4 700V MCOV 2 POLE |
4,204 |
|
Datasheet |
 |
1420A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 700V | 20 kA | 50 kA | 50 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-3S-230SPD TYP 2/TYP 4 275V MCOV 3 POLE |
4,859 |
|
Datasheet |
|
1250A | Box | Active | Type 2, Type 4 | Base + Module | 3 | 275V | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
RDS1A-6SPD 200V MCOV 1 POLE |
5,680 |
|
Datasheet |
|
- | Box | Active | - | Module Only | 1 | 200V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
|
RDS1B-6SPD 200V MCOV 1 POLE |
4,823 |
|
Datasheet |
|
- | Box | Active | - | Module Only | 1 | 200V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
BSP3-277-20KA-TNSPD 320VAC/420VDC MCOV 3 POLE |
4,077 |
|
Datasheet |
|
BSP3 | Box | Active | - | Module Only | 3 | 320VAC, 420VDC | 20 kA | 20 kA | - | - | - | - | - | Free Hanging | CE, cURus, UL |
|

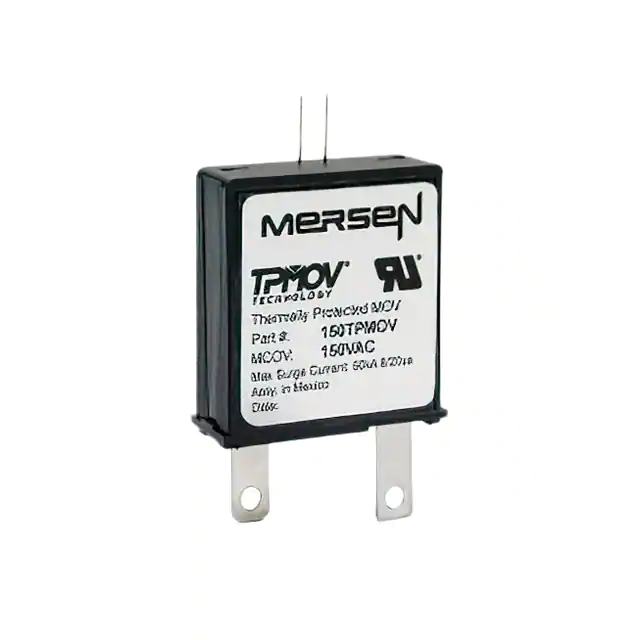

150TPMOVSLSPD TYPE 1 150VAC MCOV 1 POLE |
5,915 |
|
- |
|
- | Box | Active | Type 1 | Module Only | 1 | 150VAC | 20 kA | - | 200 kA | 600 V | - | -40°C ~ 85°C | Thermally Protected | - | cURus, UL |
|
|
ASISP150-1PSPD 150V MCOV 1 POLE |
5,341 |
|
Datasheet |
|
- | Retail Package | Active | - | Base + Module | 1 | 150V | 20 kA | 50 kA | 200 kA | 700 V | - | -40°C ~ 80°C | - | DIN Rail | CE, cURus |
|
|
ASISP150-PNSPD 150VAC MCOV 1 POLE |
5,962 |
|
Datasheet |
|
SP | Retail Package | Active | - | Base + Module | 1 | 150VAC | 20 kA | 50 kA | 200 kA | - | - | -40°C ~ 80°C | Thermally Protected | DIN Rail | CE, cURus |
|
|
ASISP150-2PSPD 150V MCOV 2 POLE |
4,783 |
|
Datasheet |
|
- | Retail Package | Active | - | Base + Module | 2 | 150V | 20 kA | 50 kA | 200 kA | 1.5 kV | - | -40°C ~ 80°C | - | DIN Rail | CE, cURus |
|
TFYR-100.5-30SPD 600VAC MCOV 1 POLE |
3,032 |
|
Datasheet |
|
- | Box | Active | - | Module Only | 1 | 600VAC | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus, UL |
|

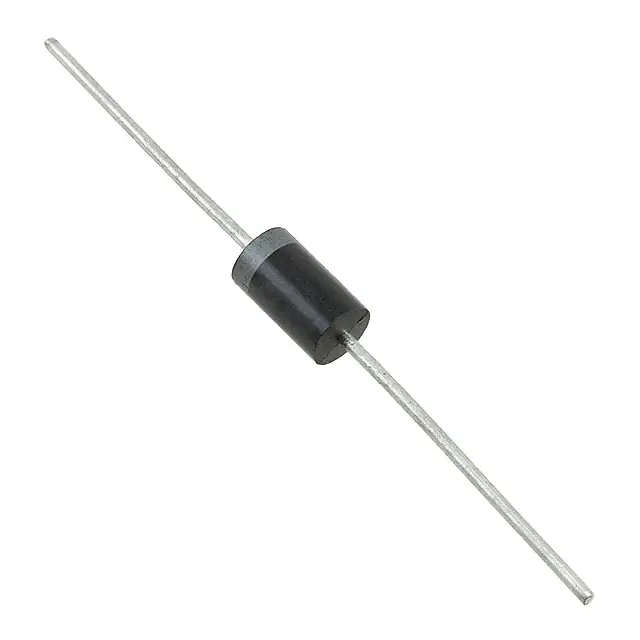

STRVS280X02FSPD |
3,813 |
|
Datasheet |
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FODEKOV05M510Onboard Surge Protection Module |
3,967 |
|
- |
|
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 510VAC | 5 kA | 5 kA | - | - | 2 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M150Onboard Surge Protection Module |
5,397 |
|
- |
|
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 150VAC | 5 kA | 10 kA | - | - | 800 V | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M420Onboard Surge Protection Module |
3,083 |
|
- |
|
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 420VAC | 5 kA | 10 kA | - | - | 1.5 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M320Onboard Surge Protection Module |
5,228 |
|
- |
|
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 320VAC | 5 kA | 10 kA | - | - | 1.2 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M275Onboard Surge Protection Module |
4,889 |
|
- |
|
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 275VAC | 5 kA | 10 kA | - | - | 1 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV05M550Onboard Surge Protection Module |
5,760 |
|
- |
|
KOV05M | Bulk | Active | Surge Protection Module | Module Only | 1 | 550VAC | 5 kA | 10 kA | - | - | 2.5 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV10M150Onboard Surge Protection Module |
5,134 |
|
- |
|
KOV10M | Bulk | Active | Type 2 | Module Only | 1 | 150VAC | 10 kA | 20 kA | - | - | 800 V | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV10M550Onboard Surge Protection Module |
5,389 |
|
- |
|
KOV10M | Bulk | Active | Type 2 | Module Only | 1 | 550VAC | 10 kA | 20 kA | - | - | 2.5 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
|
|
FODEKOV10M420Onboard Surge Protection Module |
5,542 |
|
- |
|
KOV10M | Bulk | Active | Type 2 | Module Only | 1 | 420VAC | 10 kA | 20 kA | - | - | 1.8 kV | -40°C ~ 85°C | Thermally Protected | PCB Mount | CE, TUV |
