Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | RoHs | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1260-4S-120SPD 150VAC MCOV 4 POLE |
3,657 |
|
Datasheet |
 |
1260 | Box | Active | - | Base + Module | 4 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4S-230SPD 275VAC MCOV 4 POLE |
5,479 |
|
Datasheet |
|
1260 | Box | Active | - | Base + Module | 4 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4S-127SPD 180VAC MCOV 4 POLE |
4,422 |
|
Datasheet |
|
1260 | Box | Active | - | Base + Module | 4 | 180VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4S-277SPD 350VAC MCOV 4 POLE |
5,676 |
|
Datasheet |
|
1260 | Box | Active | - | Base + Module | 4 | 350VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPH4275TTRSPD TYPE 2 275VAC MCOV 4 POLE |
3,112 |
|
- |
|
BSPH | Bulk | Obsolete | Type 2 | Base + Module | 4 | 275VAC | 20 kA | 40 kA | 50 kA | - | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, KEMA |
|
|
1250A-4S-120SPD TYP 2/TYP 4 150V MCOV 4 POLE |
4,533 |
|
Datasheet |
|
1250A | Box | Active | Type 2, Type 4 | Base + Module | 4 | 150V | 20 kA | 50 kA | 200 kA | 700 V | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-4S-230SPD TYP 2/TYP 4 275V MCOV 4 POLE |
4,327 |
|
Datasheet |
|
1250A | Box | Active | Type 2, Type 4 | Base + Module | 4 | 275V | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1250A-4S-277SPD TYP 2/TYP 4 320V MCOV 4 POLE |
5,037 |
|
Datasheet |
|
1250A | Box | Active | Type 2, Type 4 | Base + Module | 4 | 320V | 20 kA | 50 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
SSP030SSE10HCSPD 1 POLE |
3,205 |
|
Datasheet |
|
- | Box | Active | - | Module Only | 1 | - | 20 kA | - | 200 kA | - | - | - | - | DIN Rail | - |
|
|
BSPM3240DLGSPD TYPE 2 550VAC MCOV 3 POLE |
3,914 |
|
Datasheet |
|
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 3 | 550VAC | 20 kA | 40 kA | 200 kA | 1.8 kV | - | - | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL |
|
|
BSPM3480DLGSPD TYPE 2 1.2KVAC MCOV 3 POLE |
3,954 |
|
Datasheet |
|
BSPM | Bulk | Obsolete | Type 2 | Base + Module | 3 | 1.2kVAC | 20 kA | 40 kA | 200 kA | 4 kV | - | - | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL |
|
1210-3S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
5,028 |
|
Datasheet |
|
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 3 | 275VAC | 20 kA | 100 kA | 100 kA | 900 V | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|

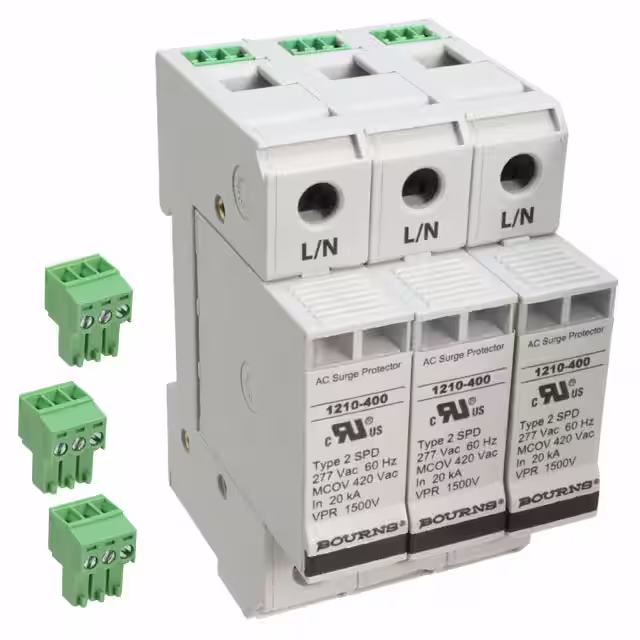

1210-3S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
4,278 |
|
Datasheet |
|
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 3 | 420VAC | 20 kA | 100 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|

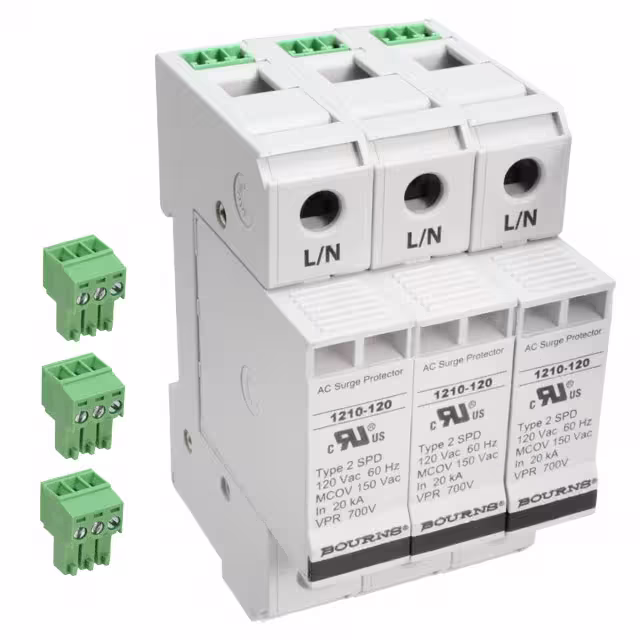

1210-3S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
3,306 |
|
Datasheet |
|
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 3 | 150VAC | 20 kA | 100 kA | 100 kA | 600 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
|
M9L43600SPD TYPE 1 840VAC MCOV 3 POLE |
3,698 |
|
Datasheet |
|
- | Box | Active | Type 1 | Base + Module | 3 | 840VAC | 10 kA | 75 kA | 200 kA | - | 2.5 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
|
M9L53690SPD TYPE 1 1.1KVAC MCOV 1 POLE |
5,572 |
|
Datasheet |
|
- | Box | Active | Type 1 | Base + Module | 1 | 1.1kVAC | 10 kA | 75 kA | - | - | 3 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
|
AGDN48040RSPD TYPE 1 550VAC MCOV 4 POLE |
4,765 |
|
Datasheet |
|
- | Bulk | Active | Type 1 | Base + Module | 4 | 550VAC | 20 kA | - | 200 kA | 2 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
AGDN40040RSPD TYPE 1 480VAC MCOV 4 POLE |
4,107 |
|
Datasheet |
|
- | Bulk | Active | Type 1 | Base + Module | 4 | 480VAC | 20 kA | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
2801218SPD 10VAC/15VDC MCOV 1 POLE |
3,243 |
|
Datasheet |
|
PT | Bulk | Obsolete | - | Base + Module | 1 | 10VAC, 15VDC | 10 kA | 20 kA | - | - | 950 V | -40°C ~ 80°C | - | DIN Rail | - |
|
SPD2-075-1P0-RSPD TYP 1/TYP 2 75VAC MCOV 1POLE |
3,895 |
|
Datasheet |
|
SPD2 1P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 75VAC | 20 kA | 50 kA | 100 kA | 330 V | 800 V | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
