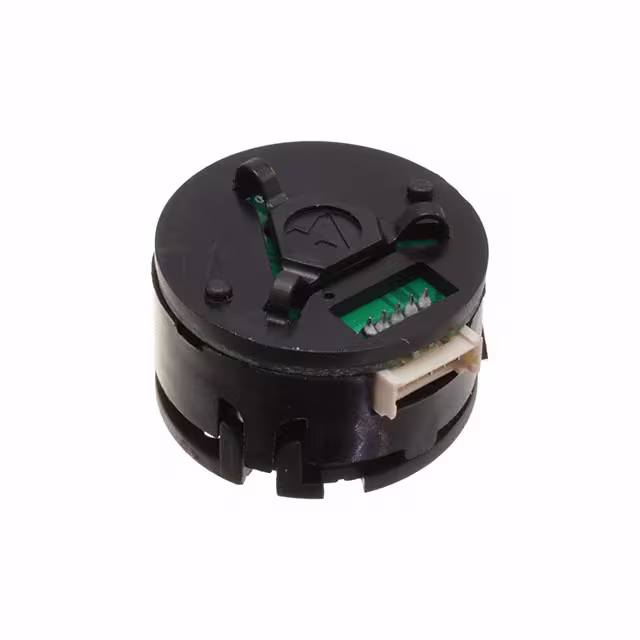

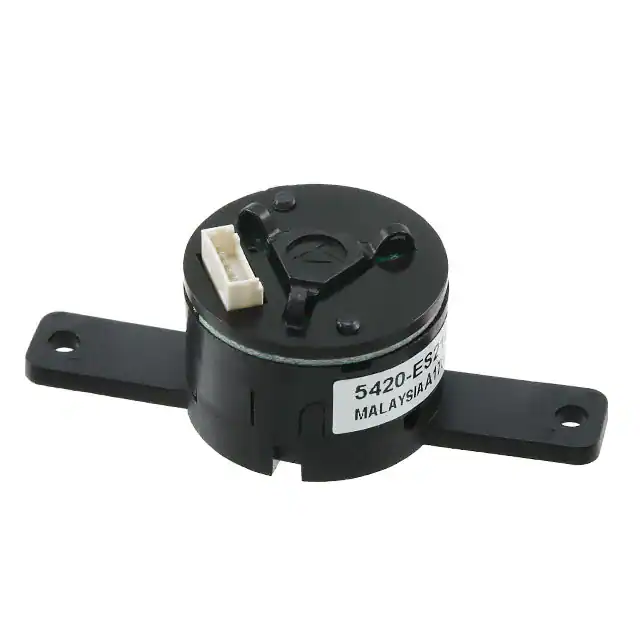

Broadcom Limited HEDR-55L2-BH01
ROTARY ENCODER OPTICAL 2048PPR
Manufacturer: Broadcom Limited
Part number: HEDR-55L2-BH01
Package:
RFQ verification required
Key Parameters
| Part Number | HEDR-55L2-BH01 |
|---|---|
| Manufacturer | Broadcom Limited |
| Category | Encoders |
| series | HEDR |
| packaging | Bulk |
| product status | Obsolete |
| param 1 | Not Verified |
| param 2 | Optical |
| param 3 | Quadrature with Index (Incremental) |
| param 4 | 2048 |
| param 5 | 4.5V ~ 5.5V |
| param 6 | 3mm Open Center |
| param 7 | No |
| param 8 | No |
| param 9 | Chassis Mount, Motors |
| param 10 | - |
| param 11 | Terminal Pins |
| param 12 | - |
| param 13 | - |
| param 14 | - |
Parameters are provided for purchasing review. Confirm package, suffix, lifecycle status, datasheet revision and approved substitutes before ordering.
Procurement Notes
For HEDR-55L2-BH01, SENICO recommends checking manufacturer marking, package, date code, requested quantity, approved vendor requirements and any replacement risk before issuing a purchase order.
We do not treat displayed data as a real-time stock or price commitment. The RFQ reply is the verified commercial reference.
